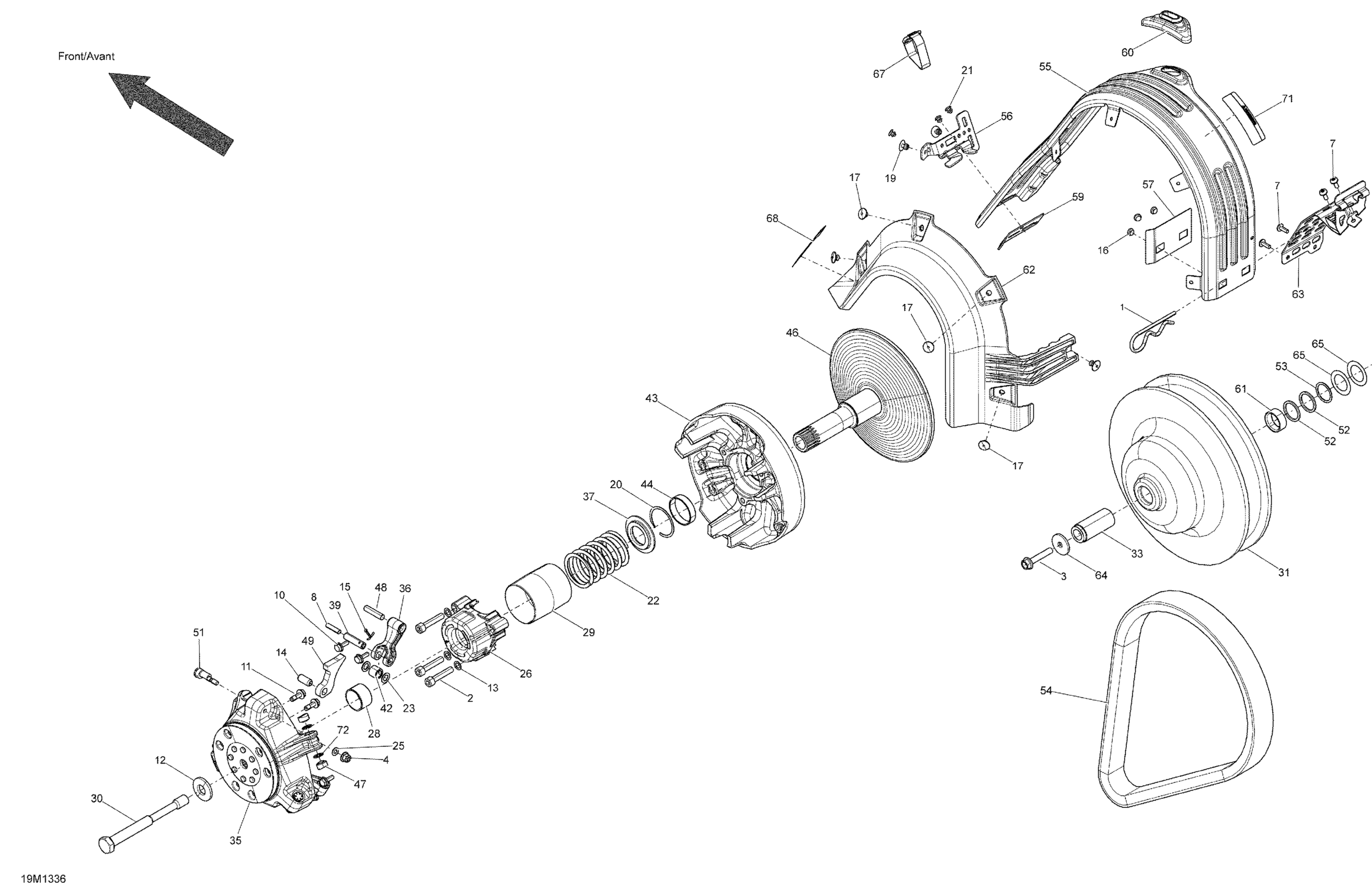

Ski-Doo MXZ X 600RS XP, 2013 Pulley System Diagram

#

Description
Price

1

Hair Pin

114045200

Unavailable

2

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

3

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Torx Screw M5 X 14

250000742

$1.20

8

Screw Socket Set DIN.913 S.Grip

250000408

Unavailable

10

Serrated Hex. Flange Bolt M6

250000416

$4.12

11

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

12

Spring Washer 14 mm

250200006

Unavailable

13

Lock Washer 8 mm

250200009

Unavailable

14

Spring Pin M10 X 22

250400050

$2.38

15

Cotter Pin

250400060

$1.60

16

Henrob Rivet

293150091

Unavailable

17

Pop Rivet 3/16"

293150103

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

20

Circlip

293370037

$3.02

21

Avex Rivet

390909200

Unavailable

22

Clutch Spring

414689800

$43.05

22

Racing Spring

417223610

Unavailable

23

Stopper Washer

417004302

$15.99

25

Washer

417005600

$3.86

26

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

28

Bushing

417009204

$16.12

29

Guard

417009205

$16.89

30

Drive Pulley Bolt

417120000

$63.82

31

DRIVEN PULLEY (RAPID REACTION) - Call your local BRP dealership

417127291

Unavailable

33

Bushing

417127300

$63.99

35

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223366

Unavailable

36

Lever | Includes 10f to 10g

417222671

$32.28

37

Spring Seat

417222312

$8.28

39

Threaded Pin, M6 | High Altitude

417222595

$22.28

42

Roller

417222947

$19.97

43

Sliding Flange Ass'y

417222971

Unavailable

44

Bushing

417222758

$20.74

46

FIXED FLANGE ASS'Y - Call your local BRP dealership

417223012

Unavailable

47

Slider Shoe This part replaces 420460045.

417223021

$6.09

48

Lever Axle

417223164

$4.25

49

RAMP 443 - Call your local BRP dealership

417223281

Unavailable

51

Calibration Screw

417223501

$27.66

52

Spacer

417300252

$5.17

53

Spacer

417300265

$2.12

54

Drive Belt

417300534

$239.97

55

BELT GUARD ASS'Y KIT - Call your local BRP dealership

860200362

Unavailable

56

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

Unavailable

57

PLATE - Call your local BRP dealership

417300372

Unavailable

59

Reinforcement

417300380

$5.17

60

Guide

417300381

$9.23

61

Spacer

417300399

$16.12

62

CVT AIR DUCT - Call your local BRP dealership

417300501

Unavailable

63

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

64

Washer

503183100

$3.08

65

Shim

504112000

$6.05

67

Velcro Strip

508000599

Unavailable

68

Decal English

516005503

Unavailable

71

Safety Belt Guard Decal

516005509

Unavailable

72

O-Ring

732401030

$0.95
