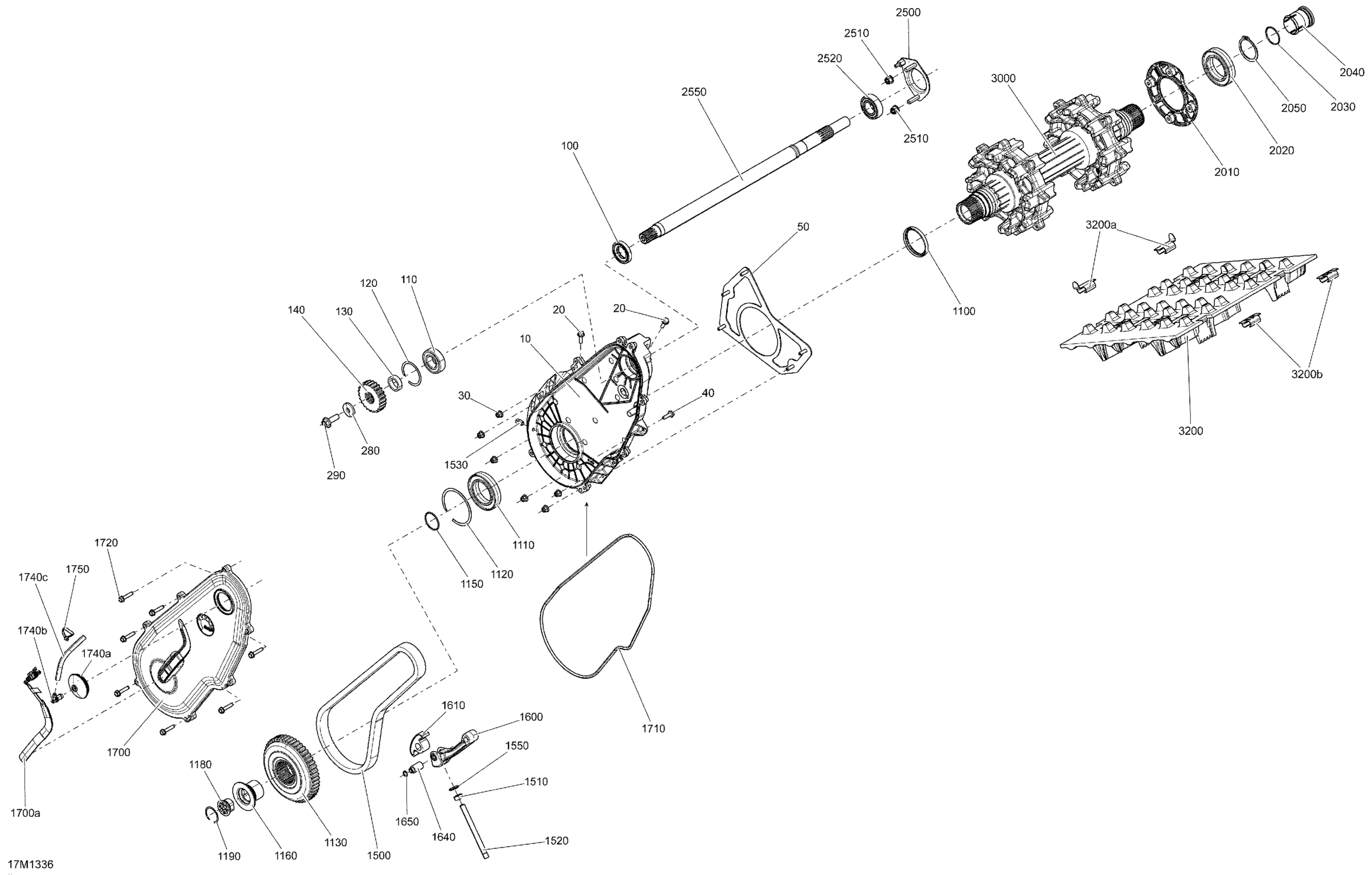

Ski-Doo MXZ X 600RS XP, 2013 Drive System Diagram

#

Description
Price

10

Chaincase | Includes 10 to 10a

504153405

$321.51

20

Hex. Flange Screw M6 X 20

207662034

$1.74

30

Flange Elastic Nut M6

233261434

$3.61

40

Hex. Flange Screw M6 X 20

207662034

$1.74

50

Plate | Not Shown

518325816

$73.82

100

Oil Seal

293200168

$13.65

110

Ball Bearing

293350115

$11.15

120

Circlip

504152576

$8.71

130

Shim

504152628

$8.40

140

Sprocket, 19 Teeth

504153783

$109.20

280

Spring Washer M10

504152784

$6.26

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

1100

Oil Seal

293200159

$13.12

1110

Ball Bearing

293350059

$30.74

1120

Circlip

504152582

$8.71

1130

SPROCKET_49 TEETH ASSY - Call your local BRP dealership

504153598

Unavailable

1150

O-Ring

293300122

$2.06

1160

THREADED CAP - Call your local BRP dealership

504152802

$73.05

1180

Magnetic Adaptor

504152794

$46.12

1190

Circlip

293370052

$4.71

1500

Drive Chain, 104 Links

504152629

$173.82

1510

Hex. Nut M10 X 1.5

232006414

$1.11

1520

Adjustment Screw

504152602

$9.62

1530

Magnetic Plug 1/8 - 27 NPTF

504152854

$8.95

1550

Bonded Washer

250200100

$1.74

1600

Tensioner chain

504153429

$13.77

1610

Slider Chain

504152739

$67.66

1640

Tensioner Axle

504152841

$14.65

1650

Circlip

504152282

$3.11

1700

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$324.58

1700a

Rotation Sensor

504152896

$35.35

1710

Tight Seal

293300130

$7.31

1720

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

1740a

Cap

504152860

$19.20

1740b

Male Connector

414580700

$3.38

1740c

Polyurethane Hose 10000Mm Long

219704410

$46.12

1750

Tie-Rap 180 mm

414115200

$0.09

2010

Retaining Ring

504153886

$18.43

2020

Ball Bearing

293350059

$30.74

2030

O-Ring

293300122

$2.06

2040

Magnetic Cap

504152619

$23.05

2050

Circlip

504152572

$6.26

2500

Bearing Housing

504153185

$28.43

2510

Hex. Flange Elastic Nut M8

233281414

$1.14

2520

Ball Bearing

293350074

$38.49

2550

COUNTERSHAFT - Call your local BRP dealership

504153166

$346.12

3000

Drive Axle Ass'y

504153084

$396.89

3200

TRACK ASS'Y, 15'' X 120'' X 1.75'' - Call your local BRP dealership | Includes 3200 to 3200b

504152981

Unavailable

3200a

Track Guide | Track Width 16''

415129528

$3.12

3200b

Cleat

504152651

$8.22
