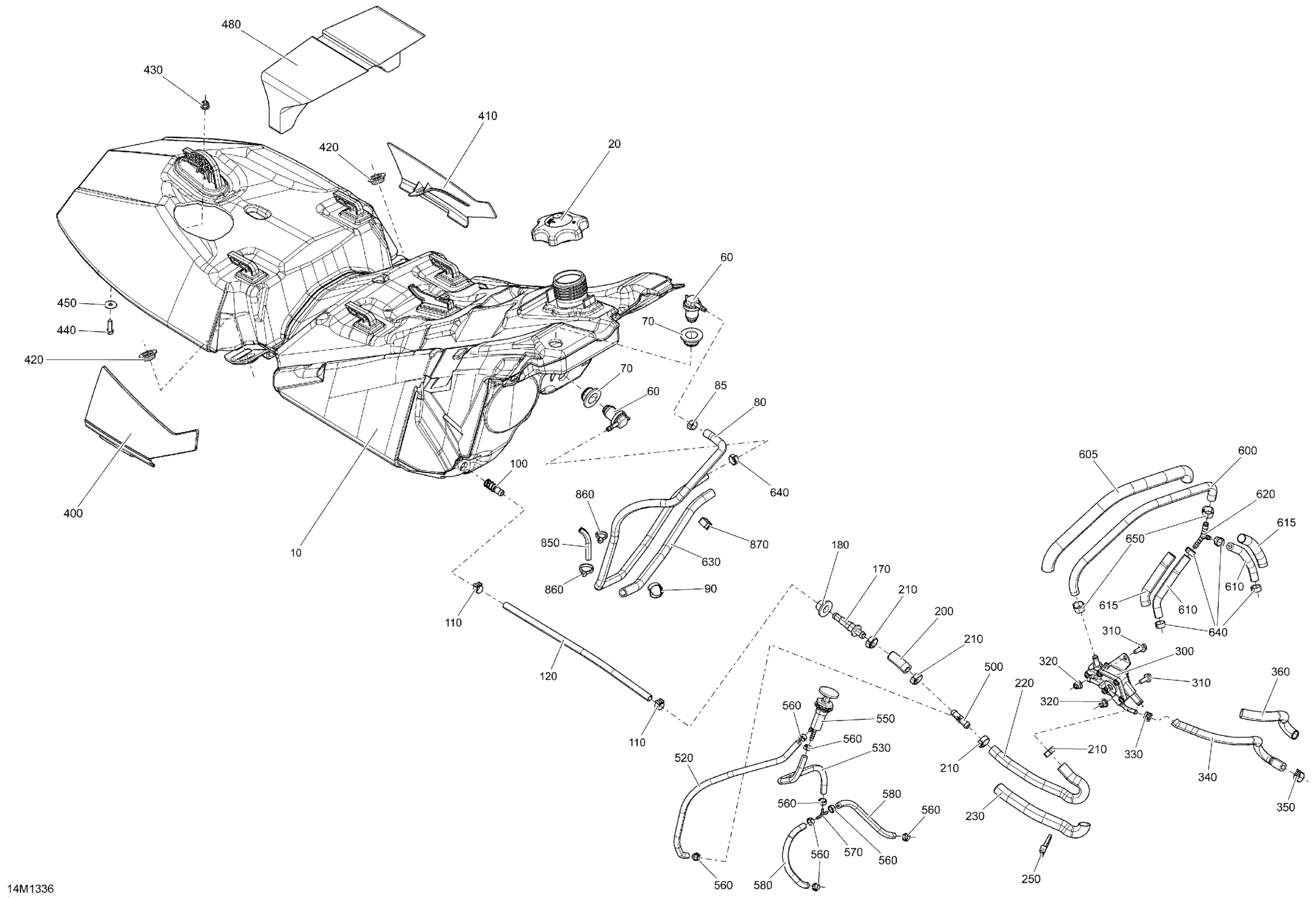

Ski-Doo MXZ X 600RS XP, 2013 Fuel System Diagram

#

Description
Price

10

FUEL TANK - Call your local BRP dealership

513033697

Unavailable

20

Fuel Tank Cap

513033752

$56.12

60

Remote Vent

513033859

$18.43

70

Grommet

513033596

$18.43

80

Hose

513033565

$29.20

85

Oetiker Gear Clamp

293650025

$2.46

90

Tie-Rap 180 mm

414115200

$0.09

100

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

110

Norma Spring Clamp

513033010

$8.68

120

Polyurethane Hose 1000Mm Long

219704391

Unavailable

170

Male Connector

414872700

$1.86

180

Grommet

513033435

$3.73

200

HOSE 9.53MM ID - 40MM - Call your local BRP dealership

513033444

Unavailable

210

Crimp Clamp

293650053

$2.42

220

FORMED HOSE - Call your local BRP dealership

513033439

Unavailable

230

Tubing 16 Mm 1000Mm Long

219704408

$6.23

250

Tie-Rap 180 mm

414115200

$0.09

300

Fuel Pump

513033669

$82.28

310

Hex. Flange Screw M6 X 16

207661644

$0.61

320

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

330

Spring Clamp

414415200

$0.83

340

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

350

Universal Spring Clamp

513033029

$5.11

360

Was 409901800 Tubing (13 mm)

219704400

$9.40

400

RH Cap

513033418

$12.62

410

LH Cap

513033419

$12.62

420

Shoulder Bushing

513033326

$12.62

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

440

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

450

Flat Washer

224060201

$1.15

480

FOAM - Call your local BRP dealership

513033528

Unavailable

500

T-Fitting

415119300

$3.11

520

HOSE - Call your local BRP dealership

709000665

Unavailable

530

HOSE - Call your local BRP dealership

709000665

Unavailable

550

Primer

513033441

$33.05

560

Oetiker Gear Clamp

293650043

$2.70

570

T-Fitting

414222400

$1.33

580

HOSE - Call your local BRP dealership

709000665

Unavailable

600

Hose 3000Mm Long

219704612

$79.97

605

Tubing 16 Mm 1000Mm Long

219704408

$6.23

610

Hose

513033565

$29.20

615

Was 409901800 Tubing (13 mm)

219704400

$9.40

620

Y Connector | CARB

513033672

$1.06

630

Was 409901800 Tubing (13 mm)

219704400

$9.40

640

Oetiker Gear Clamp

293650025

$2.46

650

Oetiker Clamp

293650125

$2.69

850

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

860

Tie Wrap 142 mm

293750002

$0.88

870

Clip

414227300

$1.45
