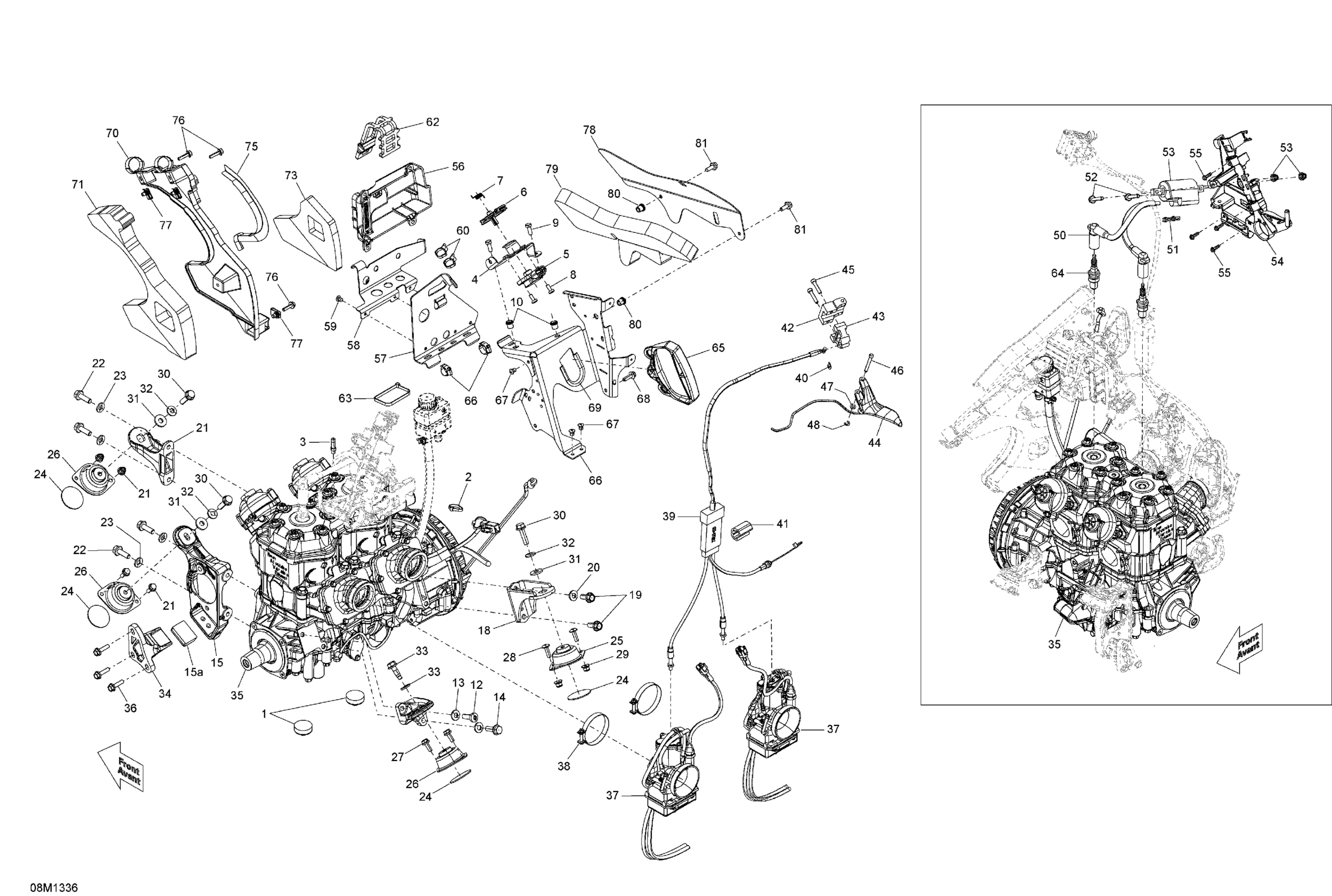

Ski-Doo MXZ X 600RS XP, 2013 Engine And Engine Support Diagram

#

Description
Price

1

Stopper

512059738

Unavailable

2

Tie-Rap 180 mm

414115200

$0.09

3

Hose Nipple

420924724

Unavailable

4

TPS SUPPORT - Call your local BRP dealership

512060336

$24.58

5

Sensor Ass'y

404162079

$359.97

6

CAP CAM - Call your local BRP dealership

512060335

Unavailable

7

CAM SPRING - Call your local BRP dealership

512060638

$15.29

8

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

$0.98

9

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

10

Insert

293450275

Unavailable

11

Rear Support, PTO

512060478

$29.97

12

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

13

Conical Spring Washer M8

250200146

Unavailable

14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

15

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

15a

Stopper

512060766

$9.31

16

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

17

Conical Spring Washer M8

234281474

$1.25

18

REAR ENGINE SUPPORT, MAG - Call your local BRP dealership

512060568

$64.58

19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

20

Conical Spring Washer M8

234281474

$1.25

21

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

$45.35

22

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

23

Conical Spring Washer M8

234281474

$1.25

24

RUBBER WASHER - Call your local BRP dealership

512060410

$8.29

25

Rubber Mount

512060772

Unavailable

26

Rubber Mount

512060385

$56.89

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

28

Hex. Socket Screw M6 X 20

250000770

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

30

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

31

Yellow, Washer

503183200

Unavailable

32

Conical Spring Washer M8

234281474

$1.25

33

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

34

Stopper Support

512060576

$28.43

35

BLOCK-SHORT 593RS - Call your local BRP dealership

420059325

Unavailable

36

Hex. Flange Screw M6 X 25

207562544

$1.39

37

Carburator, TMX38-73

403138816

Unavailable

38

Gemi Clamp

512059835

Unavailable

39

Throttle Cable

512060895

$109.97

40

Circlip

414274500

Unavailable

41

Protector

512060313

$9.31

42

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

43

Lower Housing

512059537

$73.05

44

HANDLE ASS'Y - Call your local BRP dealership

512060431

$72.28

45

Socket Screw M5 X 25

205052544

$1.34

46

Lever Pin

414438700

$11.14

47

Flat Washer M5, Stainless

234051600

$0.64

48

Circlip

293370050

$0.46

49

Ignition Coil

512059968

Unavailable

50

Cable

512060291

Unavailable

51

Plastic Clip, Spark Plug Wire

410914600

Unavailable

52

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

54

COILS SUPPORT - Call your local BRP dealership

512060925

$16.89

55

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

56

Calibrated Module 600RS

512060878

Unavailable

57

ECM SUPPORT - Call your local BRP dealership

512060337

Unavailable

58

TANK SUPPORT - Call your local BRP dealership

512060379

$23.82

59

Avex Rivet

390909200

Unavailable

60

Tie-Rap 180 mm

414115200

$0.09

61

Tridon Gear Clamp

293650172

$2.68

62

LATCH - Call your local BRP dealership

570069700

Unavailable

63

Tie Wrap 368 mm

293750008

$0.85

64

Spark Plug NGK BR9ECS-5

512059552

$9.70

65

Starter Grip

512060136

$14.54

66

GRIP SUPPORT - Call your local BRP dealership

512060770

$74.58

67

Avex Rivet

390909200

Unavailable

68

Hexagonal Head Screw

210262050

$1.74

69

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

70

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

71

Interior Noise Foam

512060343

Unavailable

72

Upper Exterior Noise Foam

512060344

Unavailable

73

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

74

Heat Shield

512060574

Unavailable

75

Heat Shield

512060575

Unavailable

76

Hex.Flange Screw M5 X 20

207652044

$1.56

77

Panel Nut M5 X 0.8

250000958

Unavailable

78

REAR NOISE SHIELD - Call your local BRP dealership

512060492

Unavailable

79

Rear Noise Foam

512060381

Unavailable

80

Insert

293450275

Unavailable

81

Hex. Flange Screw M6 X 16

207661644

Unavailable
