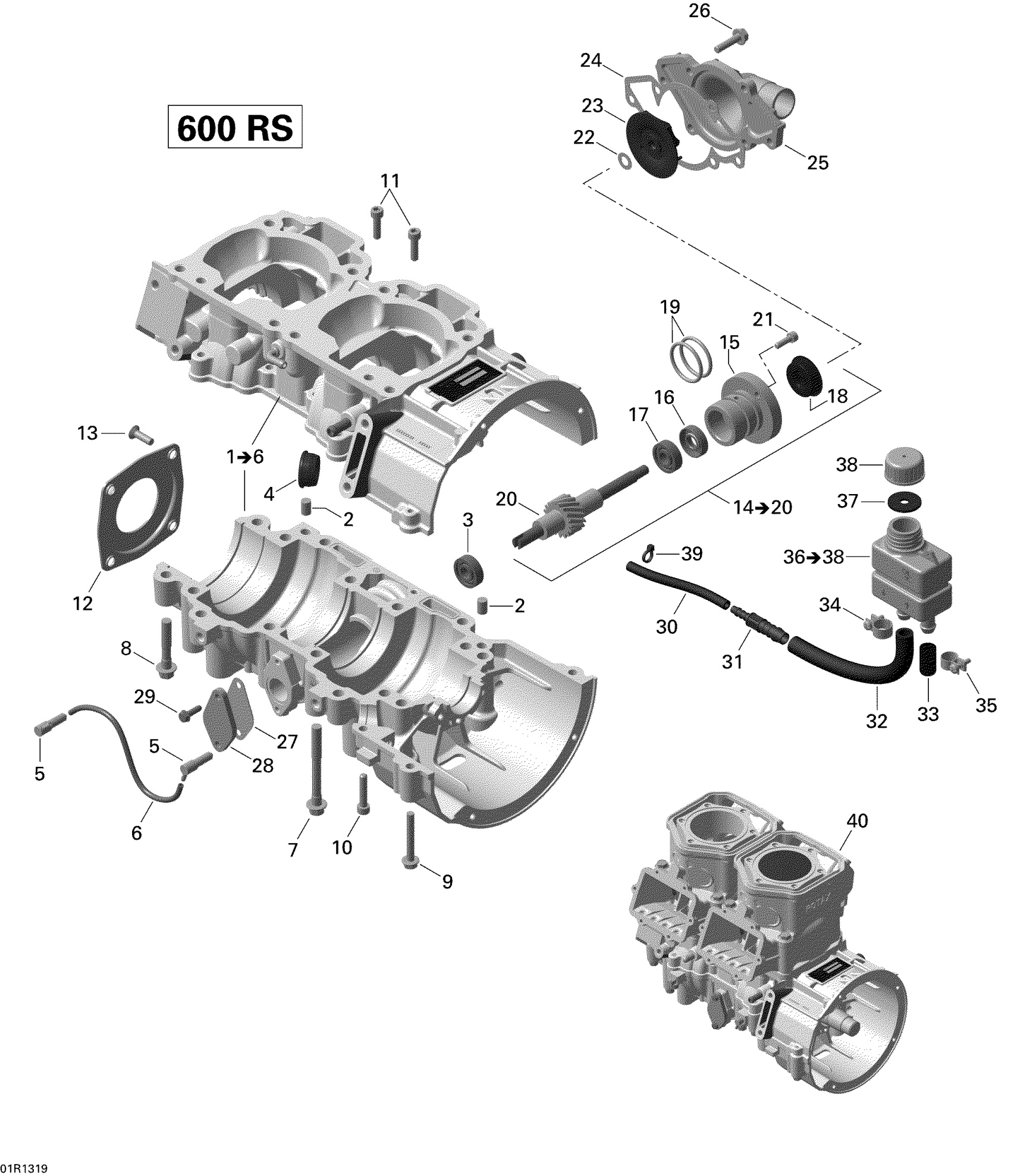

Ski-Doo MXZ X 600RS XP, 2013 Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 6

420893291

Unavailable

2

Center Pin 8 X 12

420632010

Unavailable

3

Ball Bearing

420232100

Unavailable

4

Cable Grommet

420860965

$13.58

5

Check Valve

420956511

$28.57

6

Oil Hose 1500Mm Long

219704404

Unavailable

7

Hex. Collar Screw M8 X 75

420640836

$1.94

8

Hex. Collar Screw M8 x 45

420640432

Unavailable

9

Allen Screw M6 x 45 This part replaces 420640311.

420640312

Unavailable

10

Socket Head Screw M6 X 30

205063044

Unavailable

11

Allen Screw M6 x 22 This part replaces 420840401.

420840403

Unavailable

12

Oil Seal Cover

420812422

Unavailable

13

Screw M6 X 20

420941436

Unavailable

14

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Seal

420230195

$12.65

17

Ball Bearing

420232100

Unavailable

18

Rotary Seal

420650371

Unavailable

19

O-Ring

420950890

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Allen Screw M5 x 16

420840514

Unavailable

22

Thrust Washer

420227945

$3.86

23

Water Impeller

420222505

$14.92

24

Gasket This part replaces 420931810.

420931811

Unavailable

25

Water Pump Housing

420922630

$59.20

26

Hex. Screw M6 X 25

420240034

$1.56

27

Gasket This part replaces 420931566.

420931568

Unavailable

28

Cover Plate

420810827

Unavailable

29

Taptite Screw M5 X 16

420941928

Unavailable

30

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

31

Fitting

420874370

$14.54

32

OIL TUBE - Call your local BRP dealership

420956239

Unavailable

33

Closure Cap

420960279

$4.29

34

CLAMP - Call your local BRP dealership

420951260

Unavailable

35

CLAMP - Call your local BRP dealership

420951241

Unavailable

36

Oil Tank Ass'y | Includes 25 to 27

420956240

$69.97

37

Rubber Gasket

420850350

$5.22

38

Oil Tank Cap

420956250

$13.58

39

Tie Rap

420866710

$4.36

40

BLOCK-SHORT 593RS - Call your local BRP dealership

420059325

Unavailable
