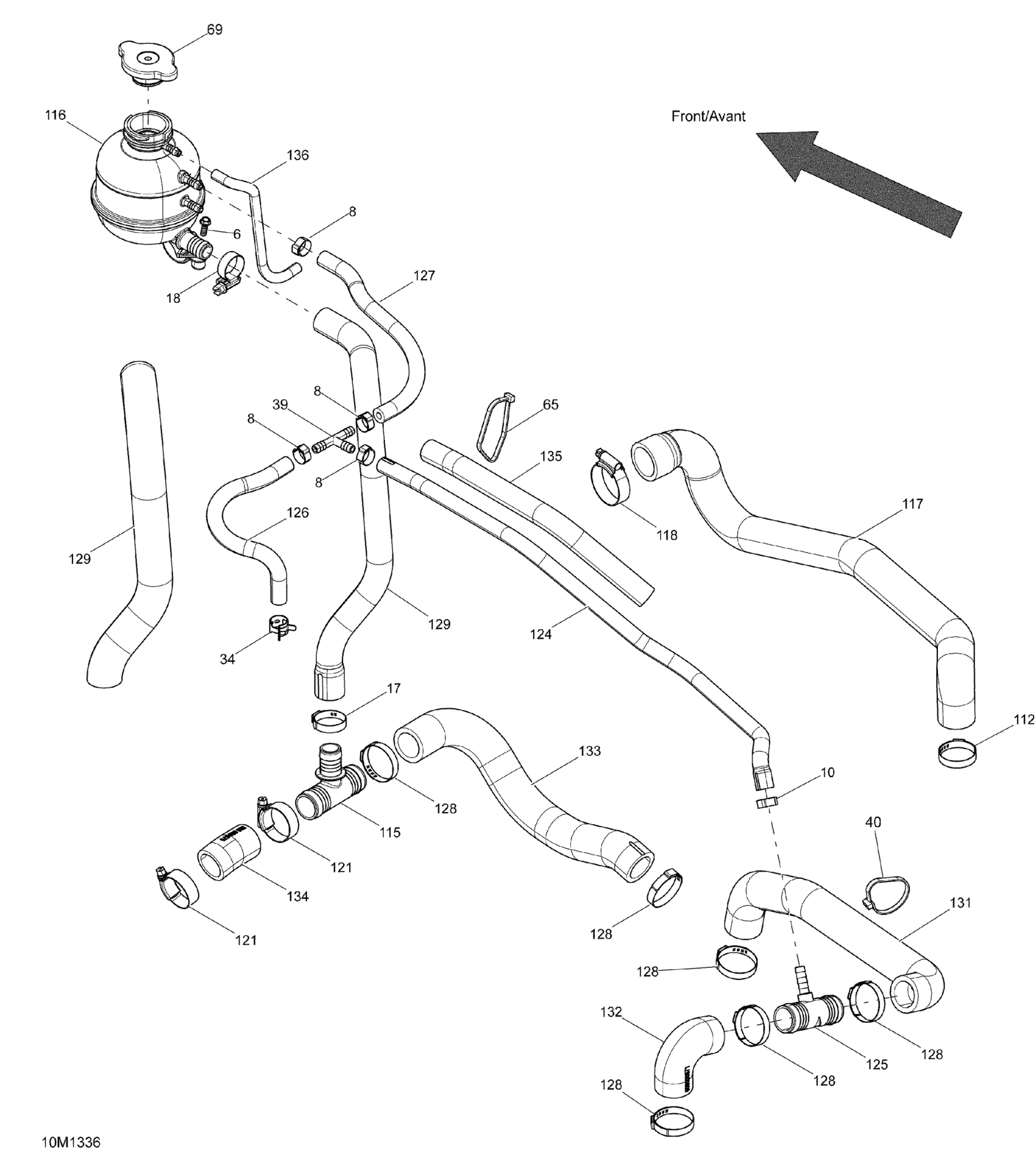

Ski-Doo MXZ X 600RS XP, 2013 Cooling System Diagram

#

Description
Price

6

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

8

Oetiker Clamp

293650046

$2.33

10

Crimp Clamp, 15.3-706R

293650047

$2.64

17

Crimp Clamp

293650099

$4.60

18

Norma Gear Clamp

293650124

$6.58

34

Spring Clamp

293650210

$5.22

39

T-Fitting | Europe

293710024

$12.82

40

Tie-Rap 180 mm

414115200

$0.09

65

Tie-Rap 180 mm

414115200

$0.09

69

Radiator Pressure Cap

509000180

$11.69

112

Oetiker Gear Clamp

509000181

$3.61

115

T-Fitting

509000372

$7.87

116

Coolant Tank

509000421

$86.89

117

ENGINE OUTLET HOSE - Call your local BRP dealership

509000431

Unavailable

118

Aba Gear Clamp, 26-38 MM

509000443

$5.68

121

Aba Gear Clamp, 26-38 MM

509000443

$5.68

124

BREATHER HOSE - Call your local BRP dealership

509000503

Unavailable

125

T-Fitting

509000510

$11.52

126

BLEEDER HOSE - Call your local BRP dealership

509000518

Unavailable

127

BLEEDER HOSE - Call your local BRP dealership

509000519

Unavailable

128

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

129

FILLING HOSE - Call your local BRP dealership

509000551

Unavailable

131

Radiator Hose

509000670

$34.58

132

Radiator Hose This part replaces 509000671.

509001066

$18.43

133

Radiator Hose

509000673

$22.28

134

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

135

Tubing 16 Mm 1000Mm Long

219704408

$6.23

136

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66
