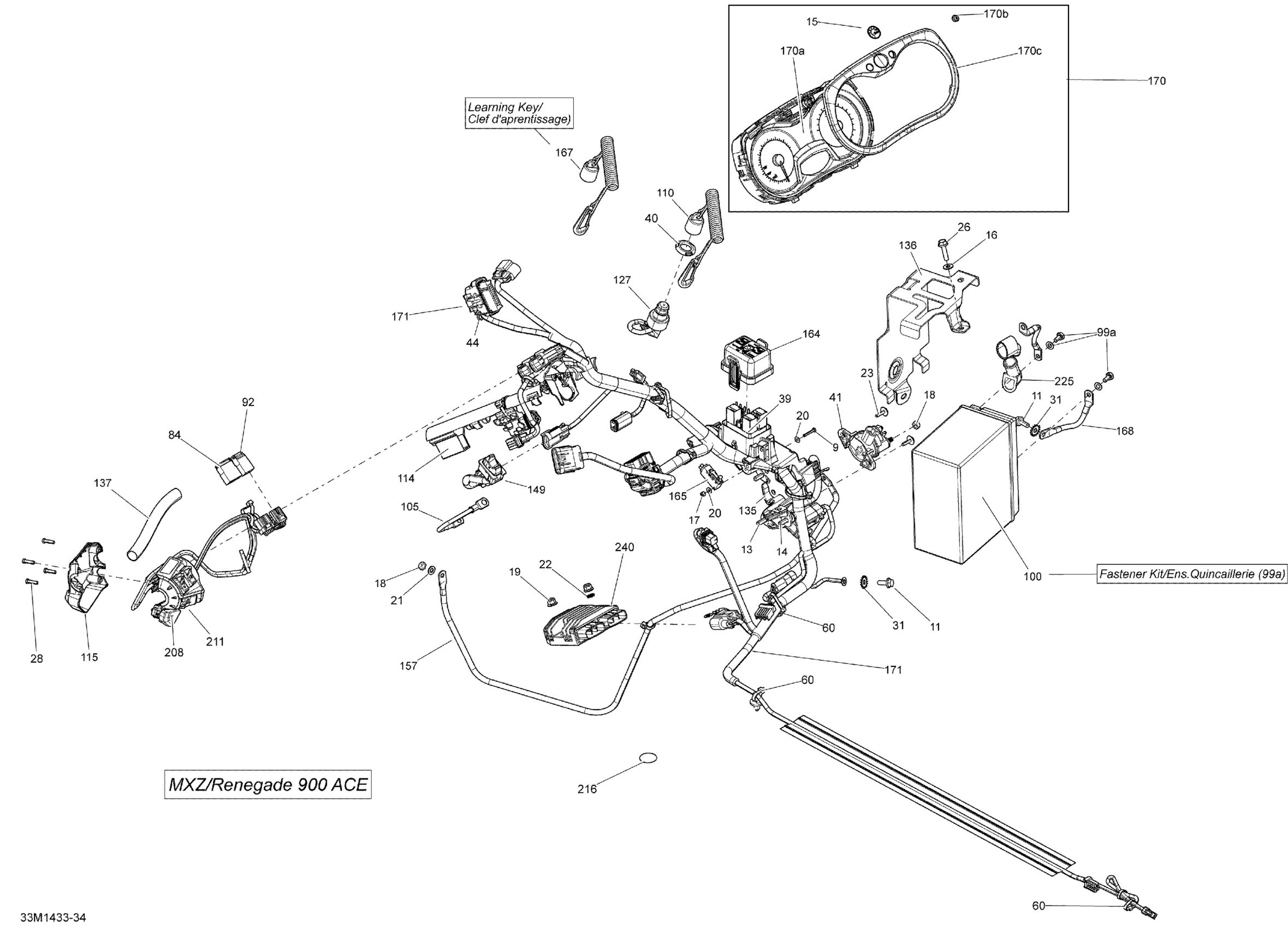

Ski-Doo MXZ TNT 900ACE XS, 2014 Electrical System _33M1433 Diagram

#

Description
Price

9

Hex Screw M3 X 20

207132044

$2.06

11

Hex. Flange Screw M6 X 16

207661644

Unavailable

13

Hex. Flange Screw M6 X 20

210262040

Unavailable

14

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

15

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

16

Flat Washer

224061121

$0.44

17

Elastic Stop Nut M3

232531423

$0.54

18

Elastic Stop Nut M6

232561414

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

Flat Washer M3, Stainless

234032600

$0.54

21

Flat Washer 6 mm

234061410

Unavailable

22

External Serrated Lock Washer 6 mm

234461608

Unavailable

23

Screw M4 X 16

250000725

Unavailable

26

Hex. Flange Screw M6 X 25

250000793

$1.74

28

Torx Screw

250000671

Unavailable

29

Pan Screw Forming, 7500C

250000690

Unavailable

30

Flat Washer

250200039

Unavailable

31

Lock Washer Serrated M6

250200041

Unavailable

39

Case Ass'y with seal, 24 positions

278002824

$29.22

40

Safety Nut (DESS Switch)

278002963

$2.72

41

Starter Relay

278003012

Unavailable

44

Tie Wrap 94 mm | 4X4

293750001

$0.83

60

Tie-Rap 180 mm

414115200

$0.09

84

Male Terminal Housing, 6 Circuits

515175662

Unavailable

92

Male Terminal Housing, 4 Circuits

515175846

$8.57

100

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

105

Ground Wire

515177014

$15.35

110

DESS

515178284

Unavailable

114

Connector Plate

515177134

$14.02

115

Housing Plate

515177147

$17.66

127

DESS Switch

515177249

Unavailable

135

Plate

515177347

$13.82

136

Battery Support

515177348

$29.97

137

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

149

Switch

515177394

$75.35

157

Battery Wire

515177427

$29.20

164

Fuse Box Cover

515177671

$10.88

165

Switch Ass'y

515177460

$47.99

167

DESS CAP (LEARNING KEY) - Call your local BRP dealership

860200907

Unavailable

168

GROUND WIRE - Call your local BRP dealership

515177500

Unavailable

170

Indicator

515177912

$516.89

171

WIRING HARNESS_CHASSIS - Call your local BRP dealership

515177591

Unavailable

208

Start/RER Button

515176088

$18.43

211

LH Housing

515178198

$266.89

216

Adhesive Patch

518325560

Unavailable

225

Protector Cap

710000495

Unavailable

240

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

170a

Lens | XTP

415129349

Unavailable

170b

Speedometer Button | XTP

415129355

Unavailable

170c

Gauge Ring

415129370

$10.66

99a

Battery Bolt Kit

250000282

$2.95
