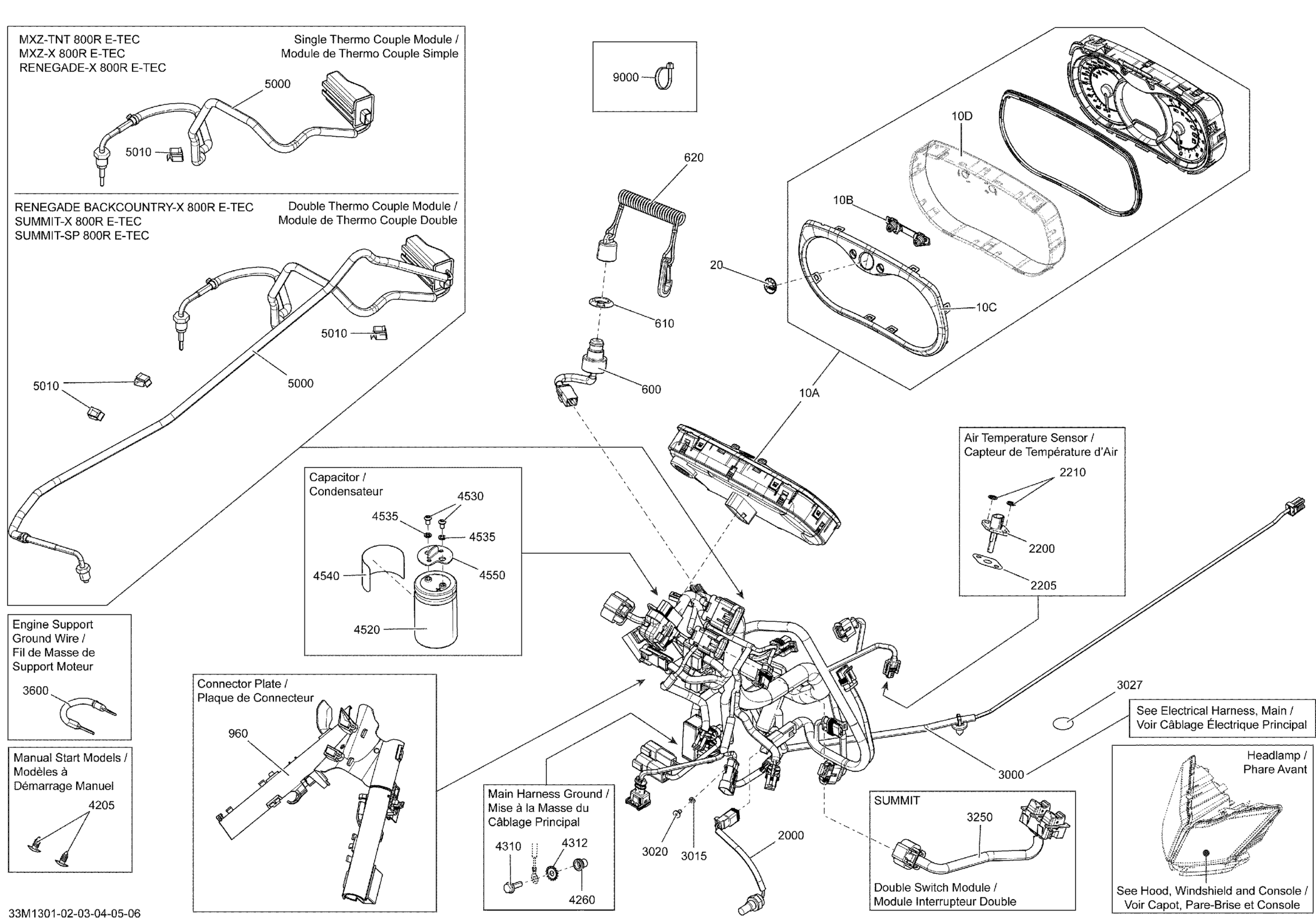

Ski-Doo MXZ TNT 800RETEC XS, 2013 Electrical System Diagram
#
Description
Price
10A
Speedometer | Includes 10 to 10c
515177914
Unavailable
10B
Speedometer Button | XTP
415129355
Unavailable
10C
Gauge Ring
415129348
Unavailable
10D
Lens | XTP
415129349
Unavailable
20
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
600
DESS Switch
515177249
Unavailable
620
DESS
515178284
Unavailable
2000
Temperature Sensor This part replaces 420664508.
420664509
Unavailable
3000
WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1398
515177375
Unavailable
3015
Lock Washer 4 mm
234141601
Unavailable
3027
Adhesive Patch
518325560
Unavailable
3250
Not Available As Spare Parts
XXX
Unavailable
3600
Ground Wire
515177289
Unavailable
4205
Not Available As Spare Parts
XXX
Unavailable
4260
Insert
293450275
Unavailable
4310
Hex. Flange Screw M6 X 20
207662044
Unavailable
4312
Lock Washer Serrated M6
250200041
Unavailable
4520
Capacitor
515177272
Unavailable
5000
Kit Module *Egts Module Kit Sing This part replaces 515177759.
415130000
Unavailable
9000
Tie Wrap 142 mm
293750002
Unavailable
9000
Tie-Rap 173 mm
293750009
Unavailable
