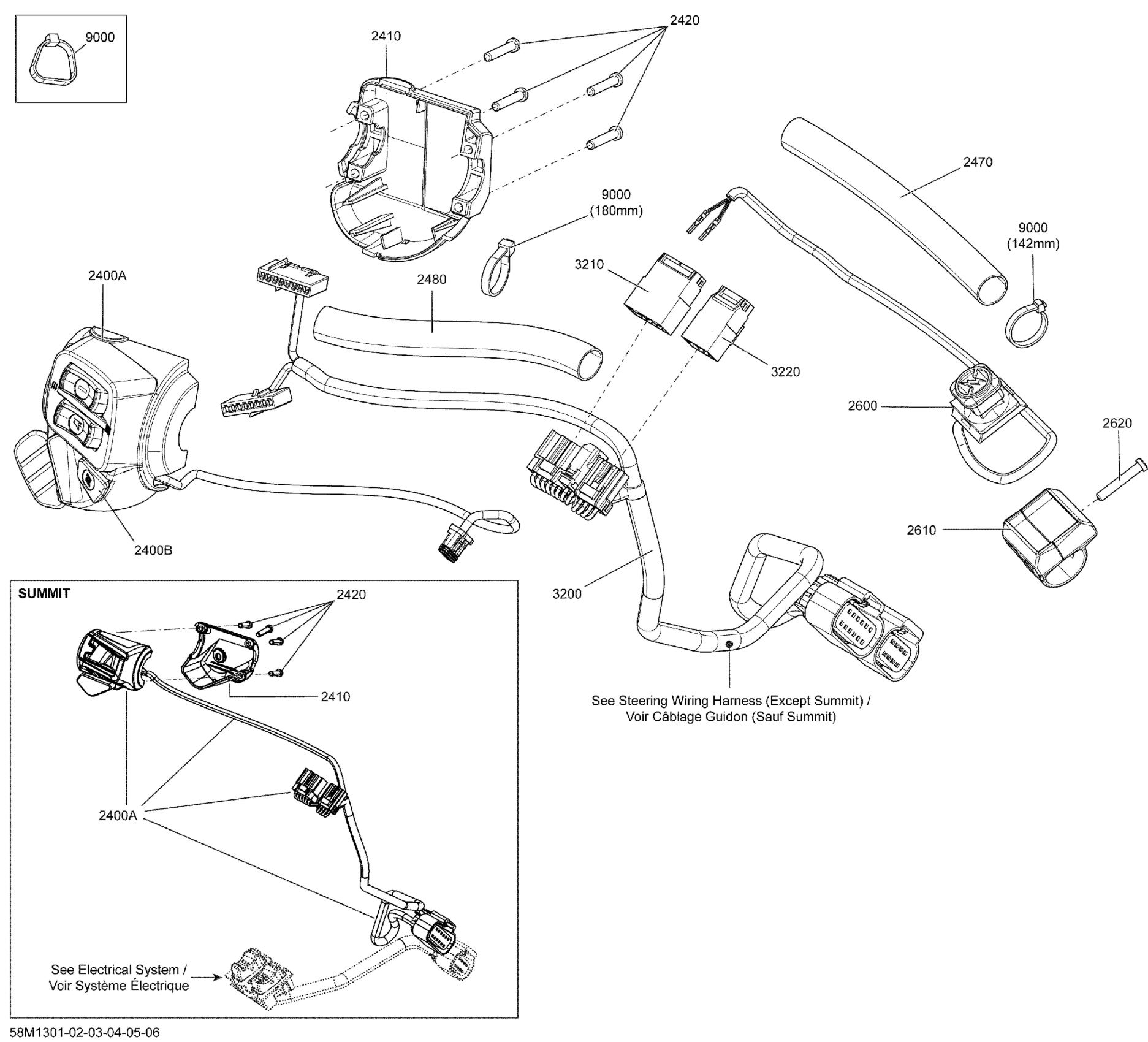

Ski-Doo MXZ TNT 800RETEC XS, 2013 Electrical Accessories, Steering Diagram

Description

Price

2400A

LH Switch Housing | Includes 55a

515177414

Unavailable

2400B

Start/RER Button

515176088

$18.43

2410

Switch Housing Plate

515175926

Unavailable

2420

Torx Screw #8-18

250000263

$1.02

2470

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

2600

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3200

STEERING WIRING HARNESS - Call your local BRP dealership

515177416

Unavailable

3210

Male Terminal Housing, 6 Circuits

515175662

Unavailable

3220

Male Terminal Housing, 4 Circuits

515175846

$8.57

9000

Tie Wrap 94 mm | 4X4

293750001

$0.83

9000

Tie Wrap 142 mm

293750002

Unavailable

9000

Tie-Rap 173 mm

293750009

Unavailable

9000

Tie-Rap 180 mm

414115200

$0.09

9000

Tie Wrap 368 mm

293750008

$0.85
