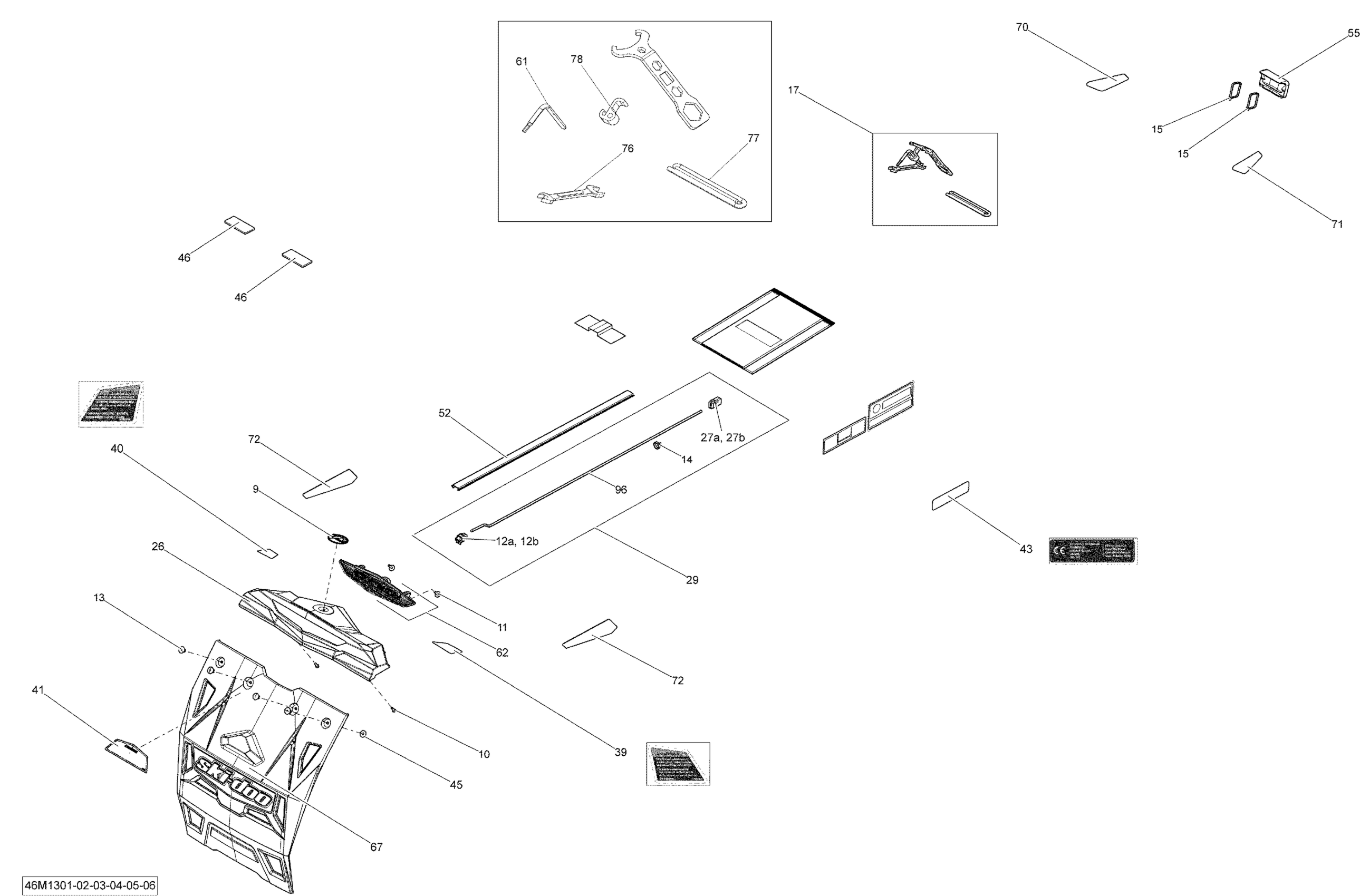

Ski-Doo MXZ TNT 800RETEC XS, 2013 Utilities Diagram

#

Description
Price

9

BRP Logo 48 mm

219903947

$14.88

10

Hex. Screw K40 X 13

241141340

Unavailable

11

Screw M4 X 16

250000725

Unavailable

12a

Female Terminal Housing 3 Circuits

278002387

$7.24

12b

Seal Wire

710001153

$1.79

13

Pop Rivet 3/16”

293150108

$1.23

14

Tie Wrap 142 mm

293750002

Unavailable

15

Tie Rap 371 mm

293750018

$0.46

17

Tools Kit | 600 HO ETEC

520001590

$49.99

26

Deep Black, Light Fairing

511000810

Unavailable

27a

Male Housing, 3 Circuits

515175494

$15.35

27b

Male Terminal

515175232

$1.49

29

WIRING HARNESS ASS'Y - Call your local BRP dealership | Package-146"

515177274

$16.89

29

Wiring Harness Ass'y | Package-137"

515177275

$19.20

29

WIRING HARNESS ASS'Y - Call your local BRP dealership | Package-154"

515177276

$16.89

39

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

40

Warning Decal, Safety

516005058

Unavailable

41

Warning Decal, Track

516005175

Unavailable

43

CE DECAL - Call your local BRP dealership | Model-Europe

516005873

Unavailable

45

Washer

517124300

Unavailable

46

Amber, Reflector

520000271

$18.43

46

White, Reflector

415037900

$19.20

52

Radiator Trim

520000829

$20.74

55

Deep Black, Reflector Support

520000871

$5.29

67

Snow Guard

520001297

Unavailable

61

Spacing Tool

520001142

$10.99

62

Rear Light

520001143

$76.89

70

Yellow, LH Front Reflector

520001236

$19.97

71

Yellow, RH Front Reflector

520001237

$19.97

72

Red Rh Rear Reflector

520001239

Unavailable

72

Yellow, RH Rear Reflector

520001241

Unavailable

72

Red, LH Rear Reflector

520001238

Unavailable

72

Yellow, LH Rear Reflector

520001240

Unavailable

76

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

77

Was 412500100 Rope-Starter

219704403

Unavailable

78

Starter Grip

529000060

Unavailable

96

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable
