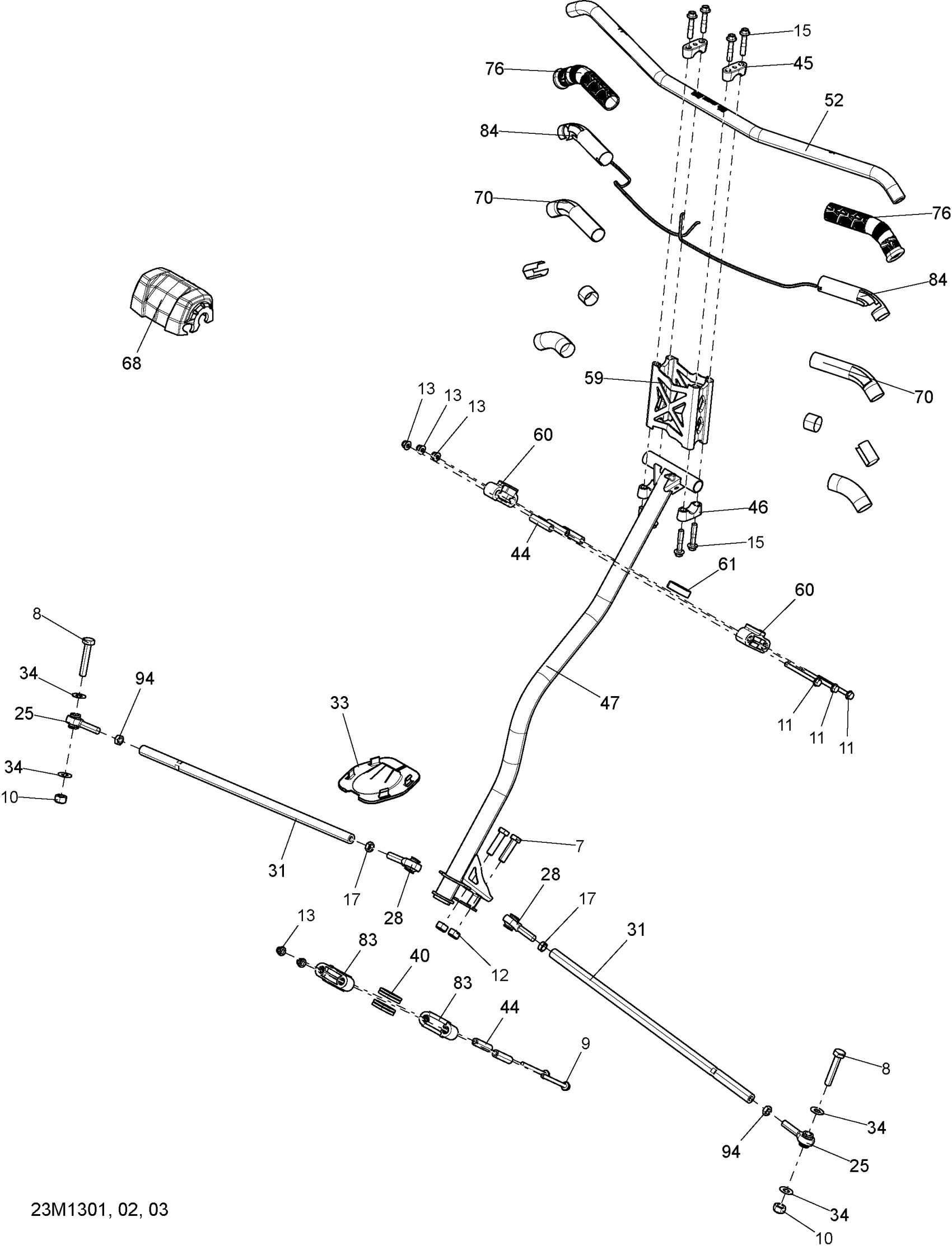

Ski-Doo MXZ TNT 800RETEC XS, 2013 Steering Diagram

#

Description
Price

7

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

8

Hex Screw M10 X 1.5 X 55

207005554

$7.09

9

Hex. Flange Screw M6 X 70

207667044

$0.81

10

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

11

Hex. Flange Screw M6 X 70

207667056

$4.15

12

Elastic Stop Nut M10

232500416

$1.79

13

Elastic Flange Nut M6 X 1.0

233261416

$2.00

15

Hex. Flange Screw M8 X 40

250000352

$3.16

17

LH Threaded Hex. Jam Nut M10

250100016

$0.70

25

RH Threaded Ball Joint

506152019

$38.78

28

LH Thread Ball Joint

506152081

$38.78

31

Tie-Rod Ass'y

506152496

$58.18

33

Plate

506152163

$9.93

34

Washer

506152582

$4.28

40

Lower Vibration Ring

506152518

$4.39

44

Housing Bushing

506152297

$9.93

45

Steering Support | Includes 40 to 40a

506152751

$11.58

46

Steering Support | Includes 40 to 40a

506152751

$11.58

47

Steering Column

506152962

$183.55

52

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

59

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

60

Upper Half-Housing

506152508

$7.18

61

Upper Anti-Vibration Gasket

506152509

$4.39

68

Deep Black, Steering Pad

506152541

$41.01

70

Thermal Insulation

506153176

$5.54

76

Grip 148mm

506152560

$15.64

83

Lower Half-Housing

506152217

$5.40

84

Heating Element 32 Watt 3 Wires

506152798

$47.73

94

RH Threaded Hex. Jam Nut M10

732610010

$0.70
