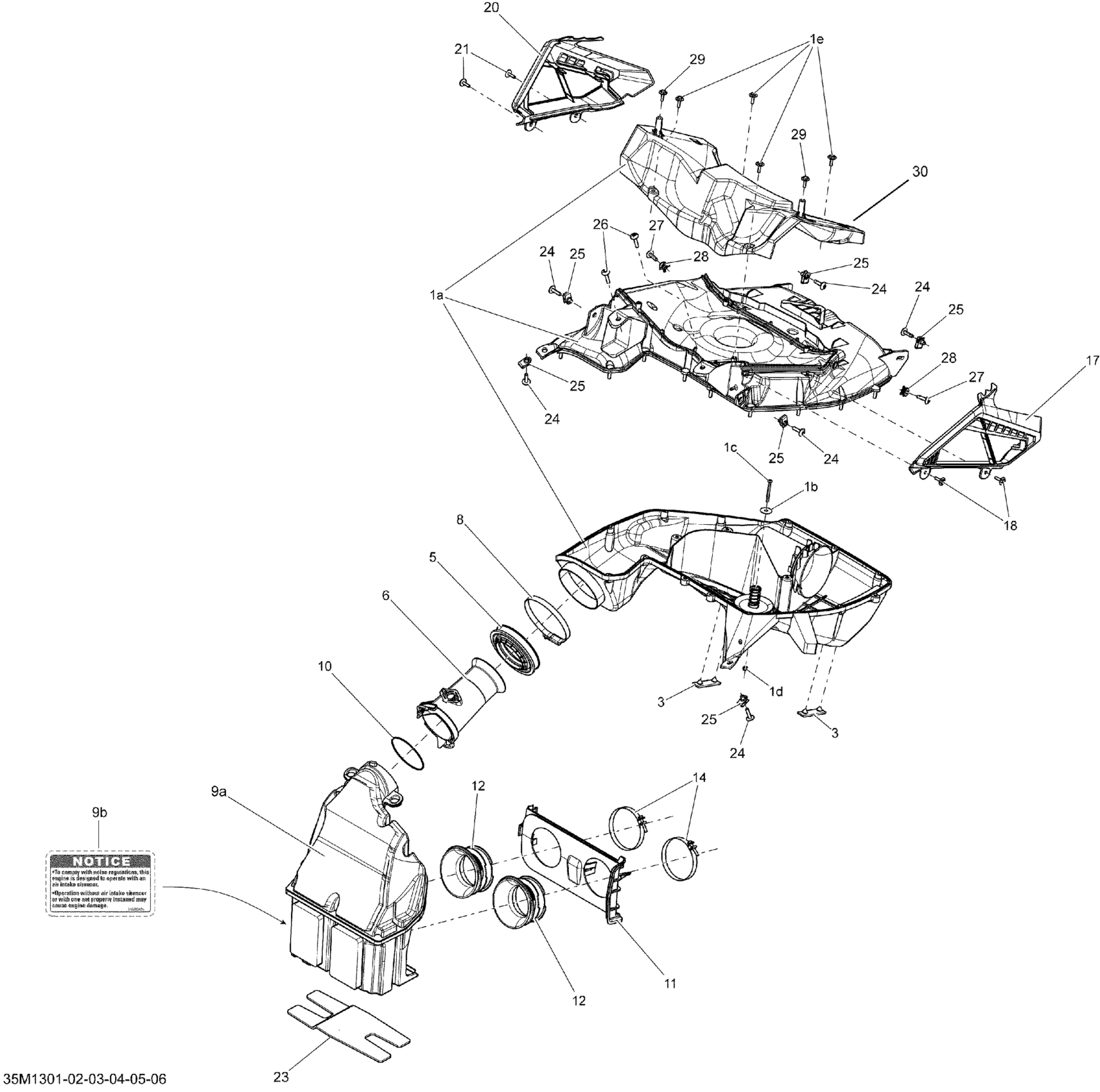

Ski-Doo MXZ TNT 800RETEC XS, 2013 Air Intake System Diagram

#

Description
Price

1a

Secondary Chamber Ass'y | Includes 10 to 10e

508000722

$155.35

1b

Flat Washer

224060201

Unavailable

1c

Socket Head Screw M4 X 40 | X

205444086

$1.42

1d

Elastic Stop Nut M4

232541414

$0.48

1e

Screw M4 X 16

250000725

Unavailable

3

Stopper

508000744

Unavailable

5

Boot

508000567

$16.89

6

Flute

508000662

Unavailable

8

Norma Clamp

514052924

$10.58

9a

Primary Chamber Ass'y | Includes 100 to 100a

508000660

Unavailable

9b

Notice Decal, Air Intake Silencer

516005876

$4.12

10

O-Ring

293300115

$2.63

11

Plate Adapter

508000613

Unavailable

12

Air Intake Adapter

508000614

Unavailable

14

Gemi Clamp

508000346

$9.31

17

RH Air Filter

508000730

$40.74

18

Screw M4 X 16

250000725

Unavailable

20

LH Air Filter

508000731

$40.74

21

Screw M4 X 16

250000725

Unavailable

23

Insulated Foam

508000739

$8.38

24

Torx Screw M5 X 20

250000528

Unavailable

25

Panel Nut M5 X 0.8

250000958

Unavailable

26

Torx Screw M5 X 26

250000587

Unavailable

27

Torx Screw M5 X 20

250000528

Unavailable

28

Jack Nut M5

250100035

$6.03

29

Screw M4 X 16

250000725

Unavailable

30

Air Duct

508000732

$45.35
