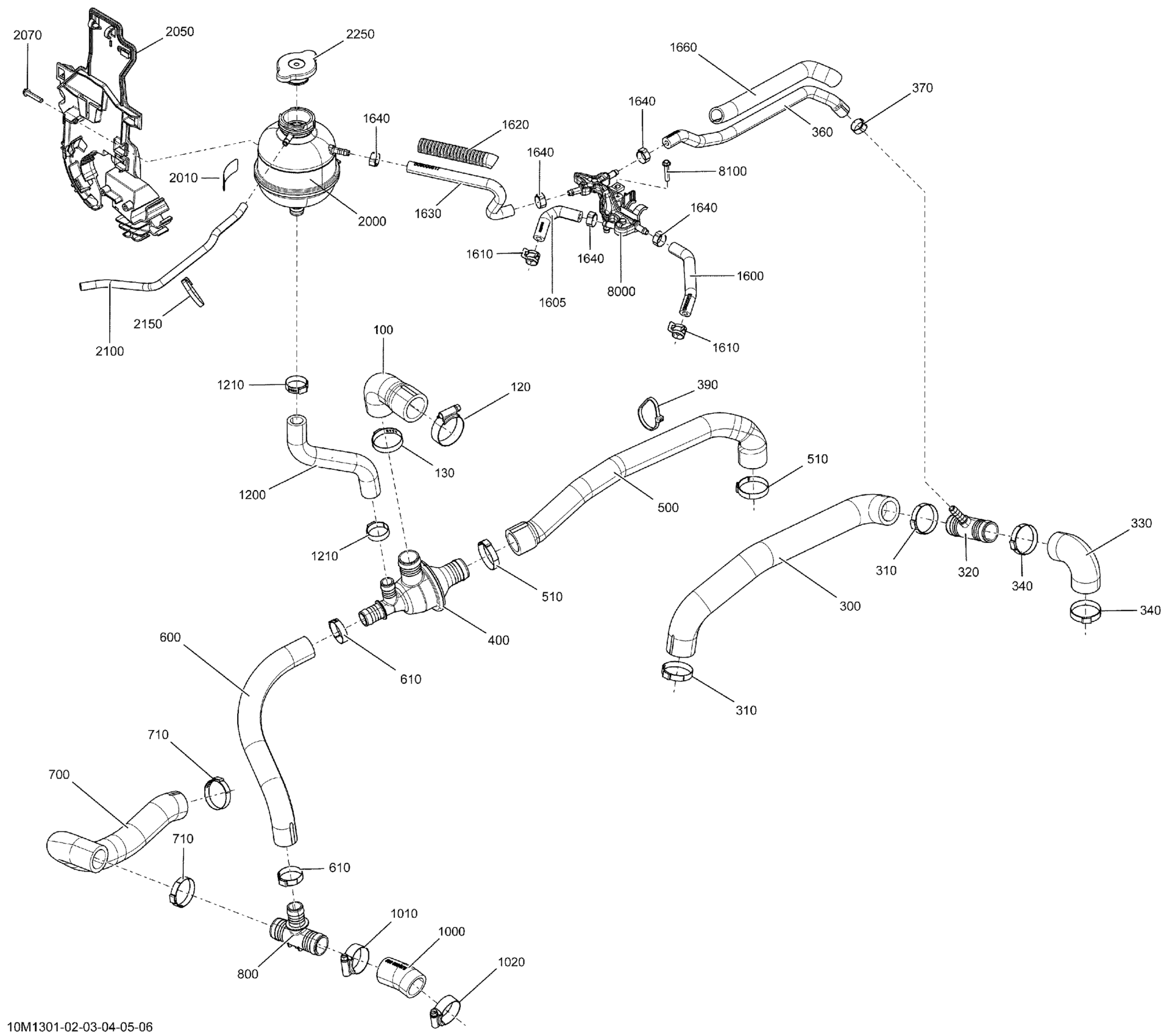

Ski-Doo MXZ TNT 800RETEC XS, 2013 Cooling System Diagram

#

Description
Price

100

Engine Outlet Hose

509000678

$18.43

120

Aba Gear Clamp, 26-38 MM

509000443

$5.68

130

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

300

Radiator Hose

509000670

$34.58

310

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

320

T-Fitting

509000510

$11.52

330

Radiator Hose This part replaces 509000671.

509001066

$18.43

340

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

360

Bleeder Hose

509000906

$23.05

370

Crimp Clamp, 15.3-706R

293650047

Unavailable

390

Tie-Rap 180 mm

414115200

$0.09

400

Thermostat Housing

509000499

$39.97

500

Thermostat Outlet Hose

509000679

$25.35

510

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

600

Bypass Hose

509000672

$24.58

610

Crimp Clamp

293650099

Unavailable

700

Radiator Hose

509000673

$22.28

710

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

800

T-Fitting

509000372

$7.87

1000

Engine Inlet Hose

509000997

$18.43

1010

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1020

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1200

Filling Hose

509000812

Unavailable

1210

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

1600

Bleeder Hose

509000818

$10.52

1605

Bleeder Hose

509000819

$10.52

1610

Spring Clamp

293650210

Unavailable

1620

Was 409901800 Tubing (13 mm)

219704400

Unavailable

1630

HOSE - Call your local BRP dealership

509000817

Unavailable

1640

Oetiker Clamp

293650046

Unavailable

1660

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

2000

Coolant Tank

509000802

Unavailable

2010

Warning Decal

516005904

$7.95

2050

TANK-SUPPORT - Call your local BRP dealership

509000973

Unavailable

2070

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

2100

Hose 6 Mm 15000Mm Long

219704360

Unavailable

2150

Tie-Rap 180 mm

414115200

$0.09

2250

Radiator Pressure Cap

509000180

Unavailable

8000

Bleed Collector

509000803

$24.58

8100

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61
