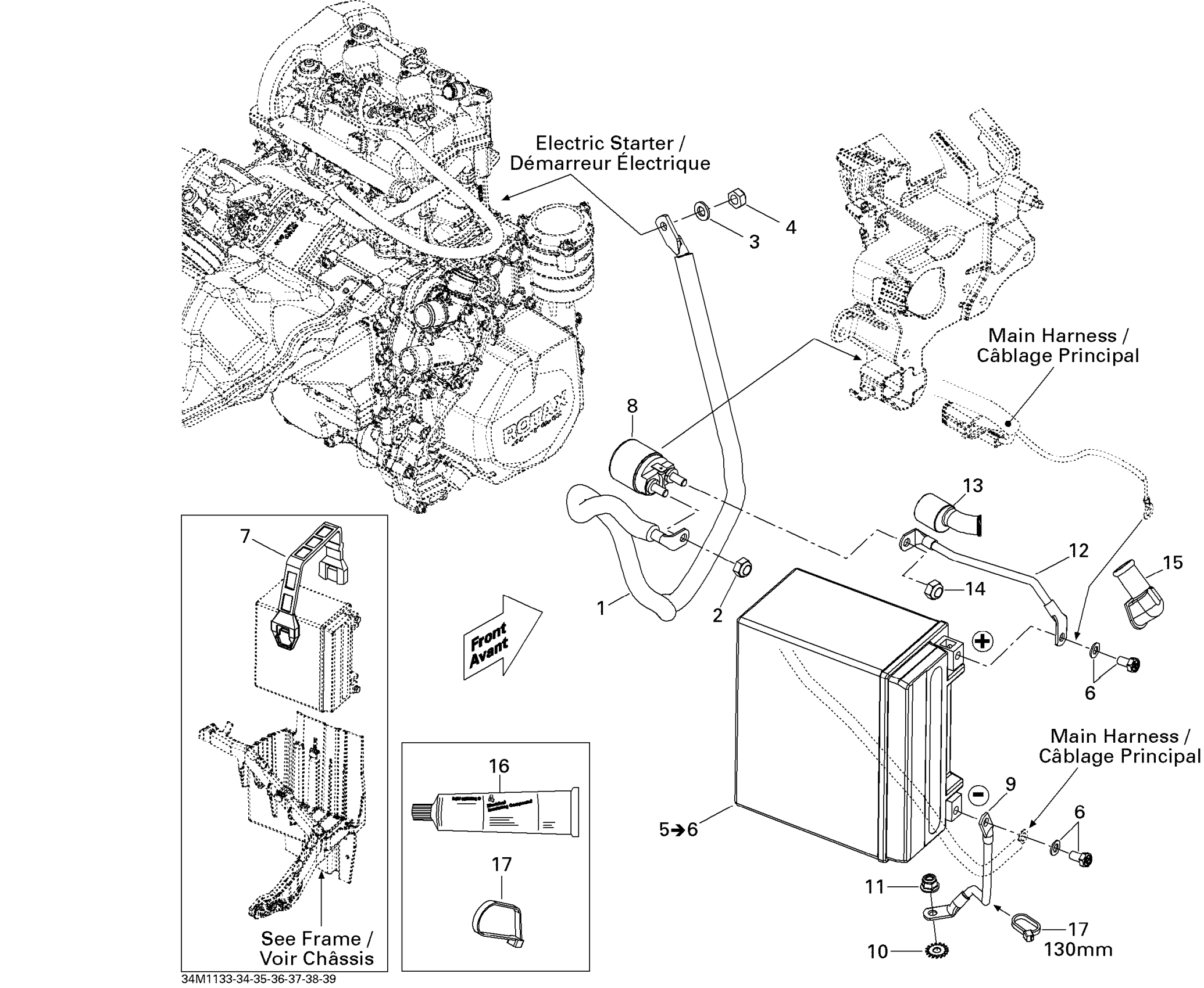

Ski-Doo MXZ TNT 600ACE, 2011 Battery And Starter Diagram
#
Description
Price
1
BATTERY WIRE - Call your local BRP dealership
515176966
Unavailable
2
Elastic Stop Nut M6
232561414
Unavailable
3
Flat Washer 6 mm
234061410
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
7
Strap
515176944
Unavailable
8
STARTER RELAY - Call your local BRP dealership
515176942
Unavailable
9
Ground Wire
515176943
Unavailable
10
Lock Washer Serrated M6
250200041
Unavailable
11
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
12
BATTERY WIRE - Call your local BRP dealership
515177007
Unavailable
14
Elastic Stop Nut M6
232561414
Unavailable
15
Protector Cap
710000495
Unavailable
16
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
17
Tie Wrap 142 mm
293750002
Unavailable
17
Tie-Rap 173 mm
293750009
Unavailable
