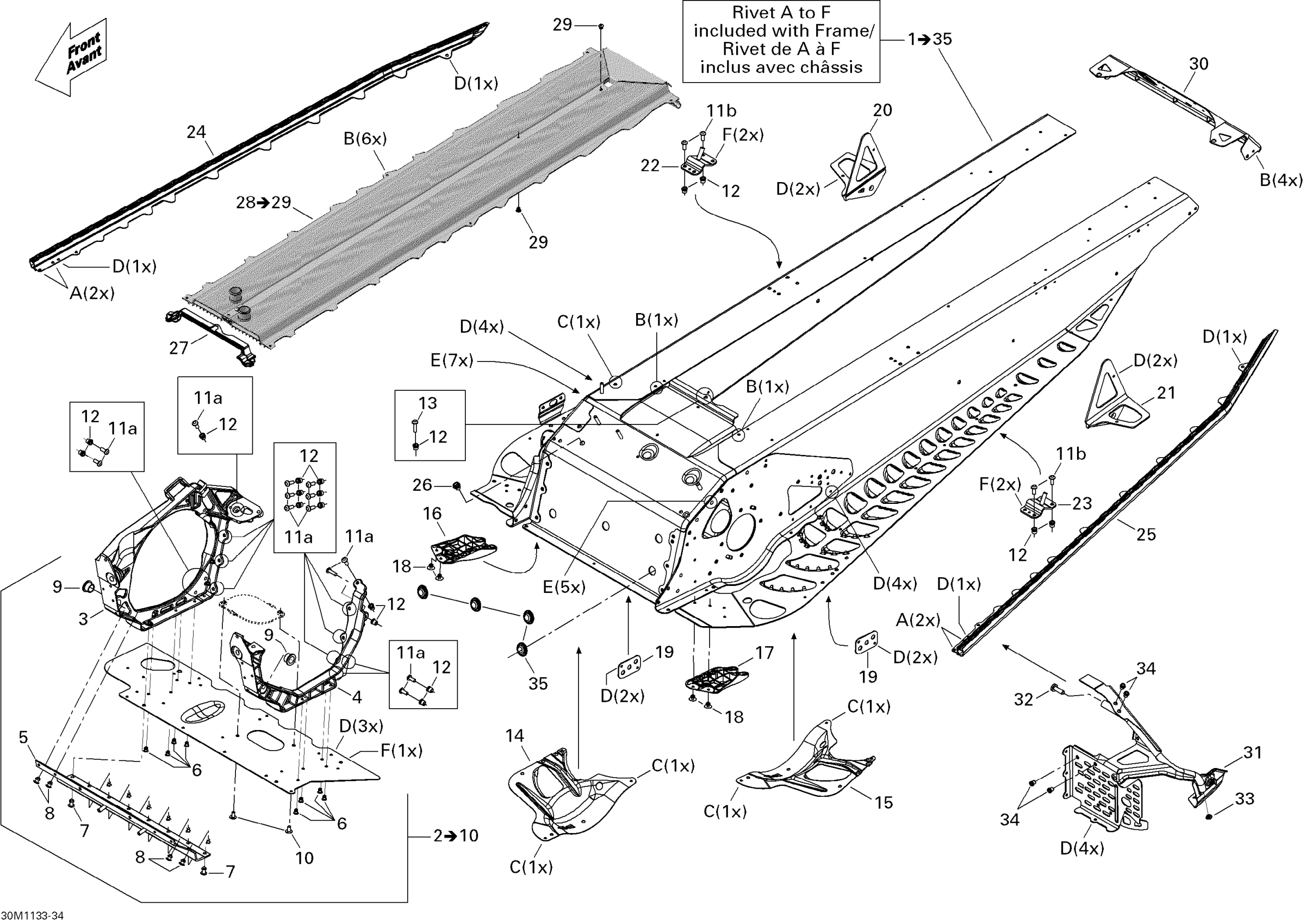

Ski-Doo MXZ TNT 600ACE, 2011 Frame Diagram
#
Description
Price
1
FRAME 120 LFF - Call your local BRP dealership
415129826
Unavailable
2
E-MODULE - Call your local BRP dealership | Includes 2 to 10
518327569
Unavailable
6
Stavex Rivet
293150144
Unavailable
9
Leg Bushing
505072690
Unavailable
11a
Hex. Flange Screw M6 X 20
207662044
Unavailable
11b
Hex. Flange Screw M6 X 16
207661644
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Hex. Flange Screw M6 X 20
207662044
Unavailable
14
RH Reinforcement
518324874
Unavailable
15
LH Reinforcement
518324875
Unavailable
16
RH Deflector, Black Polypropylene
518325782
Unavailable
17
LH Deflector, Black Polypropylene
518325783
Unavailable
20
RH Slide Bracket
518324885
Unavailable
21
LH Slide Bracket
518324886
Unavailable
22
RH Rear Base
518325973
Unavailable
23
LH Rear Base | Includes 10v to 10x
518325974
Unavailable
24
RH Roller
518324812
Unavailable
25
LH Roller
518324813
Unavailable
26
Insert
293450275
Unavailable
27
Seal
518326656
Unavailable
28
Rear Radiator Ass'y
518326666
Unavailable
29
Stavex Rivet
293150144
Unavailable
30
Rear Cap
518327105
Unavailable
31
LH STIRUP - Call your local BRP dealership
518327935
Unavailable
33
Full Moon Dart 5 mm
293730042
Unavailable
34
Insert M5 X 0.8
293450268
Unavailable
35
Black, Plug
293730052
Unavailable
A
Pop Rivet 3/16"
390402300
Unavailable
B
Avex Rivet
390909200
Unavailable
D
Stavex Rivet
293150144
Unavailable
E
Henrob Rivet
293150146
Unavailable
