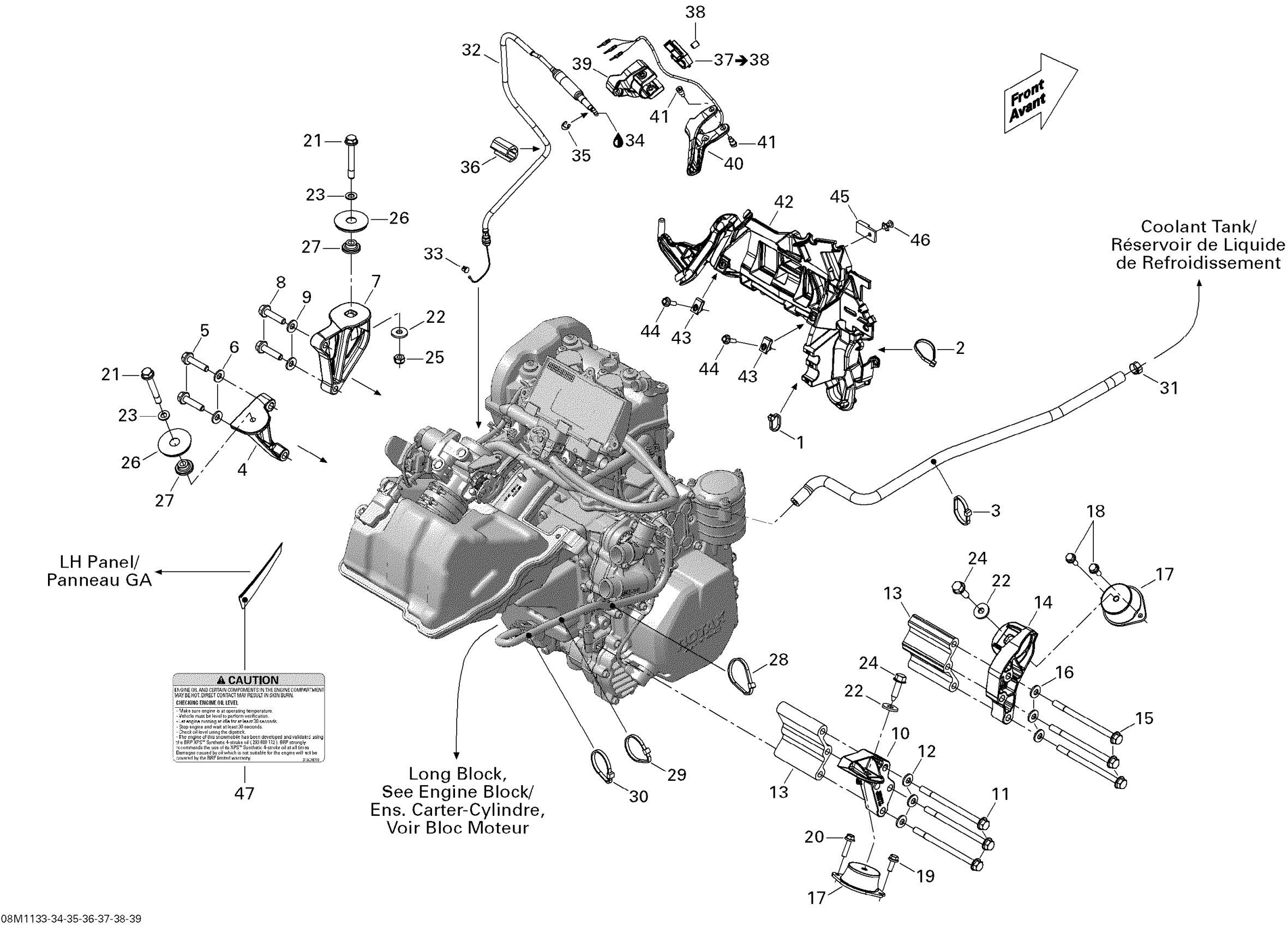

Ski-Doo MXZ TNT 600ACE, 2011 Engine Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.09

2

Tie-Rap 180 mm

414115200

$0.09

3

Tie-Rap 180 mm

414115200

$0.09

4

Rear Support PTO

512061139

$23.82

5

Hex. Flange Screw M8 X 35

250000986

$1.74

6

Conical Spring Washer M8

234281474

$1.25

7

Front Support PTO

512061140

$17.66

8

Hex. Flange Screw M8 X 35

250000986

$1.74

9

Conical Spring Washer M8

234281474

$1.25

10

Rear Support MAG

512061142

$27.66

11

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

12

Conical Spring Washer M8

234281474

$1.25

13

Shim

512060505

$42.28

14

Front Support, MAG

512060663

$18.43

15

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

16

Conical Spring Washer M8

234281474

$1.25

17

Rubber Mount

512060729

$69.97

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

19

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

20

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

21

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

Unavailable

22

Yellow, Washer

503183200

Unavailable

23

Flat Washer With Teflon 8 mm

250200008

Unavailable

24

Cone Screw, M8 X 30

250000257

$1.72

25

Hex. Elastic Stop Nut M8

232581414

Unavailable

26

Stopper

512061203

$12.52

27

Spacer

512060285

$17.66

28

Tie-Rap 180 mm

414115200

$0.09

29

Tie-Rap 180 mm

414115200

$0.09

30

Tie-Rap 180 mm

414115200

$0.09

31

Oetiker Clamp

293650046

Unavailable

32

THROTTLE CABLE - Call your local BRP dealership

512060606

$61.51

33

Cable Guide

707000434

Unavailable

34

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

35

Circlip

414274500

Unavailable

36

Protector

512060313

$9.31

37

Upper Housing Ass'y

512060198

Unavailable

38

Socket Set Screw M8 X 10

414440800

$4.00

39

Lower Housing

512060860

Unavailable

40

Throttle Handle Ass'y

512061252

Unavailable

41

Flange Screw

732601143

$4.02

42

MODULE SUPPORT - Call your local BRP dealership

512060509

$10.32

43

Panel Nut M5 X 0.8

250000958

Unavailable

44

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

Unavailable

45

Clip

270000141

$8.33

46

Avdel Rivet

293150027

Unavailable

47

Caution Decal, Oil Level

516005521

Unavailable
