Description

Price

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

10

Hex. Flange Screw, Scotch Grip

207584034

$2.06

11

Hex. Flange Screw M6 X 16

207661644

$0.61

12

Hex. Flange Screw M6 X 20

207662044

$1.66

13

Hex. Flange Screw M6 X 25

207662544

$0.53

14

Hex. Flange Screw M6 X 16

210261650

$1.22

15

Hex. Flange Screw M6 X 20

210262040

$2.06

17

Elastic Stop Nut M6

232561414

$1.55

18

Hex. Flange Nut M6

233061414

$1.34

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

Elastic Flange Nut M6 X 1.0

233261416

$1.74

21

Hex. Flange Elastic Nut M8

233281414

$1.14

22

Conical Spring Washer M8

234281474

$1.25

23

Panel Nut M5 X 0.8

250000958

$3.48

24

Torx Truss Screw M6 X 12

250000767

$1.66

25

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

26

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

27

Tork Screw M6 X 16

250000534

$1.74

28

Torx Screw M8 X 55

250000535

$2.63

29

Tork Screw M6 X 18

250000536

$2.06

32

Flat Washer

250200039

$0.72

33

Clinch Stud M6 X 20

250300027

$1.92

34

Clinch Stud M6 X 30

250300031

$1.92

35

Clinch Stud

250300038

$4.00

38

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

39

Pop Rivet 3/16”

293150108

$1.23

41

Hemlock Rivet, 6.5 mm

293150119

$4.00

42

Hemlock Rivet 6.5 mm

293150120

$7.23

43

Stavex Rivet

293150144

$0.77

49

Henrob Rivet

293150146

$1.92

50

Ornit Rivet 6,5 X 14.5

293150266

$1.94

60

Hemlock Rivet, 6.4 mm

293150174

$6.43

61

Monobolt Rivet 6.4

293150182

$2.91

62

Monobolt Rivet, 4.8 mm

293150191

$0.95

70

Full Moon Dart 8 mm

293730041

$2.12

71

Black, Plug

293730052

$6.37

72

Full Moon Dart 10 mm

293730059

$4.42

77

Not Available As Spare Parts

XXX

Unavailable

87

Insert

293450275

$9.89

88

Leg Cushion

505073317

$5.92

90

Vibration Damper

512061516

$57.66

93

Heat Shield

514054755

$6.49

95

Washer

517124300

$0.16

99

RH Roller

518324812

$180.74

99

LH Roller

518324813

$180.74

101

RH Reinforcement

518324874

$25.35

102

LH Reinforcement

518324875

$25.35

103

RH Slide Bracket

518324885

$36.89

104

LH Slide Bracket

518324886

$36.89

106

Clear Rear Bumper

518324980

$96.89

109

Not Available As Spare Parts

XXX

Unavailable

111

Not Available As Spare Parts

XXX

Unavailable

114

Adhesive Patch

518325560

$4.34

115

Not Available As Spare Parts

XXX

Unavailable

117

Not Available As Spare Parts

XXX

Unavailable

122

RH Deflector, Black Polypropylene

518325782

$11.77

124

LH Deflector, Black Polypropylene

518325783

$11.77

127

Not Available As Spare Parts

XXX

Unavailable

128

Not Available As Spare Parts

XXX

Unavailable

129

RH Rear Base

518325973

$18.43

131

LH Rear Base | Includes 10v to 10x

518325974

$18.43

137

Not Available As Spare Parts

XXX

Unavailable

138

Not Available As Spare Parts

XXX

Unavailable

143

Engine Support

518326178

$63.05

145

Front Member

518326198

$59.97

146

RH Side Member

518326328

$259.97

147

LH Side Member

518326330

$259.97

148

Center Column Support

518326355

$20.74

151

Battery Support

518326472

$40.74

153

RH Support | LT

518326482

Unavailable

156

Retaining Plate | Includes 40 to 40a

518326550

Unavailable

158

Rear Member

518326559

$244.58

162

Seal

518326656

$8.43

166

Rear Radiator Ass'y

518326666

Unavailable

175

LH Stirup

518326820

$36.89

177

Upper Column Support

518326848

$13.06

178

Support

518326960

$9.71

179

U-Attach

518326961

$8.45

181

Front Member

518326970

$276.12

182

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.66

184

Attach | Includes 10n to 10p

518326986

$9.71

187

Rear Cap

518327105

$20.74

199

Front Suspension Support

518327487

$267.66

200

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97

206

E Module | Includes 10ad to 10ap

518328078

$475.35

209

FRAME 120 LFF - Call your local BRP dealership

415129826

Unavailable

211

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

216

Not Available As Spare Parts

XXX

Unavailable

217

Not Available As Spare Parts

XXX

Unavailable

220

Full Moon Cap

520000567

$8.62

221

Not Available As Spare Parts

XXX

Unavailable

222

Not Available As Spare Parts

XXX

Unavailable

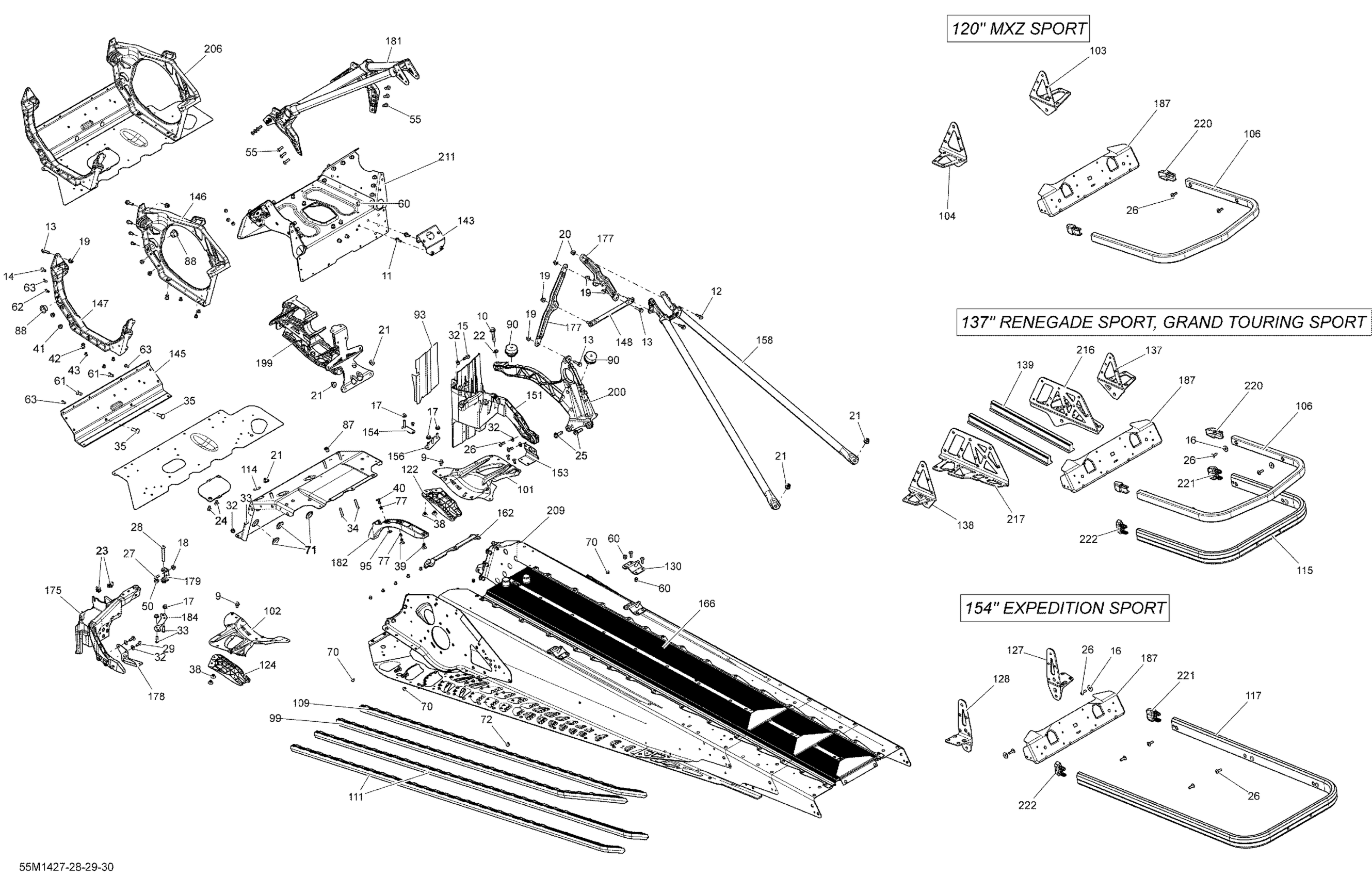

Ski-Doo MXZ SPORT 600ACE XP, 2014 Frame And Components _55M1427 Diagram
