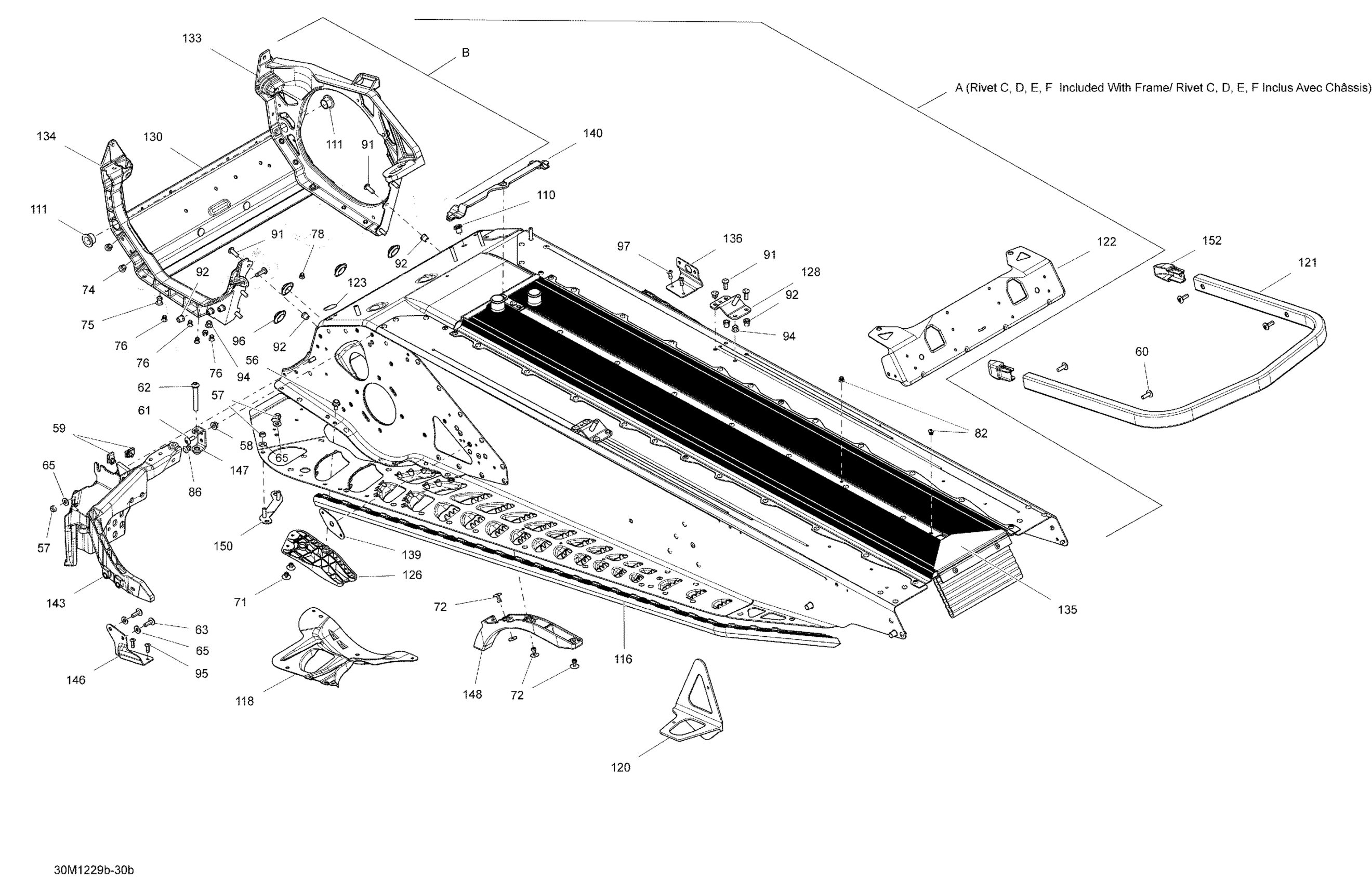

Ski-Doo MXZ Sport 600ACE LFF, 2012 Frame Diagram
#
56
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
57
Elastic Stop Nut M6
232561414
Unavailable
58
Hex. Flange Nut M6
233061414
Unavailable
59
Panel Nut M5 X 0.8
250000958
Unavailable
60
Torx Screw M6 X 1.0 X 18, Scotch Grip
250000779
Unavailable
61
Tork Screw M6 X 16
250000534
Unavailable
62
Torx Screw M8 X 55
250000535
Unavailable
63
Tork Screw M6 X 18
250000536
Unavailable
65
Flat Washer
250200039
Unavailable
76
Stavex Rivet
293150144
Unavailable
78
Stavex Rivet
293150144
Unavailable
82
Stavex Rivet
293150144
Unavailable
86
Ornit Rivet 6,5 X 14.5
293150266
Unavailable
91
Hex. Flange Screw M6 X 20
207662044
Unavailable
92
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
96
Black, Plug
293730052
Unavailable
97
Pop Rivet 3/16"
390402300
Unavailable
110
Insert
293450275
Unavailable
111
Leg Bushing
505072690
Unavailable
116
RH Roller
518324812
Unavailable
116
LH Roller
518324813
Unavailable
118
RH Reinforcement
518324874
Unavailable
118
LH Reinforcement
518324875
Unavailable
120
RH Slide Bracket
518324885
Unavailable
120
LH Slide Bracket
518324886
Unavailable
121
Clear Rear Bumper
518324980
Unavailable
122
Rear Cap
518327105
Unavailable
123
Adhesive Patch
518325560
Unavailable
126
RH Deflector, Black Polypropylene
518325782
Unavailable
126
LH Deflector, Black Polypropylene
518325783
Unavailable
128
RH Rear Base
518325973
Unavailable
128
LH Rear Base | Includes 10v to 10x
518325974
Unavailable
135
Rear Radiator Ass'y
518326666
Unavailable
136
RH Support | LT
518326482
Unavailable
140
Seal
518326656
Unavailable
143
LH Stirup
518326820
Unavailable
146
Support
518326960
Unavailable
147
U-Attach
518326961
Unavailable
148
Front Tunnel Protector | Includes 1700 to 1700a
518326973
Unavailable
150
Attach | Includes 10n to 10p
518326986
Unavailable
152
Full Moon Cap
520000567
Unavailable
A
FRAME 120 LFF - Call your local BRP dealership
415129826
Unavailable
B
E-MODULE - Call your local BRP dealership | Includes 2 to 10
518327569
Unavailable
C
Avex Rivet
390909200
Unavailable
E
Henrob Rivet
293150146
Unavailable
F
Stavex Rivet
293150144
Unavailable
