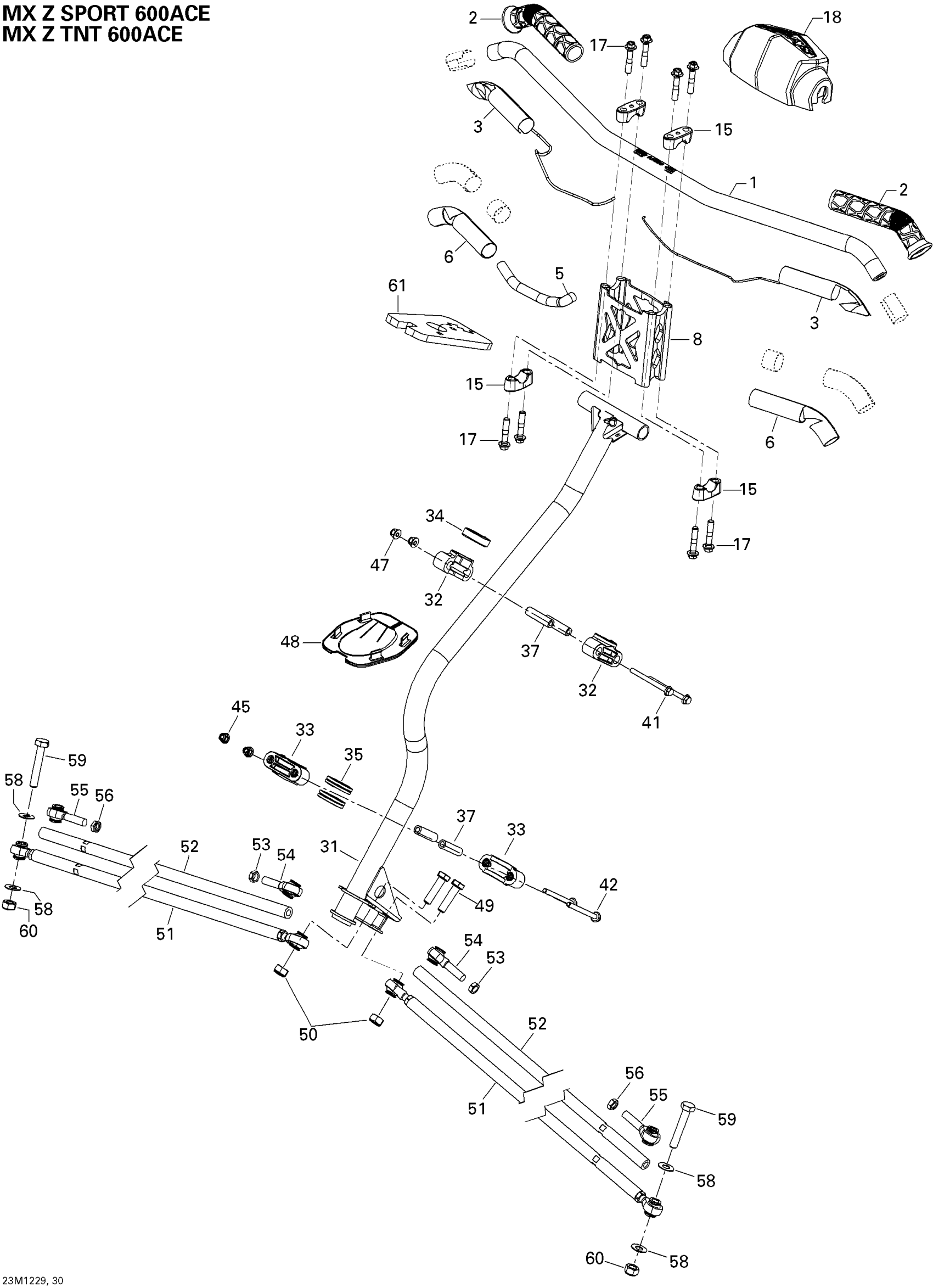

Ski-Doo MXZ Sport 600ACE LFF, 2012 Steering Diagram
#
Description
Price
1
BLACK HANDLE BAR - Call your local BRP dealership
506152710
Unavailable
3
Heating Element 20W
506152484
Unavailable
5
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
219704427
Unavailable
6
Insulant
506152360
Unavailable
8
Handlebar Extension Kit (115mm) This part replaces 506152571.
860200819
Unavailable
17
Hex. Flange Screw M8 X 40
250000352
Unavailable
18
Steering Pad
506152192
Unavailable
35
Lower Vibration Ring
506152518
Unavailable
37
Housing Bushing
506152297
Unavailable
42
Hex. Flange Screw M6 X 70
207667044
Unavailable
45
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
47
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
51
Not Available As Spare Part - Friction Washer
Unavailable
54
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
56
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
59
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
