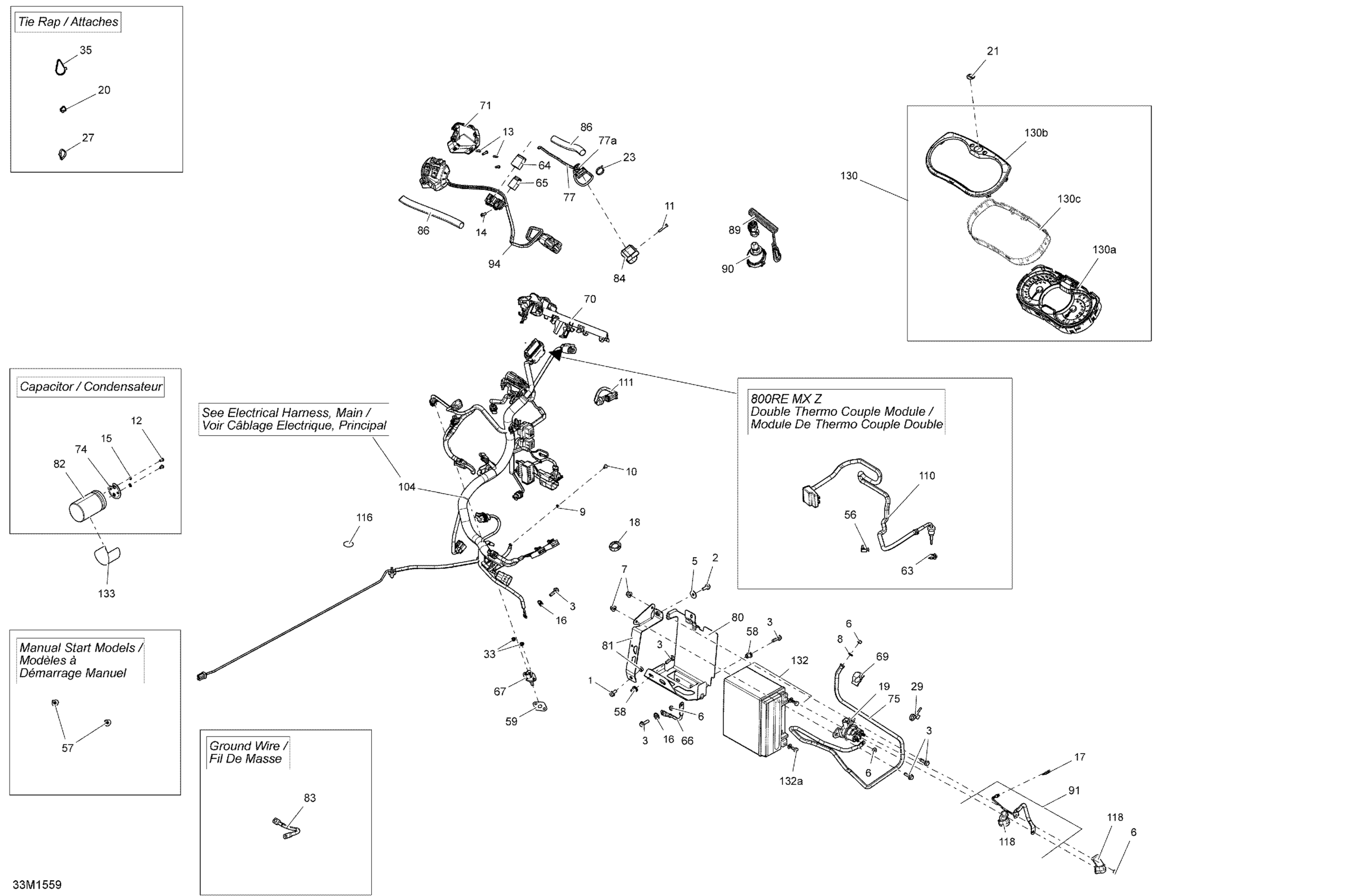

Ski-Doo MXZ IRON DOG 800R E-TEC, 2015 Electrical System 800RETEC_33M1559 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12

207661244

Unavailable

2

Hex. Flange Screw M6 X 16

207661644

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

5

Flat Washer

224061201

Unavailable

6

Elastic Stop Nut M6

232561434

$1.55

7

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

8

Flat Washer 6 mm

234061410

Unavailable

9

Lock Washer 4 mm

234141601

Unavailable

10

Torx Screw M4 X 8

250000127

$1.09

11

Torx Screw #8-18

250000263

$1.02

12

Socket Head Screw M10 X 32

250000462

$2.06

13

Torx Screw

250000671

Unavailable

14

Pan Screw Forming, 7500C

250000690

Unavailable

15

Lock washer | Quest XT 650.

250200026

$1.83

16

Lock Washer Serrated M6

250200041

Unavailable

17

Fuse, 25 Amperes

278001443

Unavailable

18

Safety Nut (DESS Switch)

278002963

$2.72

19

Starter Relay

278003012

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

21

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

23

Tie Wrap 142 mm

293750002

Unavailable

27

Tie Wrap 368 mm

293750008

$0.85

29

Tie-Rap 173 mm

293750009

Unavailable

33

Push Nut

389804300

$0.43

35

Tie-Rap 180 mm

414115200

$0.09

56

Clip

414227300

$1.45

57

Black, Dart

414644300

$0.78

58

Insert

293450275

Unavailable

59

Seal

508000769

$5.22

63

Tab Lock

514055100

$6.28

64

Male Terminal Housing, 6 Circuits

515175662

Unavailable

65

Male Terminal Housing, 4 Circuits

515175846

$8.57

66

Ground Wire

515176358

Unavailable

67

Air Temperature Sensor

515176366

$18.43

69

Clip

515177066

$4.00

70

Connector Plate

515177134

$14.02

71

Housing Plate

515177147

$17.66

74

Cap

515177193

$4.43

75

Battery/Starter Wire

515177208

Unavailable

77

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

77a

Male Terminal

515175232

$1.49

80

Battery Support

515177264

Unavailable

81

Battery Strip

515177266

Unavailable

82

Capacitor

515177272

Unavailable

83

Ground Wire

515177289

Unavailable

84

Emergency Stop Switch Support

515177310

$8.60

86

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

89

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

Unavailable

90

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

91

Fuse Battery Wire

515177576

Unavailable

94

LH Switch Housing

515178197

$259.20

104

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To VSS

515177749

$435.35

110

Kit Module *Egts Module Kit Sing This part replaces 515177759.

415130000

Unavailable

111

Temperature Sensor This part replaces 420664508.

420664509

Unavailable

116

Adhesive Patch

518325560

Unavailable

118

Protector Cap

710000495

Unavailable

130

Speedometer | Includes 10 to 10c

515177910

$615.35

130a

Speedometer Button | XTP

415129355

Unavailable

130b

Gauge Ring

415129348

Unavailable

130c

Lens | XTP

415129349

Unavailable

132

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

132a

Battery Bolt Kit

250000282

$2.95

133

Capacitor Decal

516006206

$8.49
