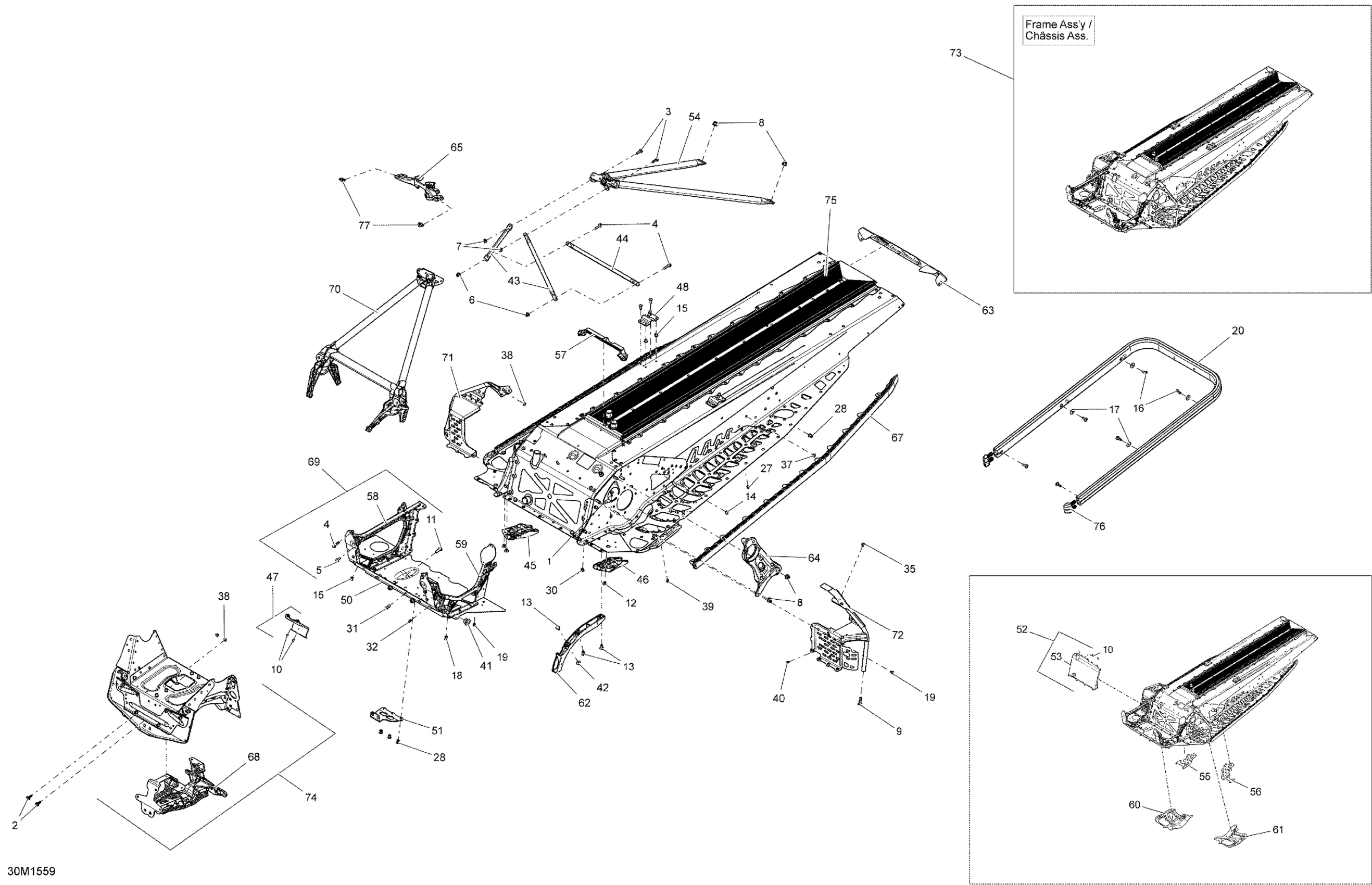

Ski-Doo MXZ IRON DOG 600HO E-TEC, 2015 Frame _30M1559 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

2

Hex. Flange Screw M6 X 16

207661644

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

4

Hex. Flange Screw M6 X 25

207662544

Unavailable

5

Hex. Flange Screw M6 X 16

210261650

$1.22

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

8

Hex. Flange Elastic Nut M8

233281414

Unavailable

9

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

10

Clinch Stud M6 X 20

250300027

$1.92

11

Clinch Stud

250300038

Unavailable

12

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

13

Pop Rivet 3/16”

293150108

$1.23

14

Black, Dart 10 mm

293730060

Unavailable

15

Hemlock Rivet, 6.5 mm

293150119

$4.00

16

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

17

Flat Washer

224061201

Unavailable

18

Hemlock Rivet 6.5 mm

293150120

$7.23

19

Stavex Rivet

293150144

Unavailable

20

Black Rear Bumper, 154"

518326611

$123.05

27

Henrob Rivet

293150146

Unavailable

28

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

30

Hemlock Rivet, 6.4 mm

293150174

$6.43

31

Monobolt Rivet 6.4

293150182

$2.91

32

Monobolt Rivet, 4.8 mm

293150191

Unavailable

35

Insert M5 X 0.8

293450268

Unavailable

37

Black, Dart 8 mm

293730047

Unavailable

38

Full Moon Dart 5 mm

293730042

Unavailable

38

Black Dart 5 mm

293730053

Unavailable

39

Avex Rivet

390909100

$0.29

40

Avex Rivet

390909200

Unavailable

41

Leg Cushion

505073317

Unavailable

42

Washer

517124300

Unavailable

43

Upper Lateral Column Support

518325114

Unavailable

44

Center Column Support

518325115

Unavailable

45

RH Deflector, Black Polypropylene

518325782

Unavailable

46

LH Deflector, Black Polypropylene

518325783

Unavailable

47

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

48

RH Rear Base

518325973

Unavailable

48

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

50

Front Member

518326198

$59.97

51

MODULE REINFORCEMENT - Call your local BRP dealership

518326466

Unavailable

52

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

53

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

54

Rear Member

518326559

Unavailable

55

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

56

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

57

Seal

518326656

Unavailable

58

RH Member

518326795

Unavailable

59

LH Member

518326796

$210.74

60

RH Reinforcement, Running Board

518326937

$25.35

61

LH Reinforcement, Running Board

518326938

$25.35

62

Front Tunnel Protector | Includes 1700 to 1700a

518326973

Unavailable

63

Rear Cap

518327105

Unavailable

64

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

65

Sub A Support

518327145

$79.20

67

RH Roller | Package Iron Dog

518327200

$152.28

67

LH ROLLER - Call your local BRP dealership | Package Iron Dog

518327201

Unavailable

68

Front Suspension Support

518327487

Unavailable

69

E Module | Includes 10n to 10at

518327567

Unavailable

70

Front Member

518327565

$316.12

71

RH Stirup

518327841

$166.12

72

LH Stirup

518327937

$166.12

73

FRAME IRON - Call your local BRP dealership | Package Iron Dog

415130123

Unavailable

74

Module S | P-XRSID

518328573

Unavailable

75

REAR RADIATOR 128'' - Call your local BRP dealership

518328648

Unavailable

76

Black RH Cap

520000965

$8.97

76

Black LH Cap

520000964

$8.97

77

Panel Nut M5 X 0.8

250000958

Unavailable
