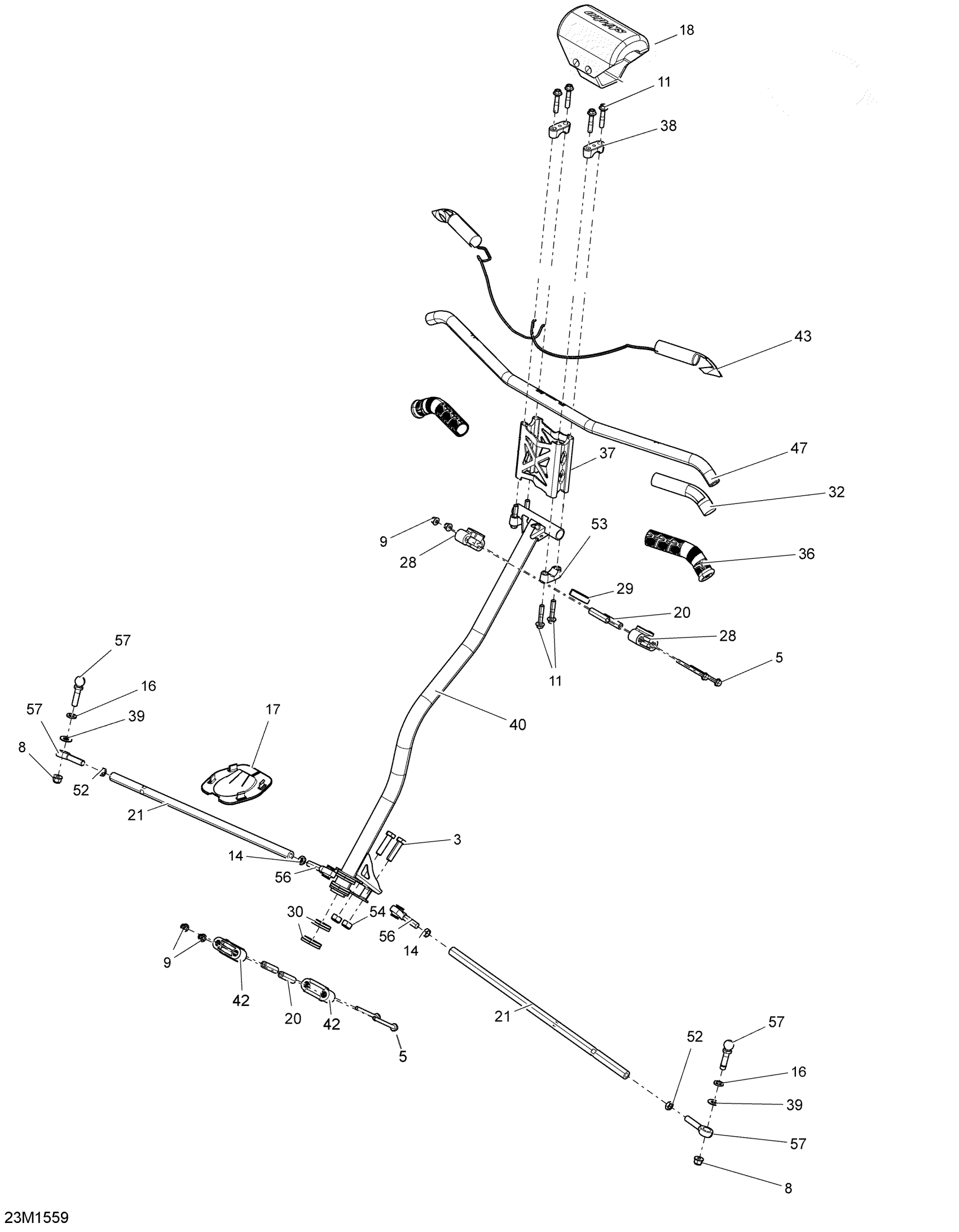

Ski-Doo MXZ IRON DOG 600HO E-TEC, 2015 Steering _23M1559 Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

5

Hex. Flange Screw M6 X 70

207667056

$3.61

8

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

9

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

11

Hex. Flange Screw M8 X 40

250000352

Unavailable

14

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

16

Washer

503192496

Unavailable

17

Plate

506152163

$10.23

18

Deep Black, Steering Pad

506152541

$42.28

20

Housing Bushing

506152297

Unavailable

21

Tie-Rod Ass'y

506152496

$59.97

28

Upper Half-Housing

506152508

$7.40

29

Upper Anti-Vibration Gasket

506152509

$4.52

30

Lower Vibration Ring

506152518

Unavailable

32

Thermal Insulation

506153176

Unavailable

36

Grip 148mm

506152560

Unavailable

37

Black Handlebar Extension (130mm) | Package Extreme

506152616

$141.51

38

Steering Support | Includes 40 to 40a

506152751

$10.09

39

Washer

506152582

Unavailable

40

Steering Column

506152962

$189.20

42

Lower Half-Housing | Package XRS

506152588

$9.98

43

Heating Element 32 Watt 2 Wires

506152758

$43.82

47

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

52

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

53

Steering Support | Includes 40 to 40a

506152751

$10.09

54

Elastic Locking Nut M10

233601466

Unavailable

56

LH Thread Ball Joint

506152081

$39.97

57

RH Threaded Ball Joint

506152684

Unavailable
