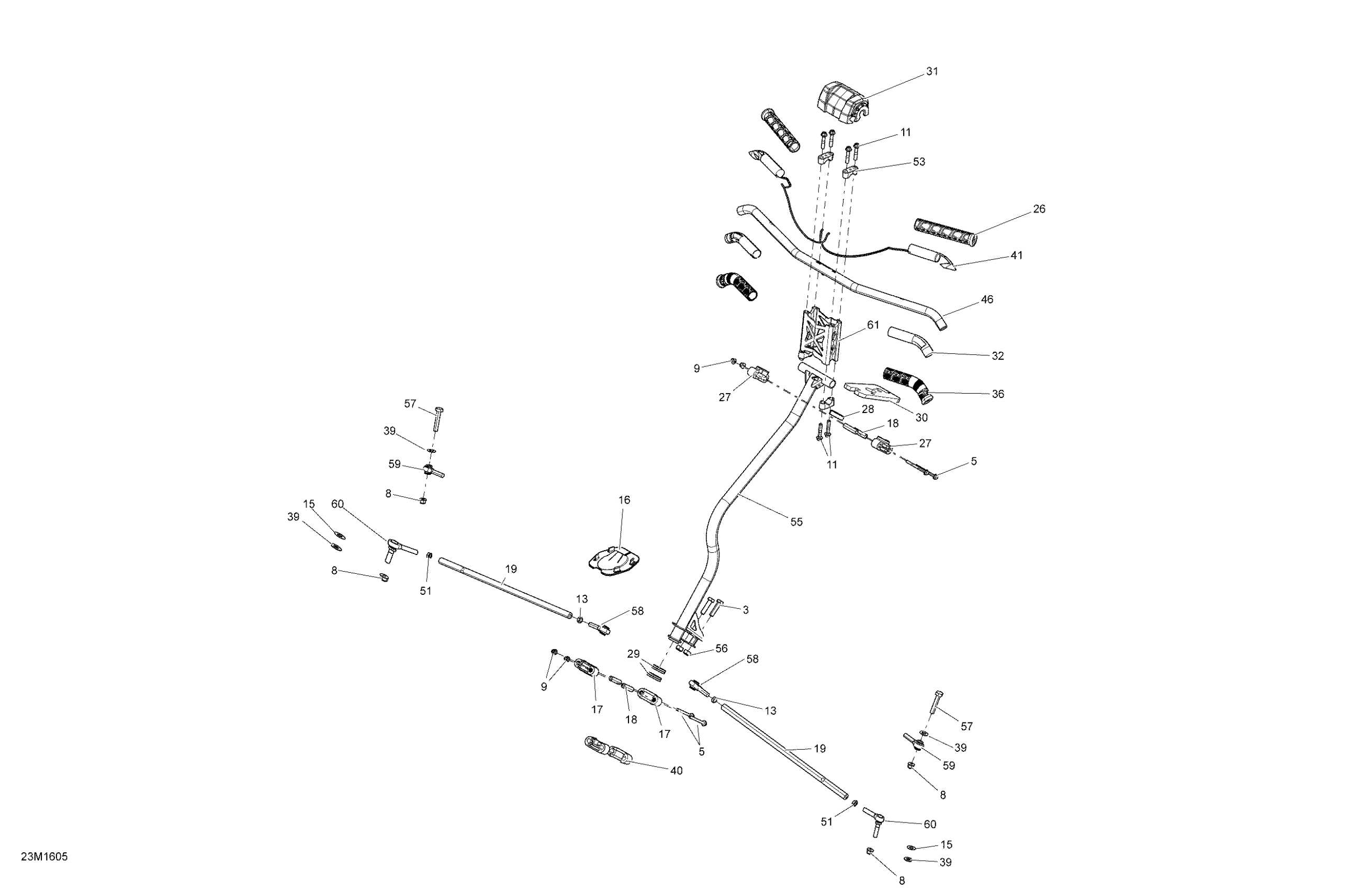

Ski-Doo MXZ 600 CARB 000BHGA00 000BHGB00 Steering Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

5

Hex. Flange Screw M6 X 70

207667056

$3.61

8

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

9

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

9

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

11

Hex. Flange Screw M8 X 40

250000352

Unavailable

13

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

15

Washer

503192496

Unavailable

16

Plate

506152163

$10.23

17

Lower Half-Housing

506152217

$5.57

18

Housing Bushing

506152297

Unavailable

19

Tie-Rod Ass'y

506152496

$59.97

26

Grip

506152486

$14.71

27

Upper Half-Housing

506152508

$7.40

28

Upper Anti-Vibration Gasket

506152509

$4.52

29

Lower Vibration Ring

506152518

Unavailable

30

Bushing

506152521

$13.60

31

Deep Black, Steering Pad

506152541

$42.28

32

Thermal Insulation

506153176

Unavailable

32

Isolant

506152611

$7.80

36

Grip 148mm

506152560

Unavailable

39

Washer

506152582

Unavailable

40

Lower Half-Housing | Package XRS

506152588

$9.98

41

Heating Element 32 Watt 3 Wires

506152798

$49.20

41

Heating Element 32 Watt 2 Wires

506152758

$43.82

46

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

51

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

53

Steering Support | Includes 40 to 40a

506152751

$10.09

55

Steering Column

506152962

$189.20

56

Elastic Locking Nut M10

233601466

Unavailable

57

Hex Screw M10 X 1.5 X 55

207005554

$6.18

58

LH Thread Ball Joint

506152081

$39.97

59

RH Threaded Ball Joint

506152019

$39.97

60

RH Threaded Ball Joint

506152684

Unavailable

61

Black Handlebar Extension (115mm) | Package TNT & Blizzard

506152570

$141.51

61

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

61

Black Handlebar Extension (130mm) | Package Extreme

506152616

$141.51
