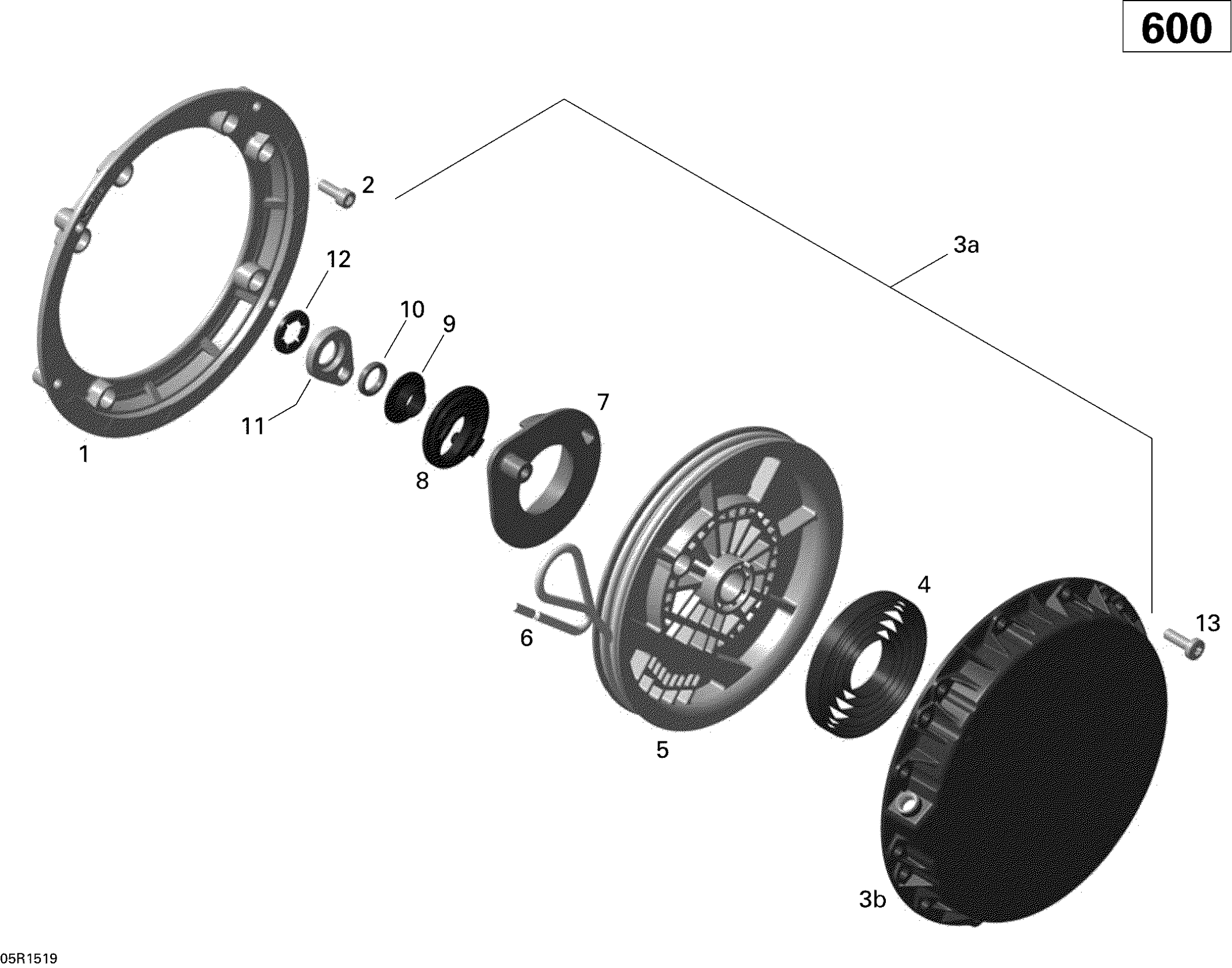

Ski-Doo MXZ 600 CARB 000BHGA00 000BHGB00 Rewind Starter - 600 CARB Diagram

#

Description

Price

1

Flange Connector

420810868

$86.12

2

Socket Head Screw M6 x 16

420241237

$1.85

3a

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$166.12

3b

Starter Housing

420910256

$89.20

4

Rewind Spring

420939115

$25.32

5

Rope Sheave

420852288

$39.97

6

Was 412500100 Rope-Starter

219704403

$10.15

7

Pawl

420852633

$32.28

8

Pawl Lock | Includes no. 8-9

420852640

$5.51

9

Stage Sleeve

420847926

$14.54

10

O-Ring

420250407

$1.85

11

Lock Ring

420852520

$8.34

12

Locking Element

420845560

$2.03

13

Torx Flange Screw M6 X 20

420441386

$2.06
