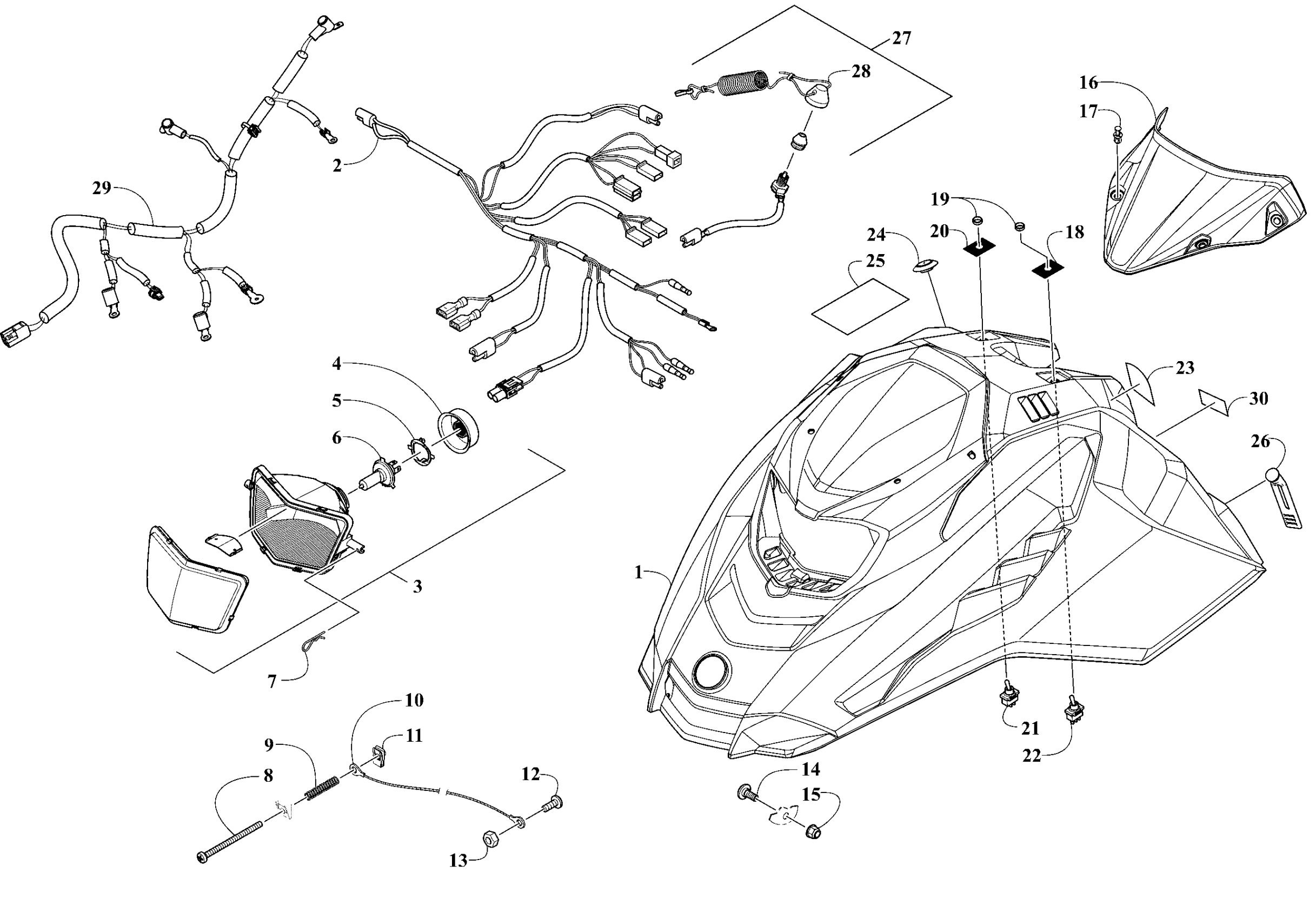

Ski-Doo MXZ 200 - Europe, 2026 Hood, Headlight and Windshield Diagram

#

Description
Price

1

Hood

7718-165

Unavailable

23

Decal Caution Battery

8621-366

Unavailable

23

Passenger Warning Decal

8621-367

Unavailable

24

Blanking Plug 1.25"

2623-277

$2.29

25

Hood Warning Decal

8621-365

Unavailable

2

Main Wiring Harness

1686-863

Unavailable

3

Headlight Ass'y

0609-964

Unavailable

4

Boot

0609-992

Unavailable

5

Retainer H/L

0409-097

Unavailable

6

Bulb H4 60/55 LL

0609-956

Unavailable

7

Hairpin Clip

0623-847

$1.12

8

Screw W/Nylon Patch M6X90

2623-256

$4.69

9

Adjuster SPring

0623-466

$7.29

10

Hood Cable

7606-964

$9.78

11

Type U Nut

0423-577

$0.50

12

Hex Screw Washer Head #10-24X5

0623-420

$0.50

13

Hex Lock Nut #10-24

8041-246

$0.40

14

Screw Shoulder M6-1.0

2623-042

$1.89

15

Hex Lock Nut M6X1.0

8427-603

$0.40

16

Windshield

1616-352

$39.95

17

Removable Rivet

H667790

$1.02

18

Headlight Decal

4621-652

$7.29

20

Decal Handwarmer

4621-653

$3.98

21

Toggle Switch SPST

0609-904

$28.95

19

Black, Knurled Nut

0609-905

$3.09

22

Headlight Switch

0609-920

Unavailable

19

Black, Knurled Nut

0609-905

$3.09

24

Blanking Plug 1.25"

2623-277

$2.29

26

Hold-Down Strap

1606-930

$13.39

27

Tether Switch Ass'y

0630-173

Unavailable

28

Tether Cord

0609-046

Unavailable

29

Electric Start Harness

1686-864

Unavailable

30

Deca EU E5/E10 GAS

6621-210

Unavailable
