Description

Price

10

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

20

Grip 148mm

506152560

Unavailable

25

Heating Element 32 Watt 3 Wires

506152798

$49.20

35

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

50

Thermal Insulation

506153176

Unavailable

400

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

410

Steering Support | Includes 40 to 40a

506152751

$10.09

420

Hex. Flange Screw M8 X 1.25 x 40

250000852

Unavailable

500

Deep Black, Steering Pad

506152541

$42.28

1000

Steering Column

506152962

$189.20

1010

Upper Half-Housing

506152508

$7.40

1012

Lower Half-Housing

506152217

$5.57

1014

Upper Anti-Vibration Gasket

506152509

$4.52

1016

Lower Vibration Ring

506152518

Unavailable

1022

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1050

Housing Bushing

506152297

Unavailable

1051

Hex. Flange Screw M6 X 70

207667056

$3.61

1060

Plate

506152163

$10.23

1220

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

1230

Elastic Locking Nut M10

233601466

Unavailable

1250a

Tie-Rod Ass'y

506152496

$59.97

1250b

LH Thread Ball Joint

506152081

$39.97

1250c

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

1250d

RH Threaded Ball Joint

506152019

$39.97

1250e

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

1280

Washer

506152582

Unavailable

1290

Hex Screw M10 X 1.5 X 55

207005554

$6.18

1300

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

1310

Bushing

506152521

$13.60

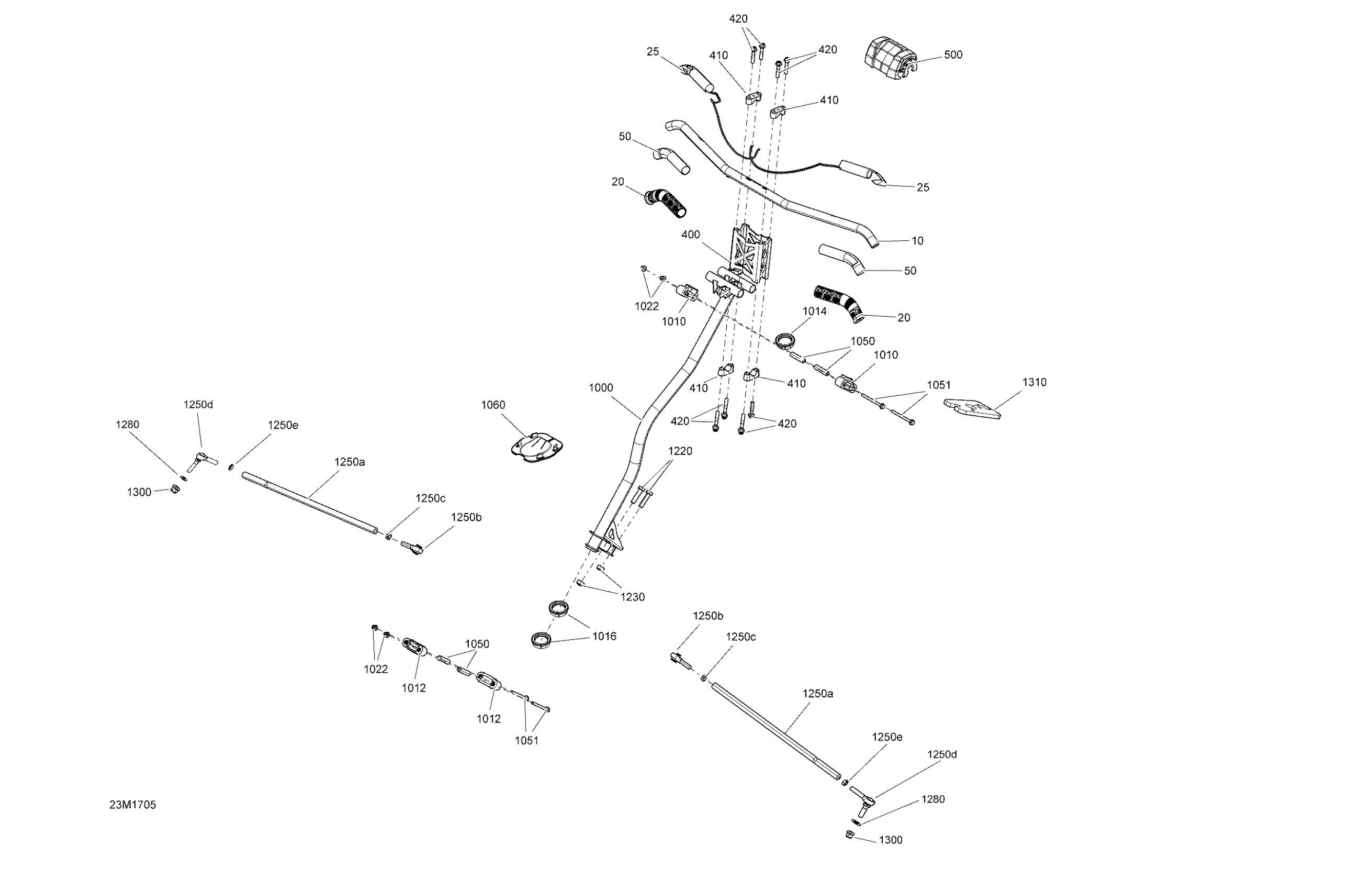

Ski-Doo MXZ - 2-STROKE - 600 CARB, 2017 Steering Diagram
