1980 Yamaha MX80 (MX80G) Stand-Footrest Diagram

← All diagrams

Find the part on the Stand-Footrest diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

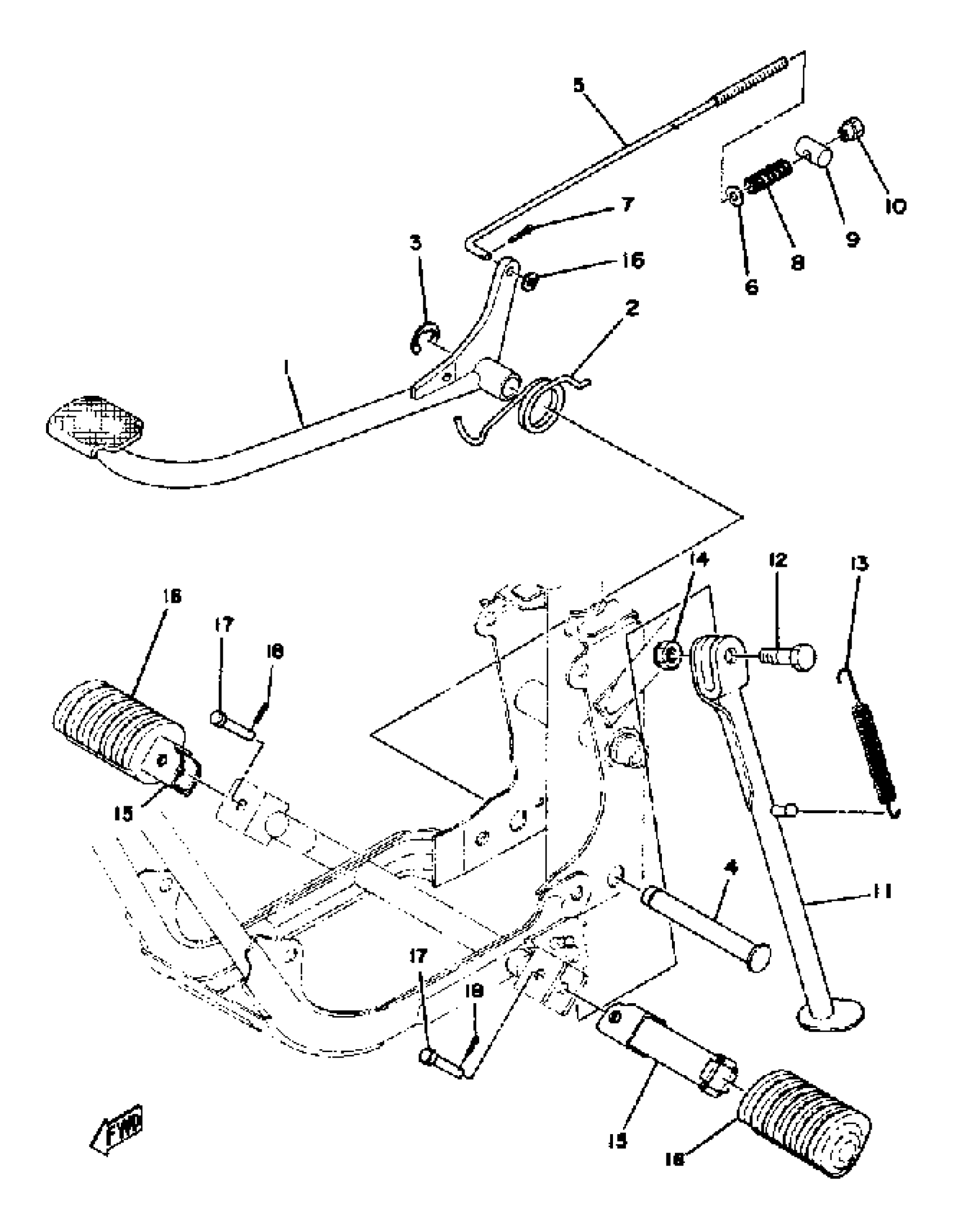

1980 Yamaha MX80 (MX80G) Stand-Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

2F4-27211-00-R4

1
Out of stock

2

SPRING 1832721600

90508-32056-00

1

$6.42

In stock

3

CIRCLIP (122)

93430-12008-00

1

$5.10

In stock

4

SHAFT, BRAKE PEDAL

2A3-27212-00-00

1
Out of stock

5

ROD, BRAKE

288-27231-00-00

1
Out of stock

6

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

9

PIN 1562723700

90249-12008-00

1

$4.70

In stock

10

NUT (25K)

90179-06411-00

1

$5.10

In stock

11

STAND, SIDE

367-27311-02-R4

1
Out of stock

12

BOLT 137273170000

90109-08031-00

1

$7.52

In stock

13

1

$9.80

In stock

14

NUT

90185-08055-00

1

$8.31

In stock

15

FOOT REST

214-27421-00-00

1

$31.00

In stock

16

COVER, FOOT REST

214-27413-00-00

—
Out of stock

17

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

18

PIN, COTTER

91490-20025-00

1

$1.31

In stock
