1980 Yamaha MX80 (MX80G) Shift CAM-Fork Diagram

← All diagrams

Find the part on the Shift CAM-Fork diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

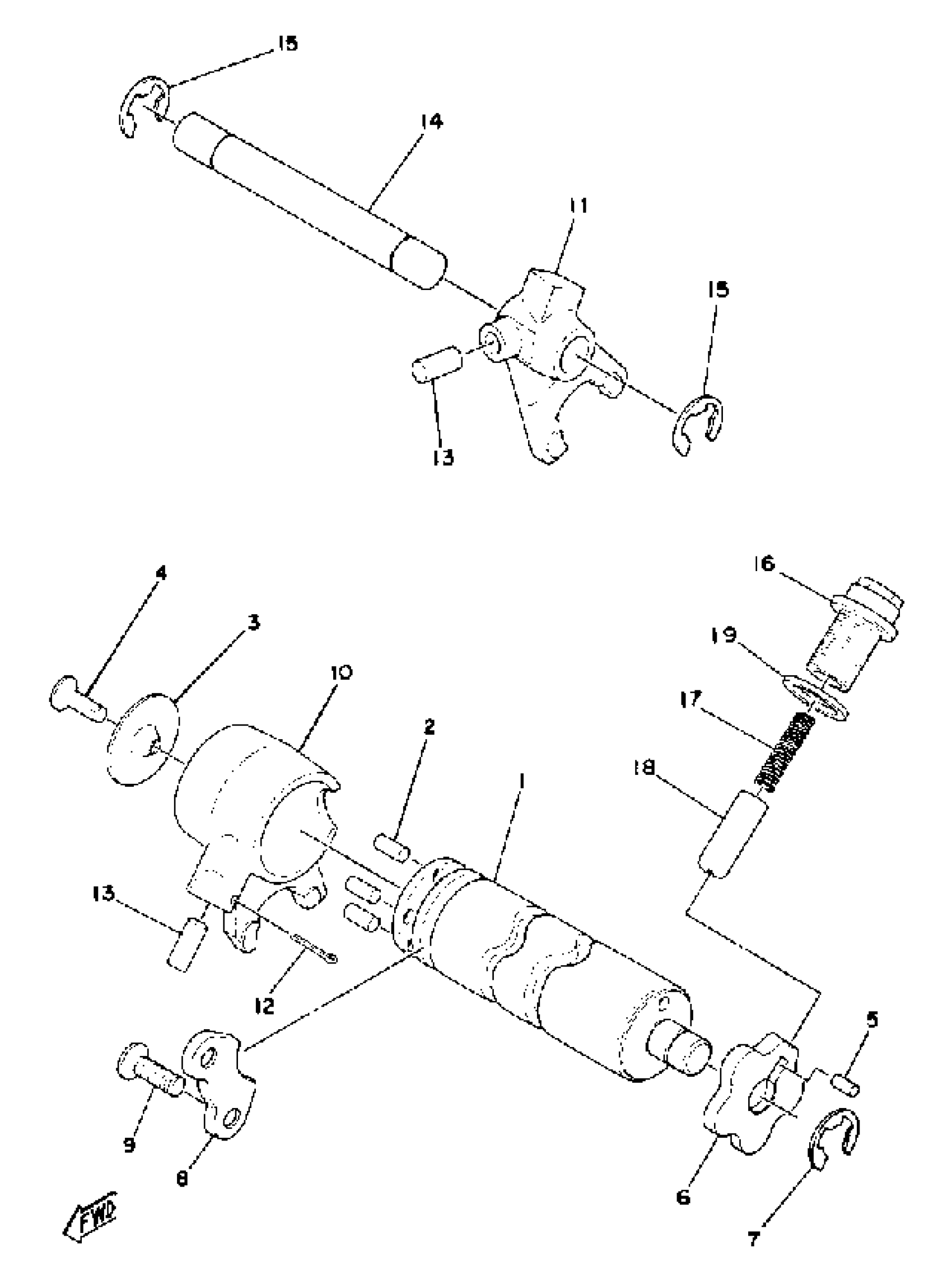

1980 Yamaha MX80 (MX80G) Shift CAM-Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

4U1-18540-00-00

1
Out of stock

2

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

3

PLATE, SIDE 1

214-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05012-00

1
Out of stock

5

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

6

PLATE, STOPPER

(374-18141-00-00)

1
Out of stock

7

CIRCLIP, OUTER

93440-12026-00

1
Out of stock

8

PLATE, STOPPER 2

353-18562-00-00

1
Out of stock

9

SCREW, FLAT HEAD

98780-06014-00

1

$3.54

In stock

10

FORK, SHIFT 1

353-18511-01-00

1
Out of stock

11

FORK, SHIFT 2

353-18512-01-00

1
Out of stock

12

PIN, COTTER

91490-25020-00

1

$2.94

In stock

13

PIN,DOWEL(296)

93606-14081-00

1
Out of stock

14

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

1
Out of stock

15

CIRCLIP

99006-10600-00

1

$6.91

In stock

16

BOLT (1K8)

90109-14485-00

—
Out of stock

17

SPRING, COMPRESSION

90501-09292-00

1
Out of stock

18

STOPPER, CAM

353-18547-00-00

1
Out of stock

19

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock
