1975 Yamaha MX400 (MX400B) Transmission Diagram

← All diagrams

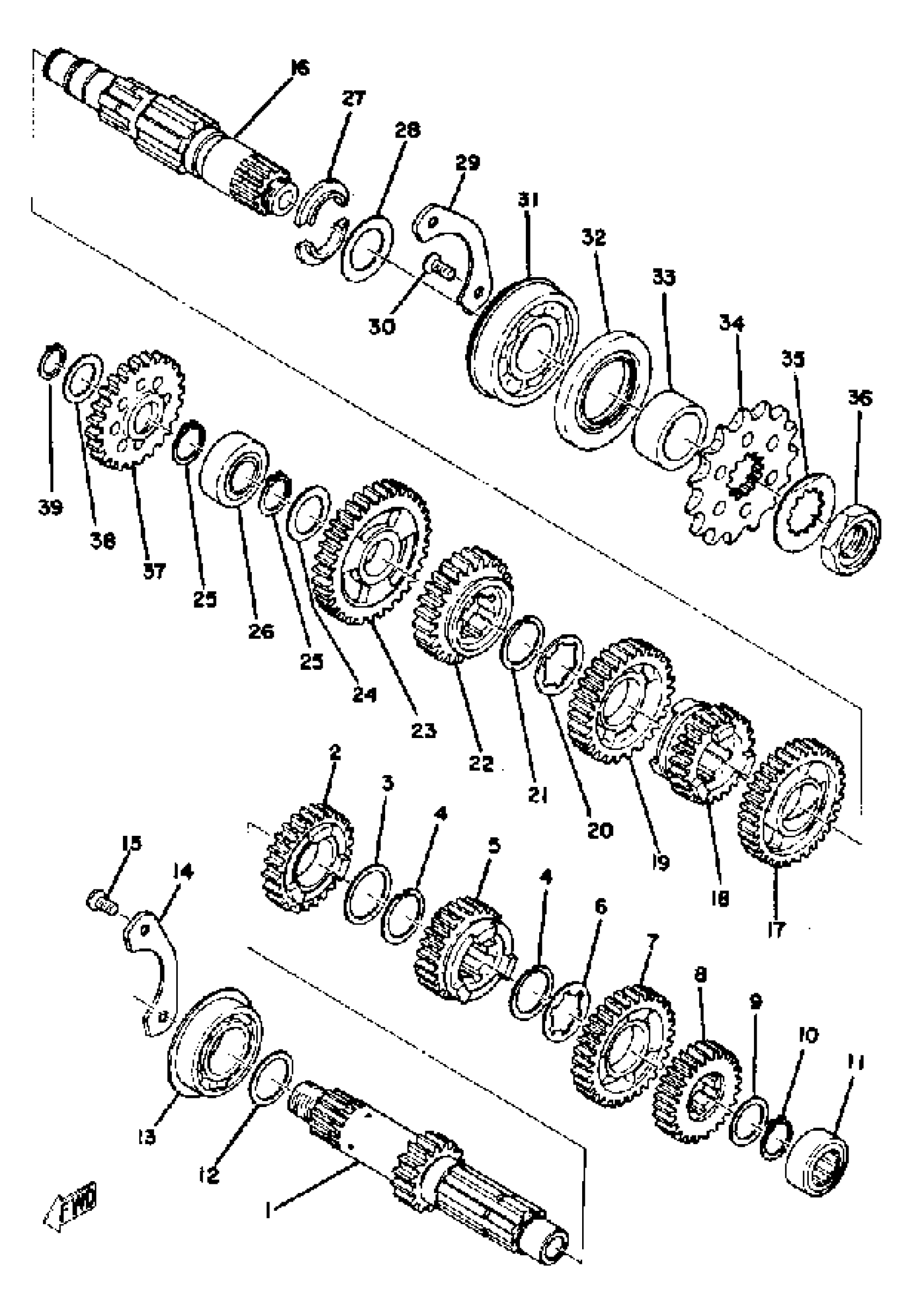

Find the part on the Transmission diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha MX400 (MX400B) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(499-17411-00-00)

1
Out of stock

2

GEAR, 4TH PINION (26T)

509-17141-00-00

1
Out of stock

3

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

GEAR, 3RD PINION

(510-17131-00-00)

1
Out of stock

6

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

7

GEAR, 5TH PINION

450-17151-00-00

1
Out of stock

8

GEAR, 2ND PINION

450-17121-00-00

1
Out of stock

9

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

10

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

11

BEARING

93311-42077-00

1
Out of stock

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

13

BEARING (93306-20515)

93306-20535-00

1
Out of stock

14

PLATE, BRNG COVER

(363-15383-00-00)

1
Out of stock

15

SCREW, FLAT

98707-06014-00

—
Out of stock

16

AXLE, DRIVE

(498-17421-01-00)

1
Out of stock

17

GEAR, 2ND WHEEL

(499-17221-00-00)

1
Out of stock

18

GEAR, 5TH WHEEL

(498-17251-00-00)

1
Out of stock

19

GEAR, 3RD WHEEL

(499-17231-00-00)

1
Out of stock

20

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

21

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

22

GEAR, 4TH WHEEL

(438-17241-00-00)

1
Out of stock

23

. GEAR, 1ST WHEEL

214-17211-60-00

1
Out of stock

24

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

25

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

26

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

—
Out of stock

27

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock

28

UNAVAILABLE IN PRICE BOOK

168-14280-10-3

1
Out of stock

28

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

29

PLATE, BRNG COVER

509-15381-00-00

1
Out of stock

30

SCREW, FLAT

98707-06014-00

—
Out of stock

31

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

—
Out of stock

32

OIL SEAL (35X62X6-371)

93102-35109-00

—
Out of stock

33

COLLAR

(90387-25193-00)

1
Out of stock

34

SPROCKET, DRIVE (13T)

9383E-13216-00

—
Out of stock

34

SPROCKET, DRIVE (14T)

9383E-14215-00

—

$20.42

In stock

34

SPROCKET, DRIVE

4DN-17460-00-00

—

$50.31

In stock

35

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

36

NUT 152174630000

90179-18020-00

—
Out of stock

37

GEAR, KICK IDLE

(498-15651-02-00)

1
Out of stock

38

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

39

CIRCLIP(1EY)

99009-17400-00

—
Out of stock
