1973 Yamaha MX360 (MX360) Frame - Side Cover Diagram

← All diagrams

Find the part on the Frame - Side Cover diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

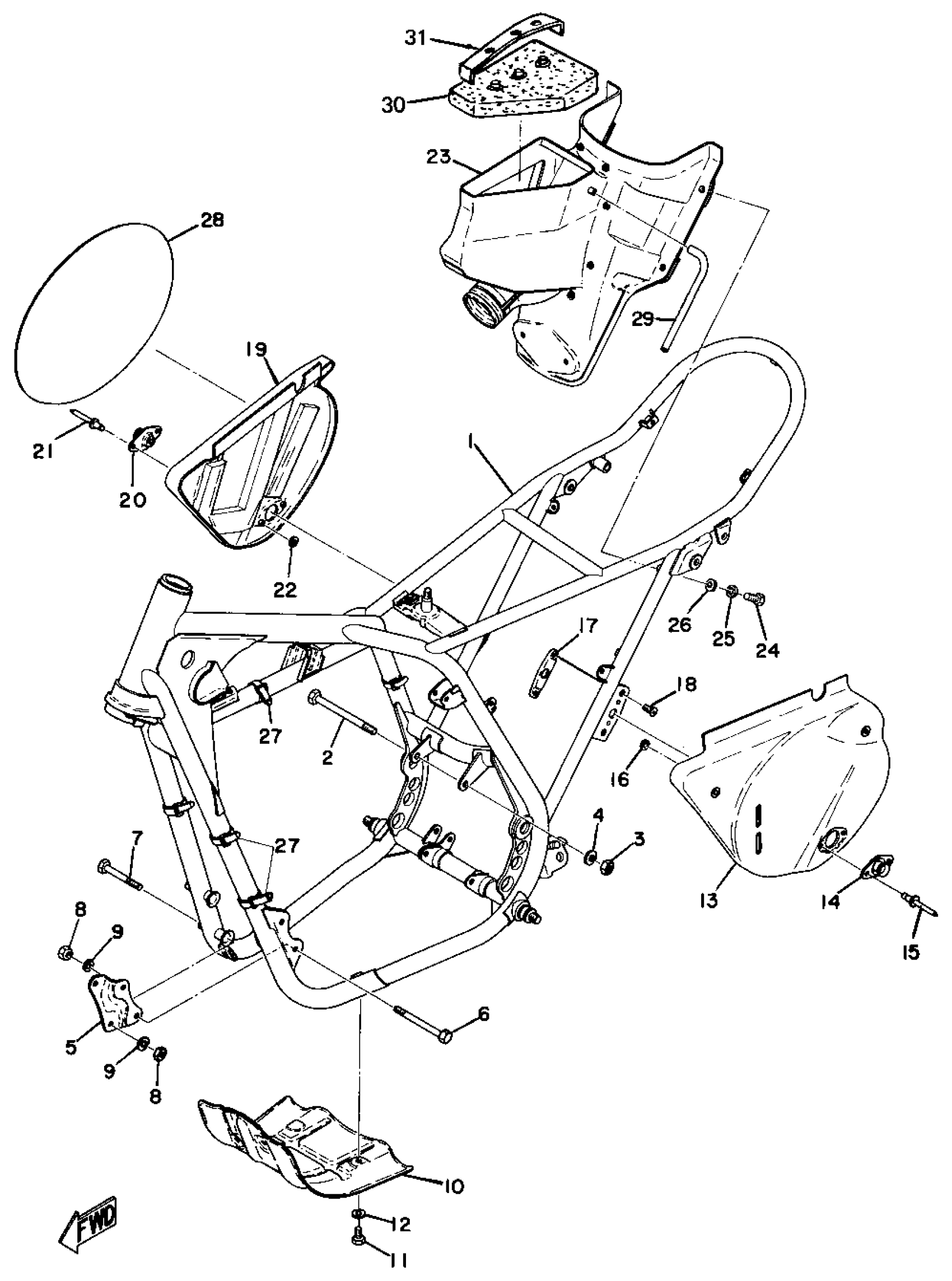

1973 Yamaha MX360 (MX360) Frame - Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO LONGER AVAILABLE

363-21110-00-33

1
Out of stock

2

—

$11.26

In stock

3

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

4

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

5

BRACKET, FRT UPR 2

(438-21416-01-33)

1
Out of stock

6

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

7

BOLT,HEXAGON

97027-08080-00

—

$3.37

In stock

8

NUT, HEXAGON

90170-08031-00

1
Out of stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

PROTECTOR, ENGINE

363-21471-00-00

1
Out of stock

11

BOLT (661)

97013-06012-00

1

$4.71

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

COVER, SIDE 1

(363-21711-01-01)

1
Out of stock

13

COVER, SIDE 1

(363-21711-01-02)

1
Out of stock

14

FASTENER, SIGN

(363-21189-00-00)

1
Out of stock

15

RIVET,BLIND

90267-40080-00

1
Out of stock

16

WASHER

90201-04015-00

—
Out of stock

17

NUT, PLATE

363-21736-00-00

1
Out of stock

18

SCREW, FLAT

98707-04010-00

—
Out of stock

19

COVER, SIDE 2

(363-21721-01-Y1)

1
Out of stock

19

COVER, SIDE 2

(363-21721-10-00)

1
Out of stock

20

RIVET,BLIND

90267-40080-00

1
Out of stock

21

RIVET,BLIND

90267-40080-00

1
Out of stock

22

WASHER

90201-04015-00

—
Out of stock

23

BOX, AIR CLEANER

(363-21240-02-00)

1
Out of stock

23

BOX, AIR CLEANER

(363-21240-03-00)

1
Out of stock

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

27

BAND

341-26397-01-00

1
Out of stock

28

EMBLEM

322-23395-00-00

1
Out of stock

29

HOSE (363-21766-00)

90445-09080-00

1
Out of stock

30

SEAL

(363-21269-00-00)

1
Out of stock

31

PATCH 1

(363-21256-00-00)

1
Out of stock
