1975 Yamaha MX250 (MX250B) Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1975 Yamaha MX250 (MX250B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

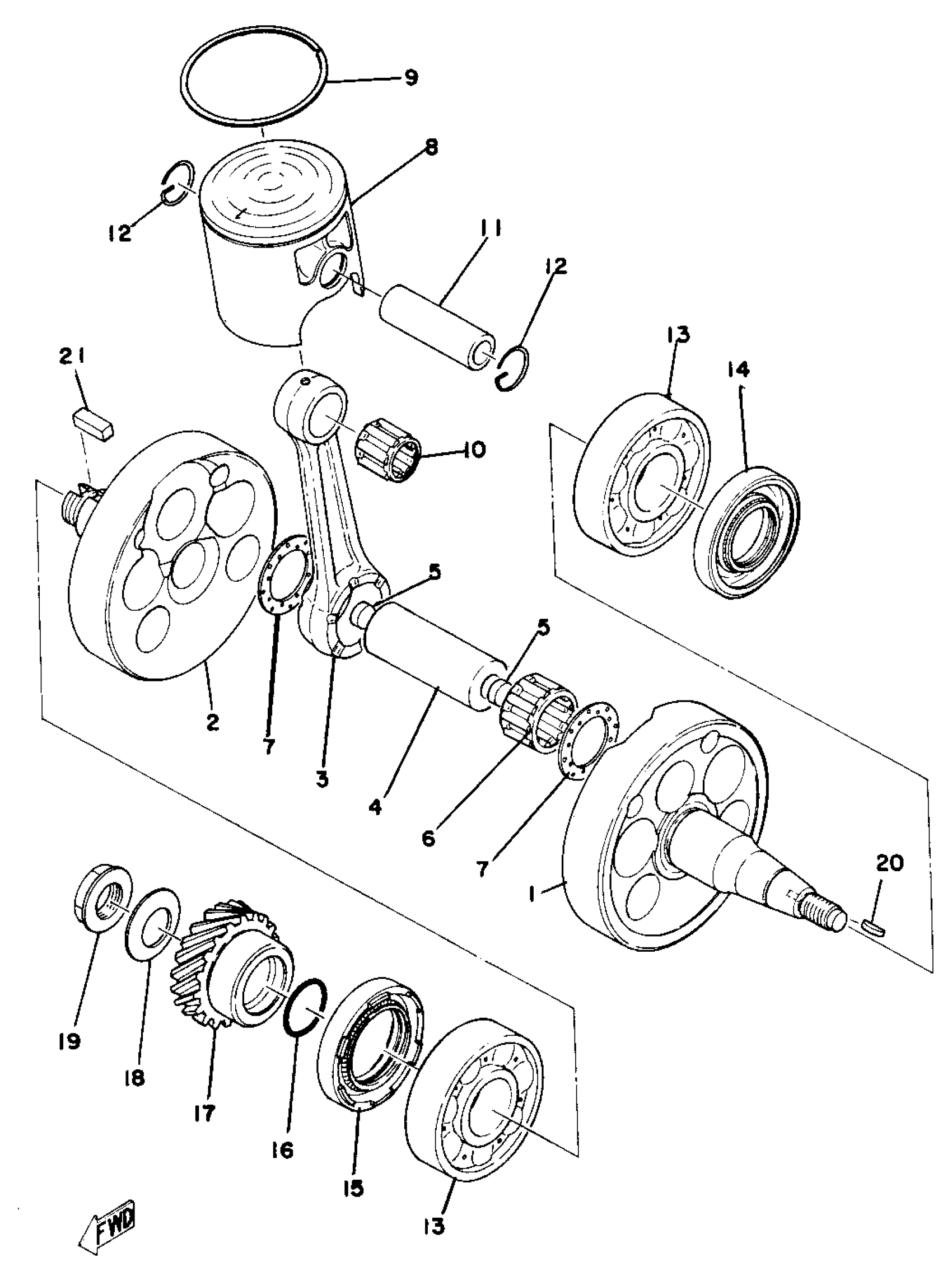

1975 Yamaha MX250 (MX250B) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(509-11400-00-00)

1
Out of stock

1

CRANK 1

(509-11412-00-00)

1
Out of stock

2

. NO LONGER AVAILABLE

509-11422-01-00

1
Out of stock

2

PISTON KIT STD

(509-11630-00-00)

1
Out of stock

2

PISTON KIT 1ST

(509-11630-10-00)

1
Out of stock

2

PISTON KIT 2ND

(509-11630-20-00)

1
Out of stock

2

PISTON KIT 3RD

(509-11630-30-00)

1
Out of stock

2

NO LONGER AVAILABLE

509-11630-40-00

1
Out of stock

3

.. ROD, CONNECTING

498-11651-00-00

1
Out of stock

4

PIN, CRANK

2X4-11681-00-00

1

$73.68

In stock

5

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

6

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

7

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

8

PISTON STD (69.96MM STD)

509-11631-01-96

1
Out of stock

8

PISTON 1 O/S 0.25 (70.25MM 1ST O.S.)

509-11635-01-00

1
Out of stock

8

PISTON 2 O/S 0.50 (70.50MM 2ND O.S.)

509-11636-01-00

1
Out of stock

8

PISTON 3 O/S 0.75 (70.75MM 3RD O.S.)

509-11637-01-00

1
Out of stock

8

PISTON 4 O/S 1.00 (71.00MM 4TH O.S.)

509-11638-01-00

1
Out of stock

9

RING, PISTON STD

313-11611-00-00

1
Out of stock

9

RING, PISTON 1ST

313-11611-10-00

1
Out of stock

9

RING, PISTON 2ND

313-11611-20-00

1
Out of stock

9

RING, PISTON 3RD (3RD O.S.)

313-11611-30-00

1
Out of stock

9

RING, PISTON 4TH (4TH O.S.)

313-11611-40-00

1
Out of stock

10

—

$32.87

In stock

11

PIN, PISTON

214-11633-00-00

—

$27.84

In stock

12

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

13

BEARING (5X5)

93306-20627-00

—

$66.08

In stock

14

OIL SEAL(38V)

93103-30150-00

—

$19.71

In stock

15

OIL SEAL (434)

93103-40091-00

—

$27.25

In stock

16

O-RING (498)

93210-29282-00

—
Out of stock

17

GEAR, PRI DRIVE

(509-16111-00-00)

1
Out of stock

18

SPRING

214-16119-00-00

—
Out of stock

19

NUT (498)

90179-18172-00

—
Out of stock

20

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

21

KEY, STRAIGHT (498)

90282-07019-00

—

$8.69

In stock
Crankcase →
