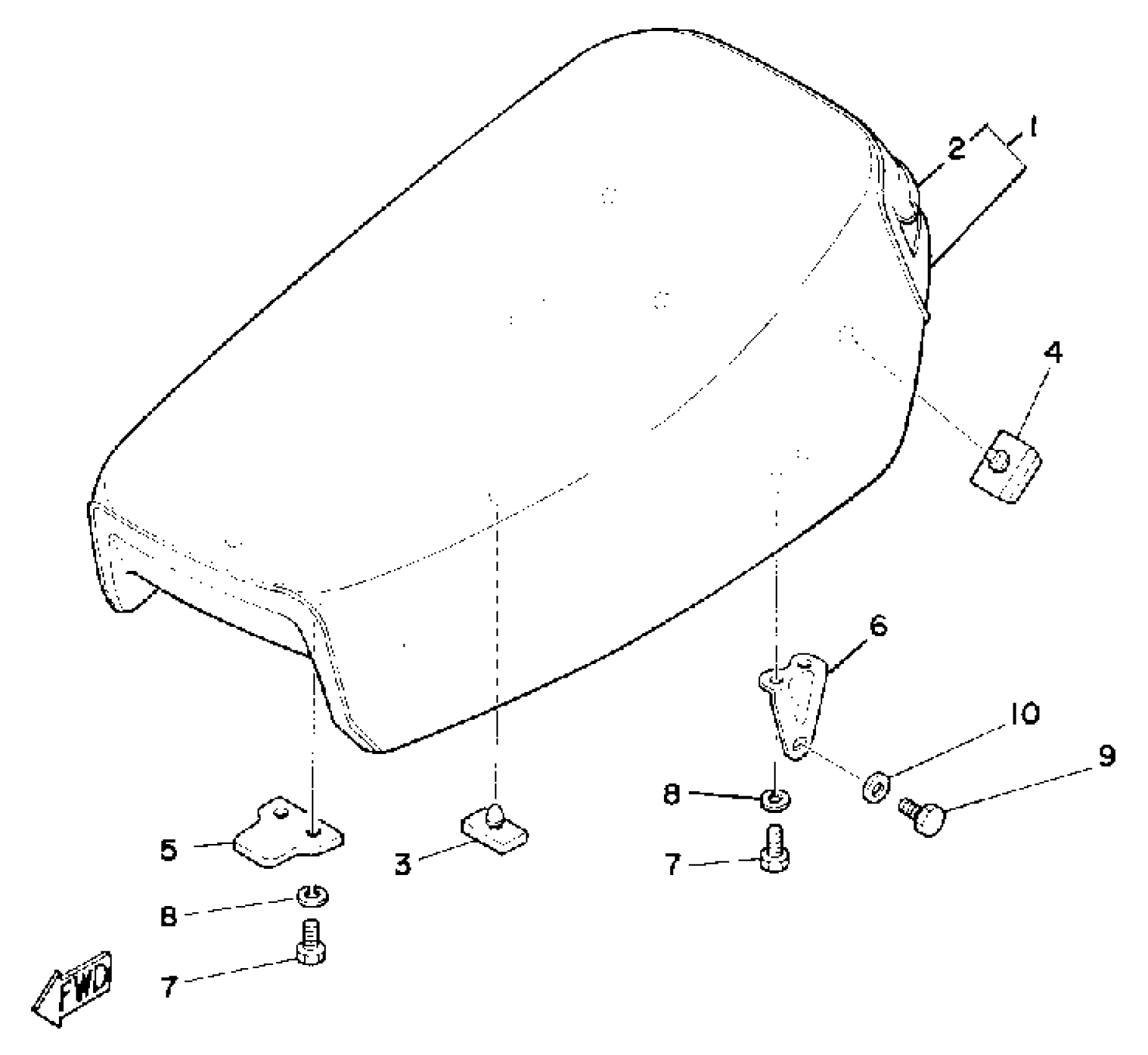

Yamaha MX175G (MX175) 1980 SEAT Diagram

#

Description
Price

1

SEMI-DBL-SEAT ASSEMBLY (2N4-24770-90)

2N4-W2473-00-00

Unavailable

2

. COVER, SM-DBL SEAT

3M2-24771-00-00

Unavailable

3

DAMPER, SEAT

509-24724-00-00

$8.84

4

DAMPER, SEAT

214-24724-00-00

$6.29

5

BRACKET, SEAT

1M1-24748-00-00

Unavailable

6

BRACKET, SEAT REAR

2A6-24738-00-00

Unavailable

7

BOLT (661)

97013-06012-00

$4.40

8

WASHER, SPRING

92995-06100-00

$2.95

9

BOLT(62E)

97013-08012-00

Unavailable

10

.. WASHER, PLATE

92990-08600-00

$2.17
