1980 Yamaha MX175 (MX175G) Fuel Tank Diagram

← All diagrams

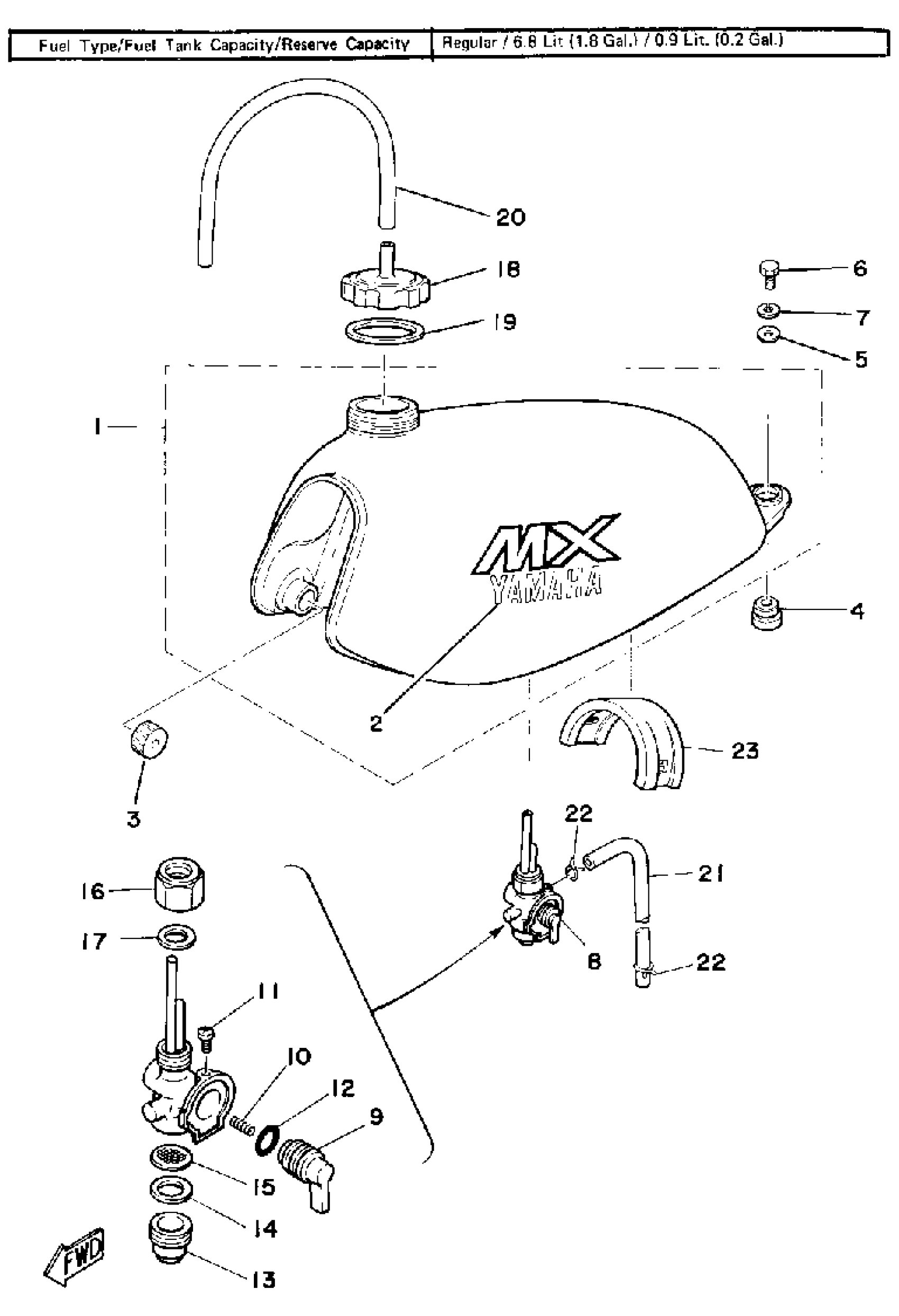

Find the part on the Fuel Tank diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX175 (MX175G) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(2N4-24110-00-X4)

1
Out of stock

2

GRAPHIC, FUEL TNK 1

(3M2-24244-00-00)

1
Out of stock

3

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

4

GROMMET

90480-22231-00

1
Out of stock

5

WASHER, PLATE

90201-06086-00

1
Out of stock

6

BOLT (661)

97013-06012-00

1

$4.71

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

FUEL COCK ASSY 1

357-24500-20-00

1

$103.75

In stock

9

LEVER, COCK

(357-24524-10-00)

1
Out of stock

10

SPRING

(357-24529-10-00)

1
Out of stock

11

. SCREW, LVR FITTING

2N3-24535-00-00

1
Out of stock

12

O-RING

2N3-24528-00-00

—

$2.97

In stock

13

CUP, FILTER

(357-24521-10-00)

1
Out of stock

14

. GASKET

357-24522-10-00

1
Out of stock

15

. NET, FILTER 2

357-24515-10-00

1
Out of stock

16

. NUT

2N3-24531-00-00

1
Out of stock

17

. GASKET

2N3-24532-00-00

1
Out of stock

18

BODY, CAP

2A6-24611-00-00

1
Out of stock

19

PACKING, CAP

1W1-24612-00-00

—

$8.70

In stock

20

HOSE (L600)

90445-083J5-00

—

$7.65

In stock

21

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

22

CLIP 101235600

90467-08003-00

—

$6.13

In stock

23

DAMPER,LOCATING 2

5L9-F4182-00-00

1
Out of stock
