1974 Yamaha MX175 (MX175A) Clutch Diagram

← All diagrams

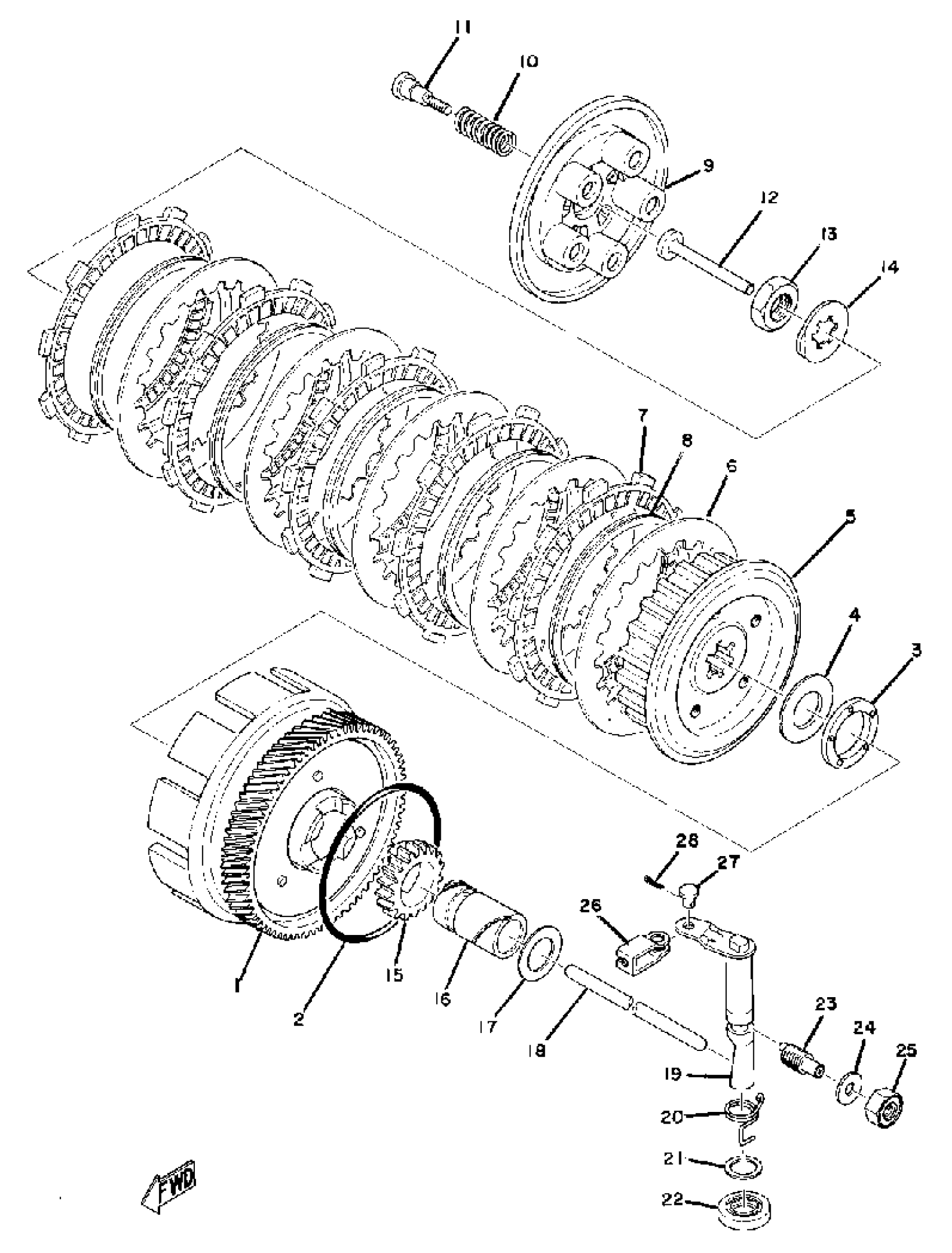

Find the part on the Clutch diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX175 (MX175A) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(401-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(401-16301-00-00)

1
Out of stock

2

O-RING (353)

93210-98202-00

1
Out of stock

3

. BEARING, FLAT #41

93341-22603-00

1
Out of stock

4

. PLATE, THRUST 1

174-16154-00-00

1
Out of stock

5

. BOSS, CLUTCH

174-16371-01-00

1
Out of stock

6

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

7

PLATE, FRICTION

3HA-16321-00-00

1

$26.75

In stock

8

RING, CUSHION

137-16367-00-00

1

$14.80

In stock

9

PLATE, PRESSURE

132-16351-00-00

1

$50.51

In stock

10

SPRING (137-16333-00)

90501-20122-00

1
Out of stock

11

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

12

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

13

NUT,SPEC'L SHAPE

90179-16018-00

1

$11.26

In stock

14

WASHER, LOCK (1L8)

90215-16127-00

1

$8.91

In stock

15

GEAR, KICK PINION

261-15631-01-00

1
Out of stock

16

COLLAR (174-16181-00)

90387-20439-00

1
Out of stock

17

PLATE, THRUST 2

248-16164-01-00

1
Out of stock

18

ROD, PUSH 2

401-16357-00-00

1
Out of stock

19

AXLE, PUSH LEVER

401-16382-02-00

1
Out of stock

20

SPRING, TORSION

90508-14132-00

1
Out of stock

21

WASHER PLATE 150251530000

90201-14217-00

—
Out of stock

22

OIL SEAL (14X25X5-2H7)

93104-14059-00

—
Out of stock

23

SCREW, ADJUSTING

364-16343-00-00

—
Out of stock

24

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

25

NUT, CLUTCH ADJUSTING

583-16344-00-00

—
Out of stock

26

JOINT

214-16389-00-00

—
Out of stock

27

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

28

. PIN, COTTER

91401-10015-00

1
Out of stock
