1976 Yamaha MX125 (MX125C) Transmission Diagram

← All diagrams

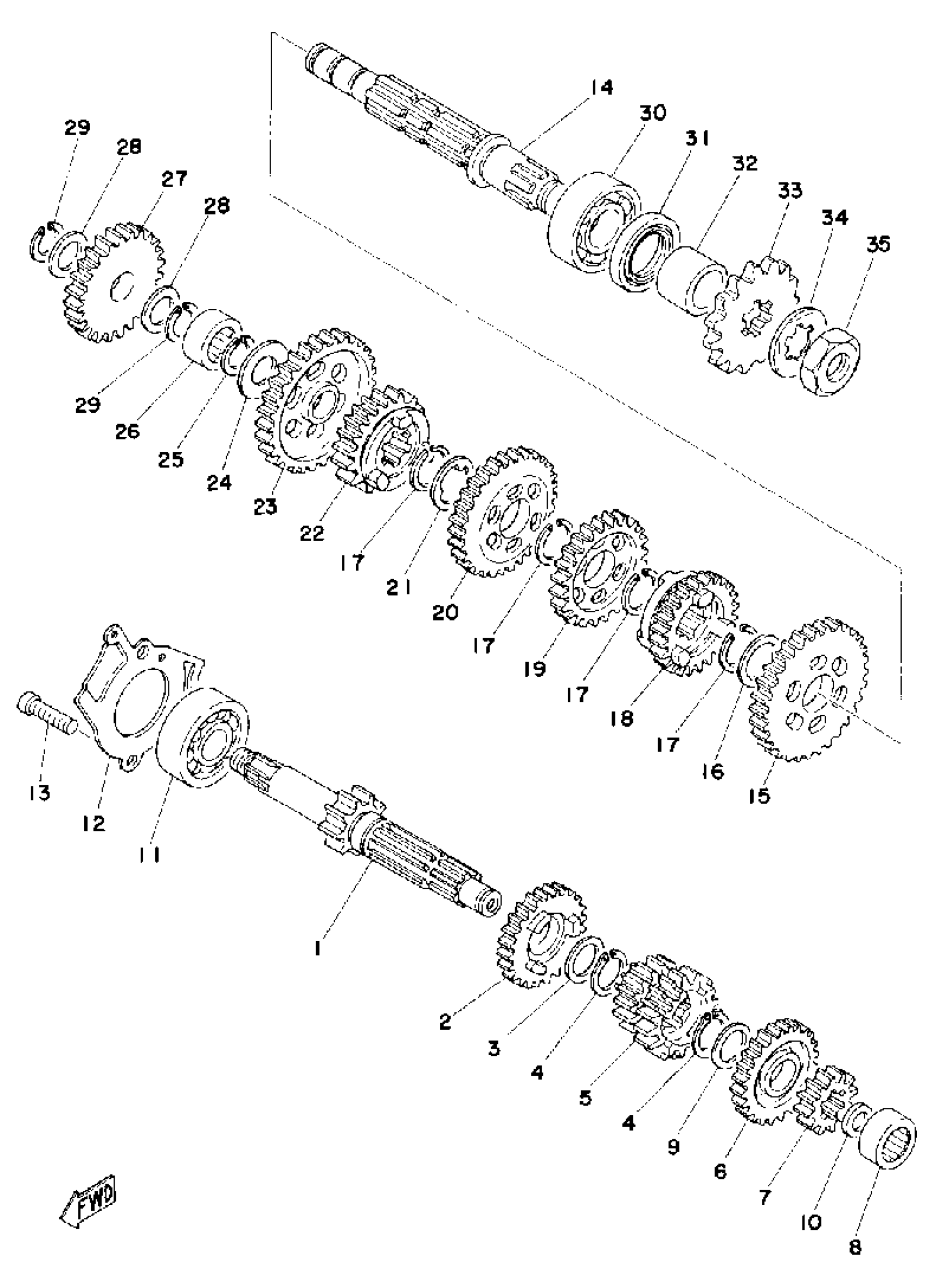

Find the part on the Transmission diagram for your 1976 Yamaha MX125 (MX125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha MX125 (MX125C) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(537-17411-00-00)

1
Out of stock

2

GEAR, 5TH PINION

537-17151-00-00

1
Out of stock

3

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 3RD PINION

(537-17131-01-00)

1
Out of stock

6

GEAR, 6TH PINION

(537-17161-00-00)

1
Out of stock

7

GEAR, 2ND PINION

(537-17121-00-00)

1
Out of stock

8

BEARING, CYLINDER.#11

93311-31522-00

1
Out of stock

9

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

10

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

10

WASHER (566)

90201-15701-00

1

$6.17

In stock

11

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

12

PLATE, COVER

1G8-17471-00-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

AXLE, DRIVE

(537-17421-00-00)

1
Out of stock

15

GEAR, 2ND WHEEL

(537-17221-01-00)

1
Out of stock

16

WASHER, PLATE (537)

90201-22555-00

—
Out of stock

17

CIRCLIP (537)

93410-22039-00

—

$6.17

In stock

18

GEAR, 6TH WHEEL

(537-17261-01-00)

1
Out of stock

19

GEAR, 4TH WHEEL

(537-17241-02-00)

1
Out of stock

20

GEAR, 3RD WHEEL

(537-17231-02-00)

1
Out of stock

21

WASHER (537)

90209-18135-00

—
Out of stock

22

GEAR, 5TH WHEEL

537-17251-01-00

1
Out of stock

23

GEAR, 1ST WHEEL

(537-17211-00-00)

1
Out of stock

24

SHIM, DRIVE AXLE

164-17427-00-06

—

$5.15

In stock

25

CIRCLIP

93440-15012-00

—
Out of stock

26

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

27

GEAR, KICK IDLE

525-15651-00-00

—

$40.08

In stock

28

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

—

$4.12

In stock

29

CIRCLIP

93440-15012-00

—
Out of stock

30

BEARING(1GJ)

93306-20458-00

—

$36.19

In stock

31

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

32

COLLAR (3V3)

90387-202A0-00

—

$18.57

In stock

33

SPROCKET, DRIVE (13T)

93822-13213-00

—

$19.66

In stock

33

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

—
Out of stock

33

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

—
Out of stock

34

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

35

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock
