1976 Yamaha MX125 (MX125C) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1976 Yamaha MX125 (MX125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

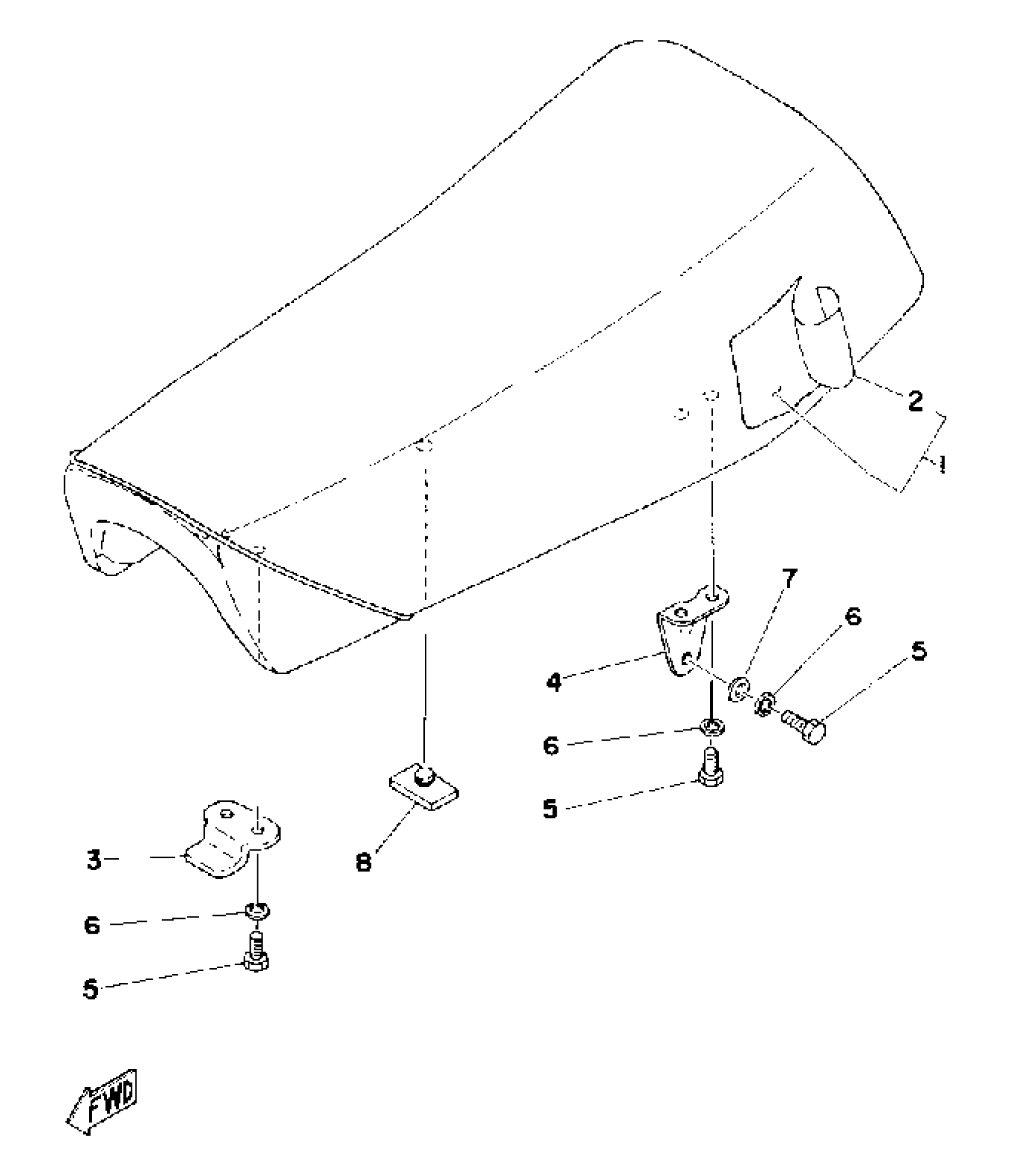

1976 Yamaha MX125 (MX125C) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL-SEAT ASY

3R2-W2473-00-00

1
Out of stock

2

COVER, SM-DBL SEAT

(565-24771-00-00)

1
Out of stock

3

BRACKET, SEAT

2Y0-24748-00-00

1
Out of stock

4

BRACKET, SEAT

509-24738-01-00

1
Out of stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock
← Front Fender - Rear Fender
