HANDLE - WIRE

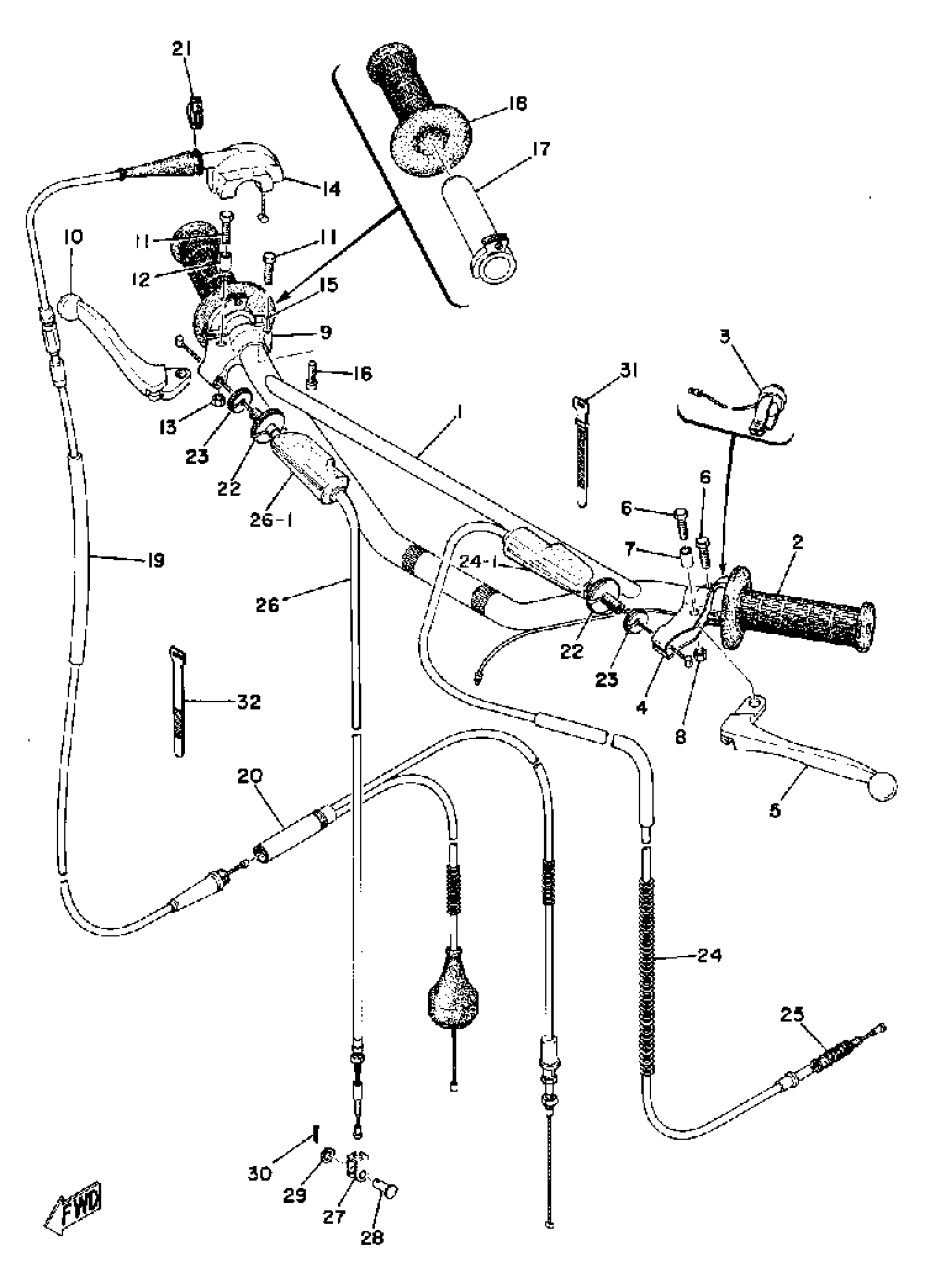

1974 Yamaha MX125 (MX125A) Handle - Wire Diagram
Find the part on the Handle - Wire diagram for your 1974 Yamaha MX125 (MX125A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
LEVER HOLDER ASSY 1
214-82910-07-00
1
HANDLEBAR
(401-26111-01-00)
2
GRIP, HANDLE (L.H)
1E6-26241-00-00
3
SWITCH, HANDLE 1
(363-83976-01-00)
14
CAP, GRIP UPPER
322-26281-00-98
19
CABLE, THROTTLE 1
402-26311-00-00
20
CABLE, THROTTLE 2
402-26312-00-00
21
CLAMP, HOSE
90460-12268-00
24
CABLE, CLUTCH
401-26335-03-00
25
BOOT, CABLE
(363-26342-00-00)
26
CABLE, BRAKE 001
401-26341-00-00
26
CABLE, BRAKE
427-26341-00-00
29
WASHER, PLATE 1562722600
90201-08083-00
32
BAND
341-26397-01-00
