1979 Yamaha MX100 (MX100F) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

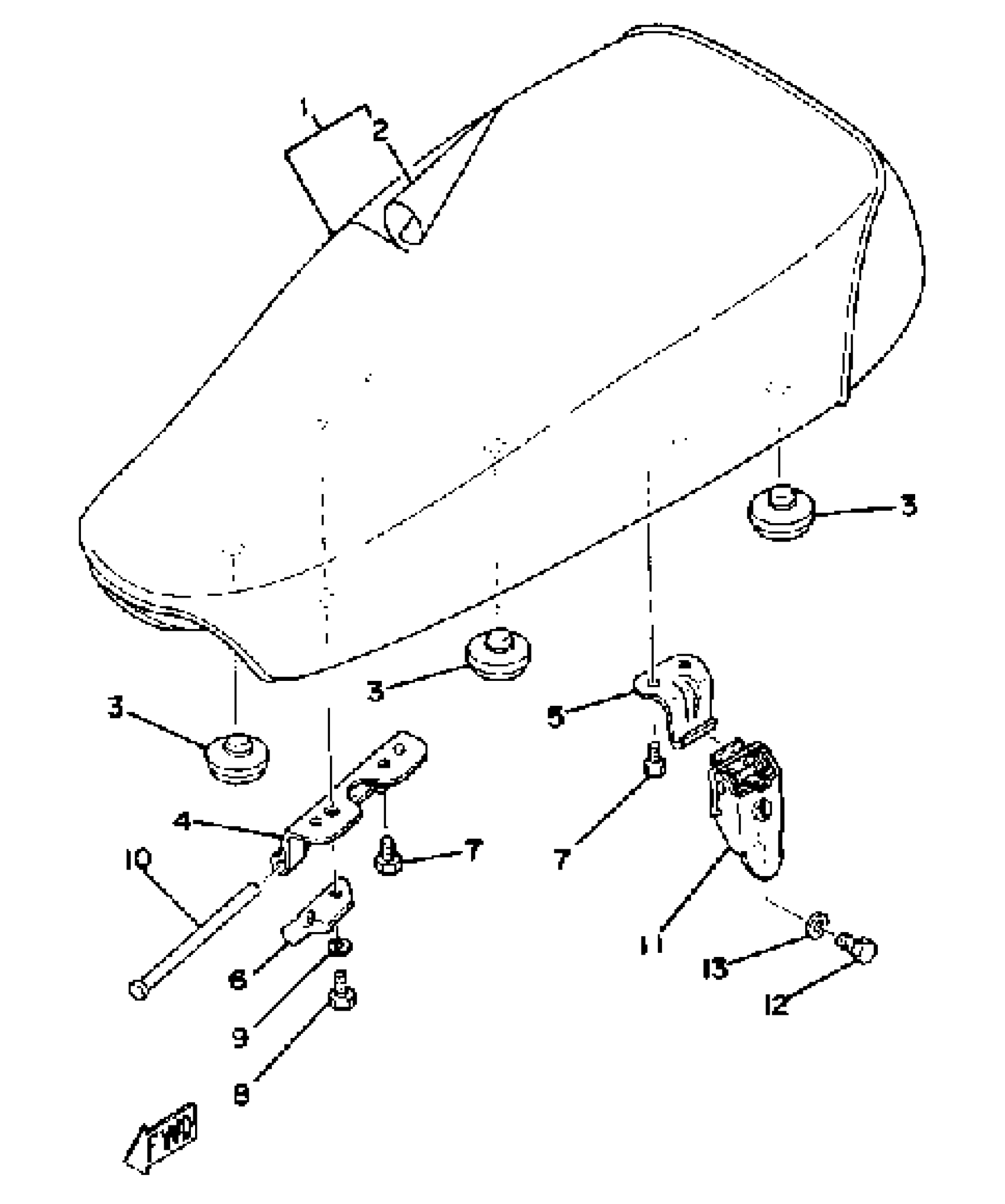

1979 Yamaha MX100 (MX100F) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

1T9-W2471-01-00

1
Out of stock

2

. COVER, SINGLE SEAT

1T9-24711-00-00

1
Out of stock

3

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

4

HINGE, SEAT

538-24726-00-00

1
Out of stock

5

BRACKET, SEAT

278-24728-00-00

1
Out of stock

6

STOPPER

1T9-24768-00-00

1
Out of stock

7

BOLT (583)

90101-06304-00

1

$5.85

In stock

8

BOLT (661)

97013-06012-00

1

$4.71

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

PIN

1K8-24774-00-00

1
Out of stock

11

SEAT LEVER ASSEMBLY

214-24708-00-00

1
Out of stock

12

BOLT (661)

97013-06012-00

1

$4.71

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
