1974 Yamaha MX100 (MX100A) Crankcase - Cylinder Diagram

← All diagrams

Find the part on the Crankcase - Cylinder diagram for your 1974 Yamaha MX100 (MX100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

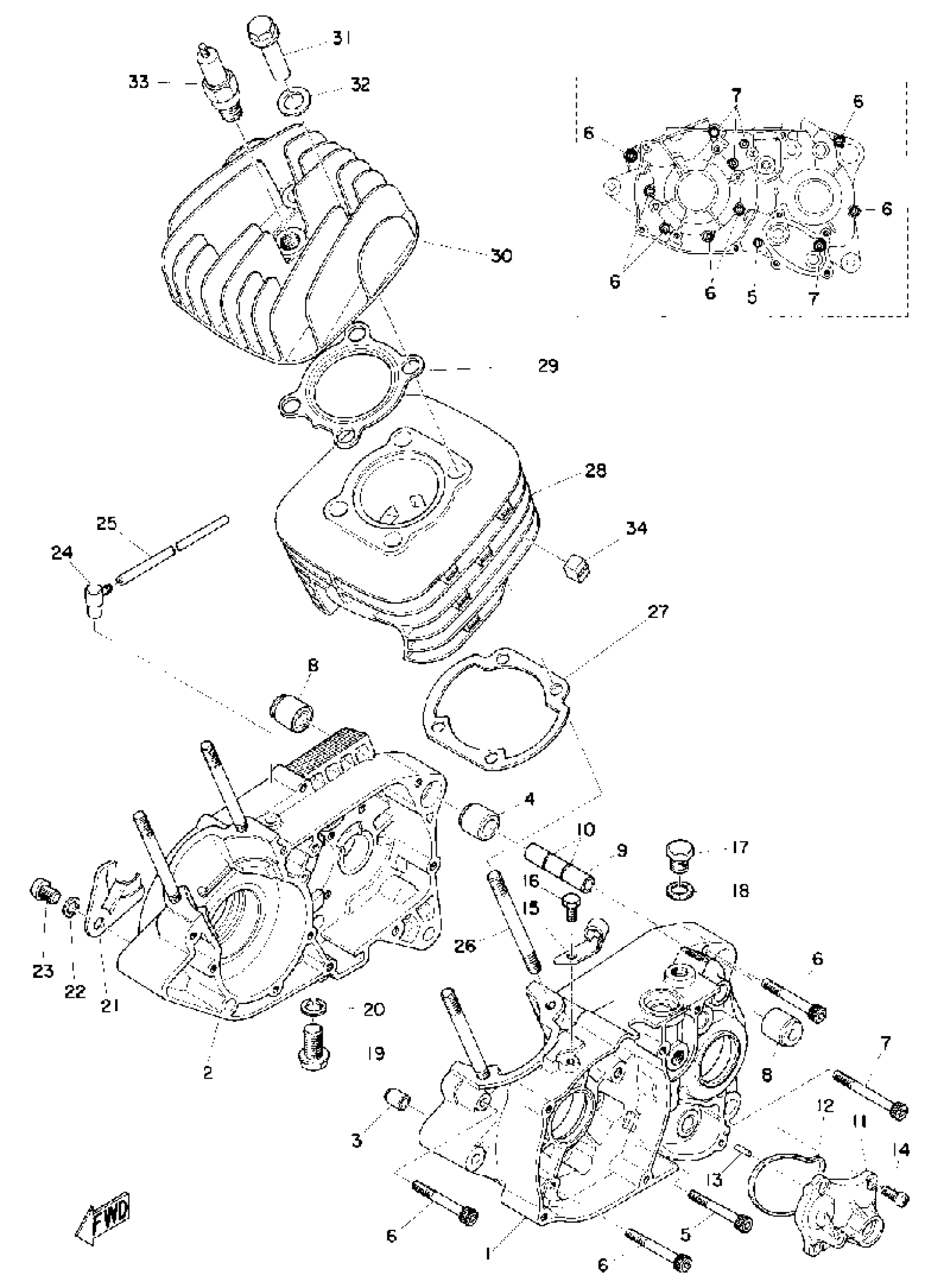

1974 Yamaha MX100 (MX100A) Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(403-15111-02-00)

1
Out of stock

2

CRANKCASE 2

(403-15121-01-00)

1
Out of stock

3

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

4

PIN, DOWEL

99530-20020-00

1
Out of stock

5

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

6

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

7

BOLT,SOCKET

91317-06060-00

1
Out of stock

8

DAMPER

90388-08003-00

1

$16.29

In stock

9

SPACER, ENGINE MOUNT

401-15317-00-00

1

$12.20

In stock

10

O-RING (P95)

93210-11073-00

1
Out of stock

11

COVER, SHIFTER 1

401-15419-01-00

1
Out of stock

12

RING, RUBBER

401-15449-00-00

1

$25.49

In stock

13

PIN,DOWEL (603)

93603-12007-00

1

$1.60

In stock

14

SCREW, PAN

98507-06014-00

1

$6.18

In stock

15

HOLDER, CLUTCH CABLE

401-15441-02-00

1
Out of stock

16

BOLT (661)

97013-06012-00

—

$4.71

In stock

17

PLUG, STRAIGHT SCREW

90340-12004-00

1
Out of stock

18

WASHER, PLATE

90201-12790-00

—

$6.85

In stock

19

—

$6.71

In stock

20

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

21

HOLDER (R.H)

304-15128-00-00

—

$5.80

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

SCREW,PAN HEAD

98580-08012-00

1
Out of stock

24

BREATHER

583-15371-00-00

—
Out of stock

25

HOSE

(90446-07009-00)

1
Out of stock

26

BOLT STUD 276113610000

90116-08065-00

—
Out of stock

27

GASKET, CYLINDER

3UL-11351-00-00

—

$6.17

In stock

28

CYLINDER 1

(427-11311-00-00)

1
Out of stock

29

GASKET,CYLINDER HEAD

276-11181-01-00

—

$26.88

In stock

30

HEAD, CYLINDER 1

(427-11111-01-00)

1
Out of stock

31

NUT (3V6)

90179-08303-00

—

$7.14

In stock

32

WASHER PLATE 278111750000

90201-12362-00

—

$6.42

In stock

33

NGK BR8EV 4PK

NGK-BR8EV-00-00

1
Out of stock

34

ABSORBER 1

(427-11161-00-00)

1
Out of stock
