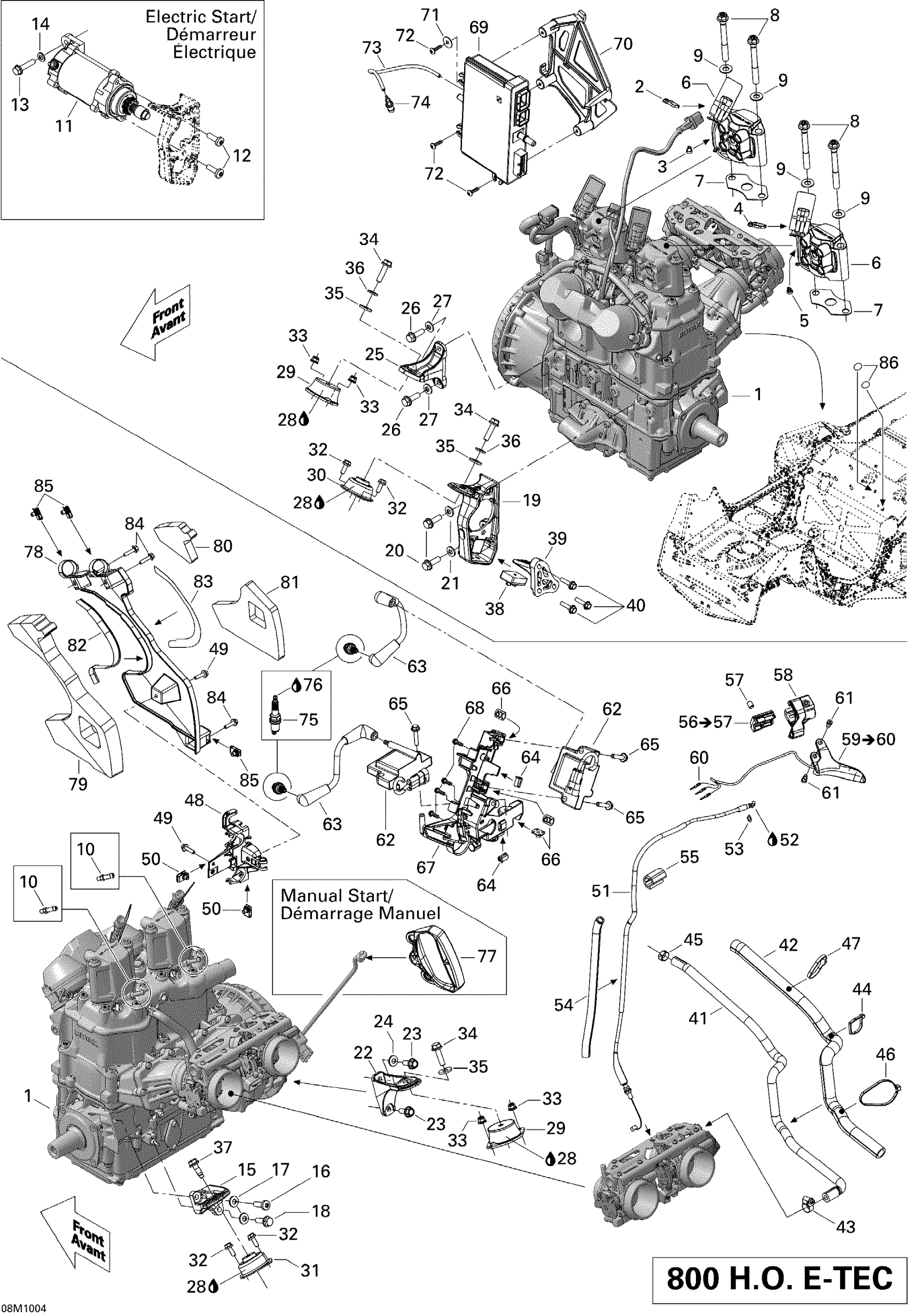

Ski-Doo MX Z X 800R ETEC, 2010 Engine Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

1

REBUILD-BLOCK SHORT 797 MY12 - Call your local BRP dealership | Europe This part replaces 420079752.

421000699

Unavailable

2

Tie Wrap 94 mm | 4X4

293750001

$0.83

3

Tie Wrap 142 mm

293750002

Unavailable

4

Tie Wrap 94 mm | 4X4

293750001

$0.83

5

Tie Wrap 142 mm

293750002

Unavailable

6

Fuel Injector | Includes 13 to 16

512061054

$339.99

7

Gasket

420430930

$4.60

8

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

Unavailable

9

Flat Washer 10 mm

234001410

Unavailable

10

Hose Nipple

420924724

Unavailable

11

Starter

515178473

$319.49

12

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

13

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

14

Flat Washer With Teflon 8 mm

250200008

Unavailable

15

Rear Support, PTO

512060478

$29.97

16

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

17

Conical Spring Washer M8

234281474

$1.25

18

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

19

Front Support, PTO

512060714

$85.35

20

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

21

Conical Spring Washer M8

234281474

$1.25

22

Rear Support, MAG

512060559

$29.97

23

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

24

Conical Spring Washer M8

234281474

$1.25

25

Front Support, MAG

512060469

$31.51

26

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

27

Conical Spring Washer M8

234281474

$1.25

28

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

29

Rubber Mount

512060729

$69.97

30

Rubber Mount

512060387

$42.28

31

Rubber Mount

512060448

$42.28

32

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

34

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

35

Yellow, Washer

503183200

Unavailable

36

Conical Spring Washer M8

234281474

$1.25

37

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

38

Stopper

512060627

$9.31

39

Stopper Support

512060576

$28.43

40

Hex. Flange Screw M6 X 25

207562544

$1.39

41

Formed Hose, Output

512060740

Unavailable

42

Tubing

513033412

Unavailable

43

Norma Clamp

293650084

Unavailable

44

Tie-Rap 180 mm

414115200

$0.09

45

Oetiker Clamp

293650046

Unavailable

46

Tie-Rap 180 mm

414115200

$0.09

47

Tie-Rap 180 mm

414115200

$0.09

48

Solenoid Support

512060298

$12.52

49

Hex.Flange Screw M5 X 20

207652044

$1.56

50

Panel Nut M5 X 0.8

250000958

Unavailable

51

Throttle Cable

512060611

$106.12

52

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

53

Circlip

414274500

Unavailable

54

Was 409901700 Tubing (9 mm)

219704399

Unavailable

55

Protector

512060313

$9.31

56

Upper Housing Ass'y

512060198

Unavailable

57

Socket Set Screw M8 X 10

414440800

$4.00

58

Lower Housing

512060860

Unavailable

59

Handle Ass'y

512061250

$117.66

60

Male Terminal

515175232

$1.49

61

Flange Screw

732601143

$4.02

62

Ignition Coil

512060953

$129.97

63

Ignition Cable, 177mm long

512061126

$27.66

64

Clip

710000992

$4.00

65

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

66

Nut Welded, M6

293100003

Unavailable

67

Ignition Coils Support

512060888

$10.52

68

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

69

Calibrated Module

512060756

$769.99

70

Calibrated Module Support

512060858

$12.52

71

Flat Washer

250200040

$1.82

72

Truss Head Torx Screw K50 X 20

250000297

$1.74

73

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

74

Male Connector

414814100

$2.18

75

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$32.28

76

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

77

Not Available As Spare Parts

XXX

Unavailable

78

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

79

Interior Noise Foam

512060343

Unavailable

80

Upper Exterior Noise Foam

512060344

Unavailable

81

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

82

Heat Shield

512060574

Unavailable

83

Heat Shield

512060575

Unavailable

84

Hex.Flange Screw M5 X 20

207652044

$1.56

85

Panel Nut M5 X 0.8

250000958

Unavailable

86

Adhesive Patch

518325560

Unavailable
