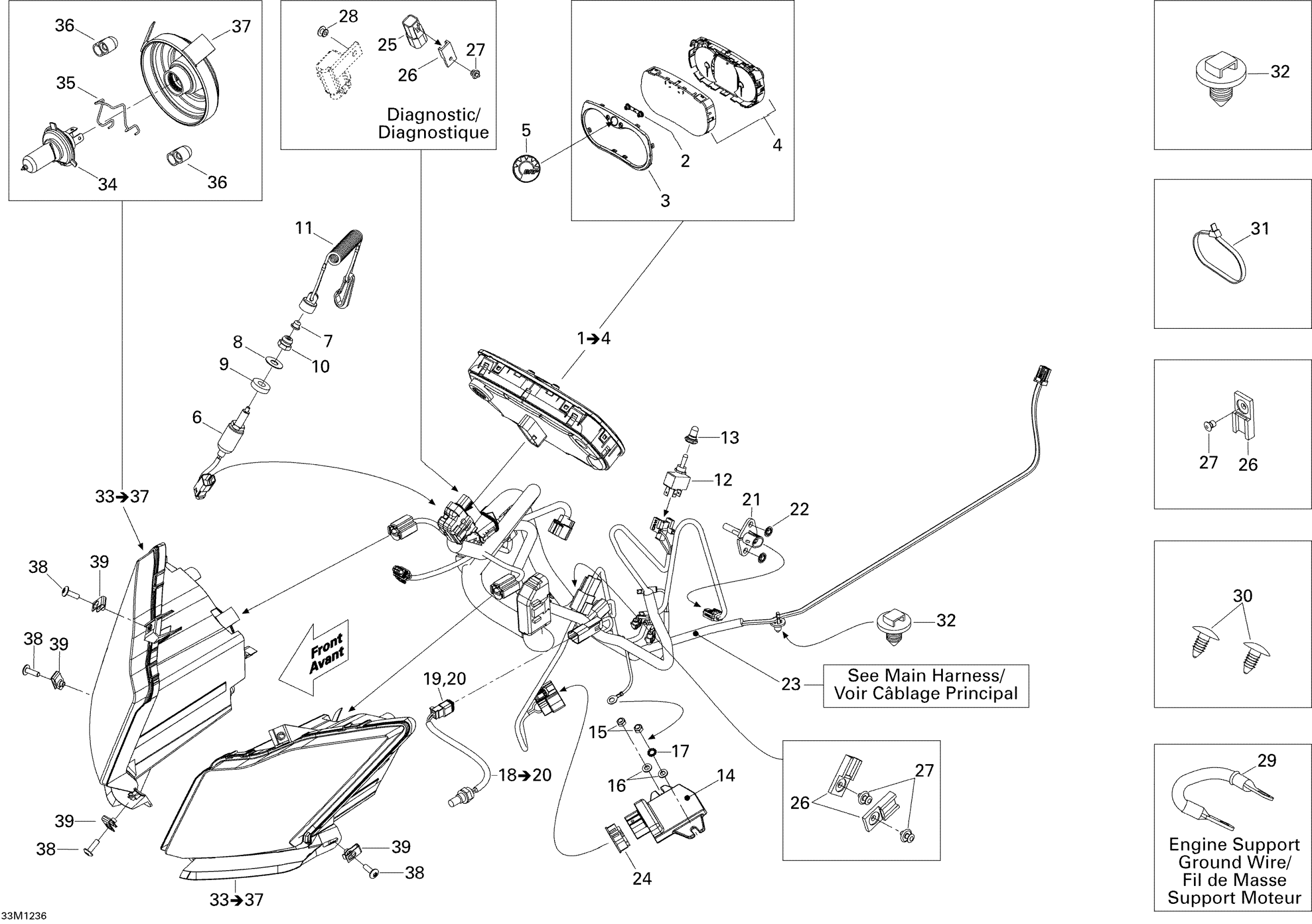

Ski-Doo MX Z X 600RS, 2012 Electrical System Diagram
#
Description
Price
2
Speedometer Button | XTP
415129355
Unavailable
3
Gauge Ring
415129348
Unavailable
4
Lens | XTP
415129349
Unavailable
5
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
8
Washer
250200032
Unavailable
9
WASHER - Call your local BRP dealership
510004418
Unavailable
11
Cap Ass'Y This part replaces 515176462.
515178292
Unavailable
14
Voltage Regulator
515176364
Unavailable
15
Elastic Stop Nut M6
232561414
Unavailable
16
Flat Washer 6 mm
234061410
Unavailable
17
External Serrated Lock Washer 6 mm
234461608
Unavailable
18
Temperature Sensor This part replaces 420664508.
420664509
Unavailable
19
Female Terminal Housing, 2 Circuits
515175670
Unavailable
20
Female Terminal
278000632
Unavailable
23
WIRING HARNESS MAIN - Call your local BRP dealership
515177111
Unavailable
24
Lock
515176681
Unavailable
29
Ground Wire
515177289
Unavailable
31
Tie Wrap 142 mm
293750002
Unavailable
33
RH Headlamp Ass'y | Includes 2400 to 2400c
517304194
Unavailable
33
LH Headlamp Ass'y | Includes 2600 to 2600c
517304195
Unavailable
34
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
35
BULB HOLDER - Call your local BRP dealership
515176493
Unavailable
36
Cap
515176498
Unavailable
37
Rubber Cap Protector
219800280
Unavailable
38
Torx Screw M6 X 20
250000722
Unavailable
39
Panel Nut M6 X 1.0
250100198
Unavailable
