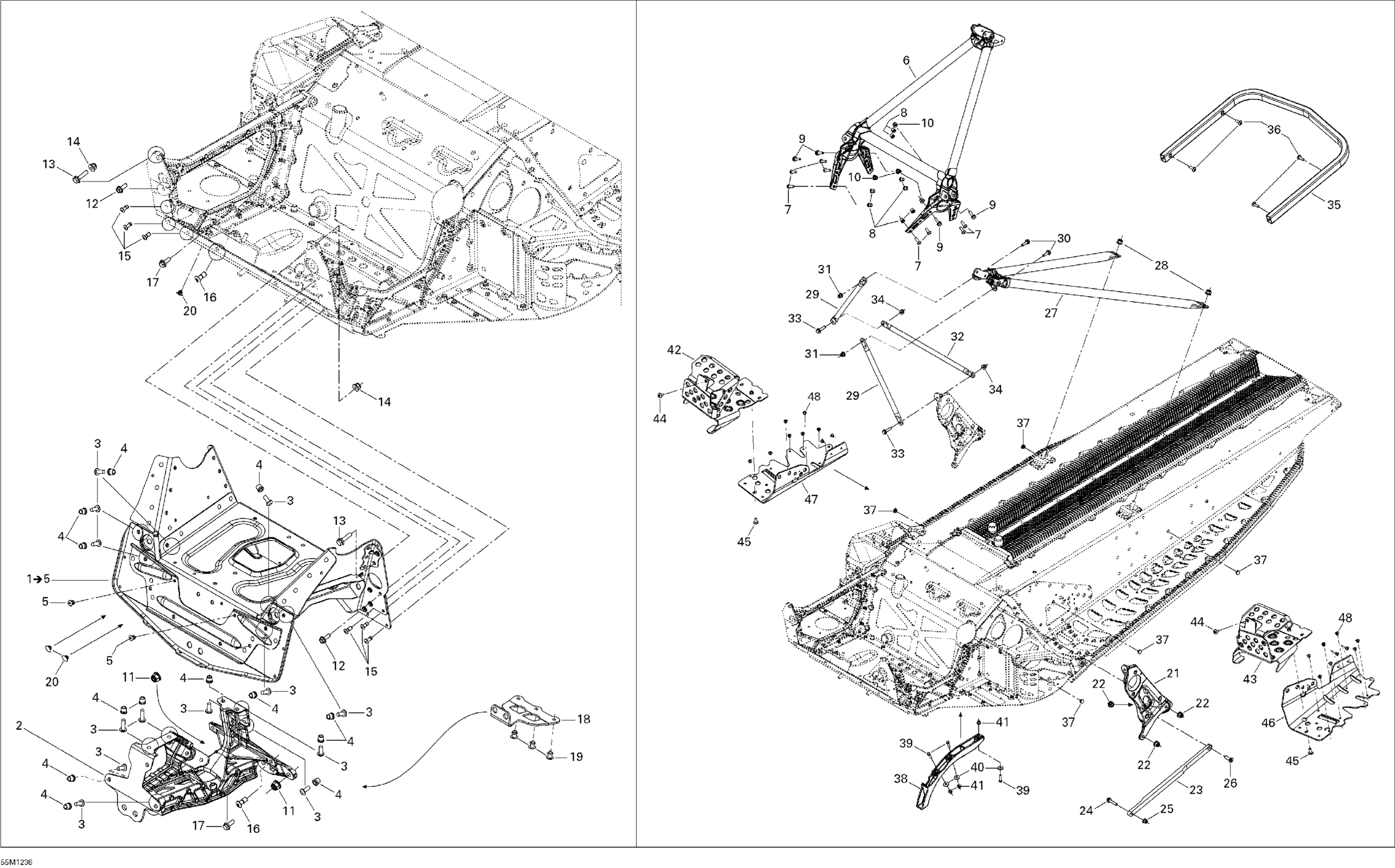

Ski-Doo MX Z X 600RS, 2012 Frame and Components Diagram

#

Description
Price

1

S-MODULE ASS'Y - Call your local BRP dealership | Includes 300a to 300e

518327503

Unavailable

2

Front Suspension Support

518327487

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

5

Stavex Rivet

293150144

Unavailable

6

Front Member

518327565

$316.12

7

Hex. Flange Screw M6 X 20

207662044

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Hex. Flange Screw M6 X 20

207662044

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

$1.22

13

Hex. Flange Screw M6 X 25

207662544

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

Monobolt Rivet, 4.8 mm

293150191

Unavailable

16

Monobolt Rivet 6.4

293150182

$2.91

17

Hex. Flange Screw M6 X 16

207661644

Unavailable

18

MODULE REINFORCEMENT - Call your local BRP dealership

518326466

Unavailable

19

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

20

Black Dart 5 mm

293730053

Unavailable

21

Pulley Support

518328346

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

LINK - Call your local BRP dealership

518326118

Unavailable

24

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

26

Torx Screw M8 X 25, Scotch Grip

250000143

Unavailable

27

Rear Member

518326559

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

Unavailable

29

Upper Lateral Column Support

518325114

Unavailable

30

Hex. Flange Screw M6 X 20

207662044

Unavailable

31

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

32

Center Column Support

518325115

Unavailable

33

Hex. Flange Screw M6 X 25

207662544

Unavailable

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

35

Black Rear Bumper 137"

518325481

$154.99

36

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

37

Black, Dart 8 mm

293730047

Unavailable

38

Front Tunnel Protector | Includes 1700 to 1700a

518326973

Unavailable

39

Hex. Screw M5 X 20

207152044

$0.88

40

Washer | DS 650 X

391301600

Unavailable

41

Hex. Flange Elastic Nut M5

233251414

Unavailable

42

RH FOOTREST - Call your local BRP dealership

518328106

Unavailable

43

LH FOOTREST - Call your local BRP dealership

518328107

Unavailable

44

Torx Truss Screw M6 X 12

250000767

$1.66

45

Torx Screw M6 X 16

250000365

$1.74

46

LH BRACKET - Call your local BRP dealership

518327131

Unavailable

47

RH BRACKET - Call your local BRP dealership

518327132

Unavailable

48

Pop Rivet 3/16"

390402200

$0.26
