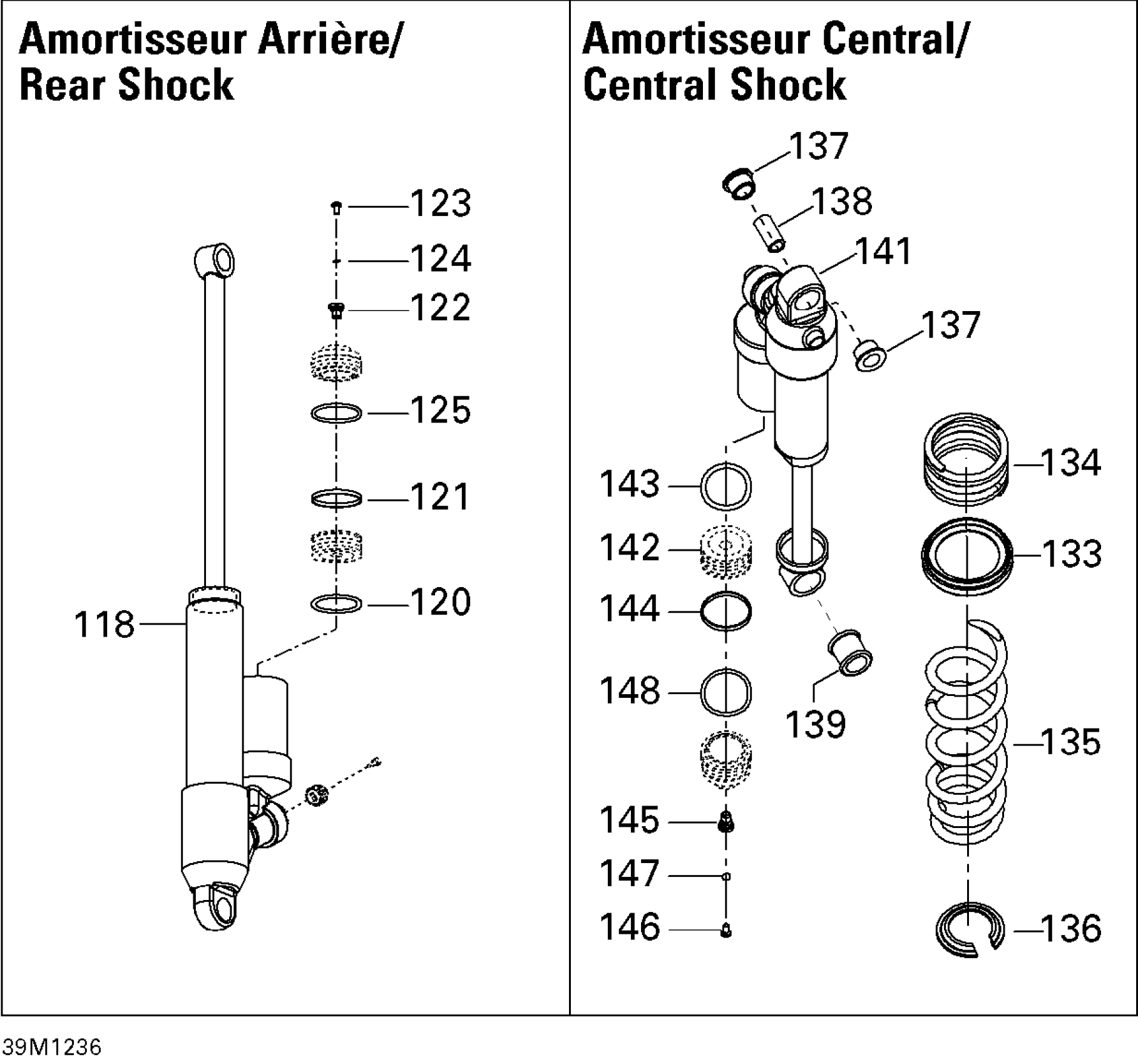

Ski-Doo MX Z X 600RS, 2012 Rear Suspension Shocks Diagram

Description

Price

118

Rear Shocks

503193109

Unavailable

120

O-Ring

415093807

$33.55

121

Piston Ring | Not Shown

415093806

$14.52

122

Air Valve

505070398

$17.13

123

Screw | Not Shown

505070399

$3.88

124

O-Ring

505070400

$4.25

125

O-Ring

415093804

$4.25

133

SPRING SPACER - Call your local BRP dealership

503193131

Unavailable

134

BLACK SPRING - Call your local BRP dealership

503193112

Unavailable

135

Black, Spring - Call Your Local BRP Dealership

503193113

Unavailable

136

Spring Stopper

503190271

$20.12

137

Urethane Bushing

503189117

$6.67

138

Bushing | Includes 240d to 240d1

503189282

$4.06

139

CUSHION - Call your local BRP dealership

503192726

Unavailable

141

Central Shock | Includes 141 to 148

503193111

Unavailable

142

Free Piston

505071016

Unavailable

143

O-Ring

415093807

$33.55

144

Piston Ring | Not Shown

415093806

$14.52

145

Air Valve

505070398

$17.13

146

Screw | Not Shown

505070399

$3.88

147

O-Ring

505070400

$4.25

148

O-Ring

415093804

$4.25
