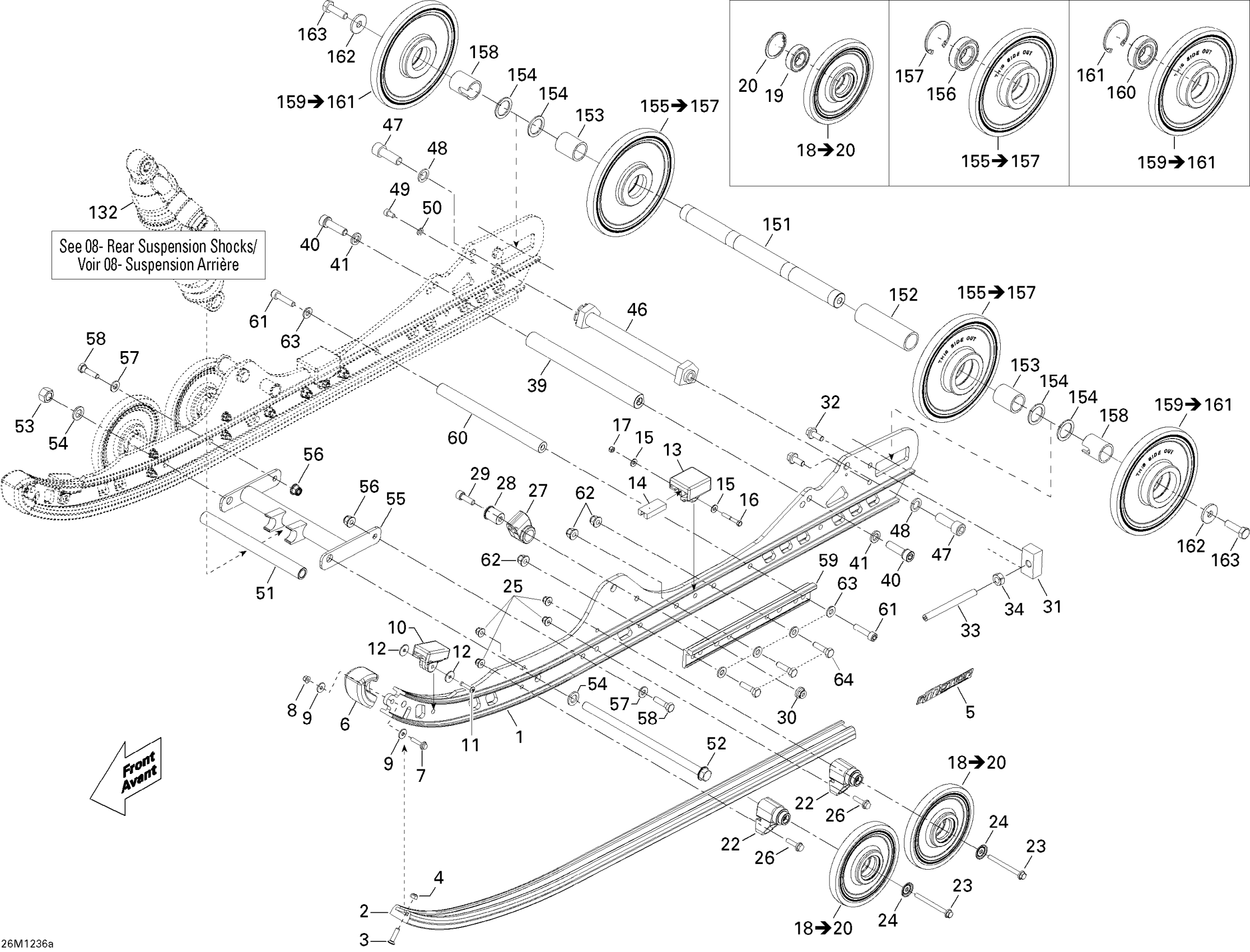

Ski-Doo MX Z X 600RS, 2012 Rear Suspension Runner Diagram

#

Description
Price

1

PAINT RUNNER RS - Call your local BRP dealership

503193105

Unavailable

2

Slider Shoe

503190573

Unavailable

3

Phillips Screw M6 X 25

208562531

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

Runner Decal

516004755

$9.11

6

Runner Protector

503192299

$23.82

7

Hex. Flange Screw M5 X 25

207652544

Unavailable

8

Hex. Flange Elastic Nut M5

233251414

Unavailable

9

Washer | DS 650 X

391301600

Unavailable

10

Rubber Stopper

503190576

Unavailable

11

Pop Rivet 3/16"

293150142

Unavailable

12

Washer

503191273

Unavailable

13

RUBBER STOPPER - Call your local BRP dealership

503192099

Unavailable

14

Reinforcement Stopper

572084800

$5.25

15

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

16

Hex. Screw M5 X 35

207053544

Unavailable

17

Elastic Stop Nut M5

232551414

Unavailable

18

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

Unavailable

19

Ball Bearing | Package-STD

503190396

Unavailable

20

Retaining Ring

415129371

Unavailable

22

Casted Support

503193894

Unavailable

23

Hex. Flange Screw M6 X 70

250001027

$1.74

24

Wheel Cup M6

503191820

Unavailable

25

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

26

Hex Flange Screw M6 x 25

250000522

Unavailable

27

Spring Support Kit

861805547

Unavailable

28

Spring Support Kit

861805547

Unavailable

29

Socket Head Screw M8 X 25

205082544

Unavailable

30

Hex. Flange Elastic Nut M8

233281414

Unavailable

31

TENSIONER - Call your local BRP dealership

503191984

Unavailable

32

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

33

Hex Screw M10 x 100

230100054

$5.29

34

Elastic Locking Nut M10 X 1.5

233601416

$1.68

39

Limit Axle

503192715

$78.43

40

Socket Screw M10 X 35

205003544

Unavailable

41

Washer

503189564

Unavailable

46

AXLE CAM - Call your local BRP dealership

503193129

Unavailable

47

Socket Head Screw Scotch Grip Din.912

205523587

$2.06

48

Washer

503189276

Unavailable

49

Socket Head Screw M6 X 12

205061260

$1.26

50

Lock Washer M6, Black

234161471

$0.52

51

CENTER SHAFT PIVOT - Call your local BRP dealership

503192809

Unavailable

52

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

53

Hex. Nut M12

232021416

Unavailable

54

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

55

REINFORCEMENT - Call your local BRP dealership

503192711

Unavailable

56

Hex. Flange Elastic Nut M8

233281414

Unavailable

57

Washer

503189157

$3.20

58

Hex. Screw M8 X 30

207183044

Unavailable

59

RAIL REINFORCEMENT - Call your local BRP dealership

503191804

Unavailable

60

Axle

503151600

$15.35

61

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.55

62

Hex. Flange Elastic Nut M8

233281414

Unavailable

63

Washer

503189157

$3.20

64

Hex. Screw M8 X 30

207183044

Unavailable

132

Not Available As Spare Part - Friction Washer

Unavailable

151

Rear Axle

503167900

$129.20

152

Center Spacer

503156000

$8.92

153

Inner Spacer

503182900

$10.18

154

Washer

503180400

$3.37

155

Wheel 165" | Includes 670 to 670b

503194127

$49.97

156

Ball Bearing

293350115

Unavailable

157

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

158

Outer Spacer

503189809

$15.35

159

Wheel 165" | Includes 670 to 670b

503194127

$49.97

160

Ball Bearing

293350115

Unavailable

161

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

162

Washer

503183300

$5.68

163

Hex. Screw With Nylon

250000019

Unavailable
