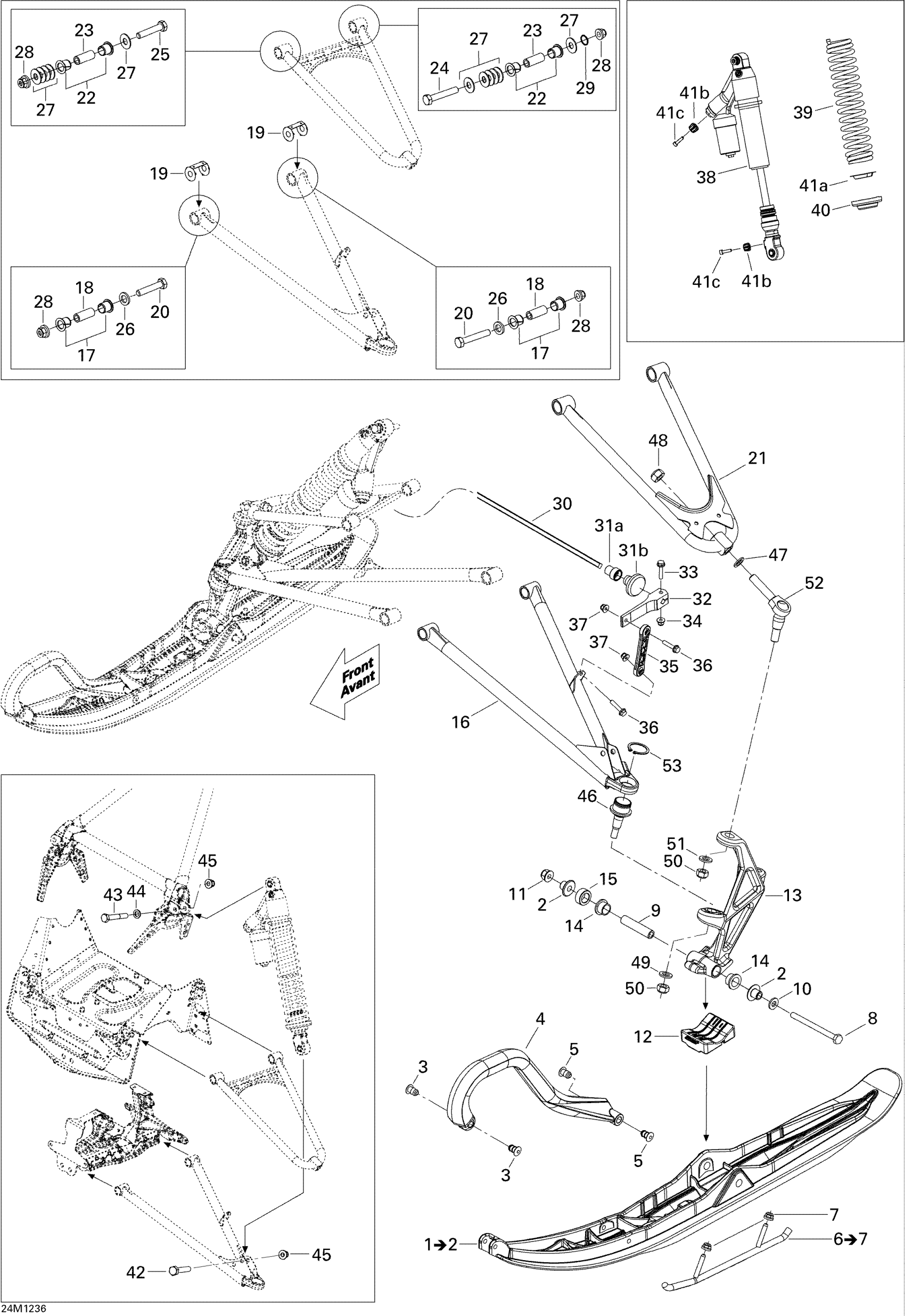

Ski-Doo MX Z X 600RS, 2012 Front Suspension And Ski Diagram
#
1
Black Pilot Ski 5.7X
505072205
Unavailable
2
Ski Bushing
505071781
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
Hex. Screw M10 X 130 | Model-RT STD
250000703
Unavailable
9
Spacer
506133300
Unavailable
10
Washer
732900049
Unavailable
12
Ski Stopper
505072594
Unavailable
13
Gold LH Ski Leg
505073182
Unavailable
13
Gold RH Ski Leg
505073185
Unavailable
14
Leg Bushing
505072690
Unavailable
15
Spacer
505072807
Unavailable
16
RH LOWER ARM - Call your local BRP dealership
505072654
Unavailable
16
LH LOWER ARM - Call your local BRP dealership
505072655
Unavailable
19
Wear Plate
505072634
Unavailable
20
Screw Hex. M10 X 70
250001024
Unavailable
21
LH UPPER ARM - Call your local BRP dealership
505073188
Unavailable
21
RH UPPER ARM - Call your local BRP dealership
505073190
Unavailable
23
Sleeve
505072143
Unavailable
24
Screw Hex. M10 X 70
250001024
Unavailable
25
Screw Hex. M10 X 60
250001023
Unavailable
26
Washer
503189564
Unavailable
27
Washer
505072392
Unavailable
28
Hex. Flange Elastic Nut M10
250100165
Unavailable
29
O-Ring
505072448
Unavailable
31a
Bushing
505072064
Unavailable
34
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
35
Sway Bar Double Joint Link
505072204
Unavailable
37
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
38
RH Ffront Shock | Includes 87 to 87h
505073145
Unavailable
38
LH Ffront Shock | Includes 87 to 87h
505073146
Unavailable
39
GOLD SPRING - Call your local BRP dealership
505073144
Unavailable
41b
Adjustment Knob
505072753
Unavailable
44
Washer
503189564
Unavailable
47
Washer
503189276
Unavailable
51
Washer
503189276
Unavailable
