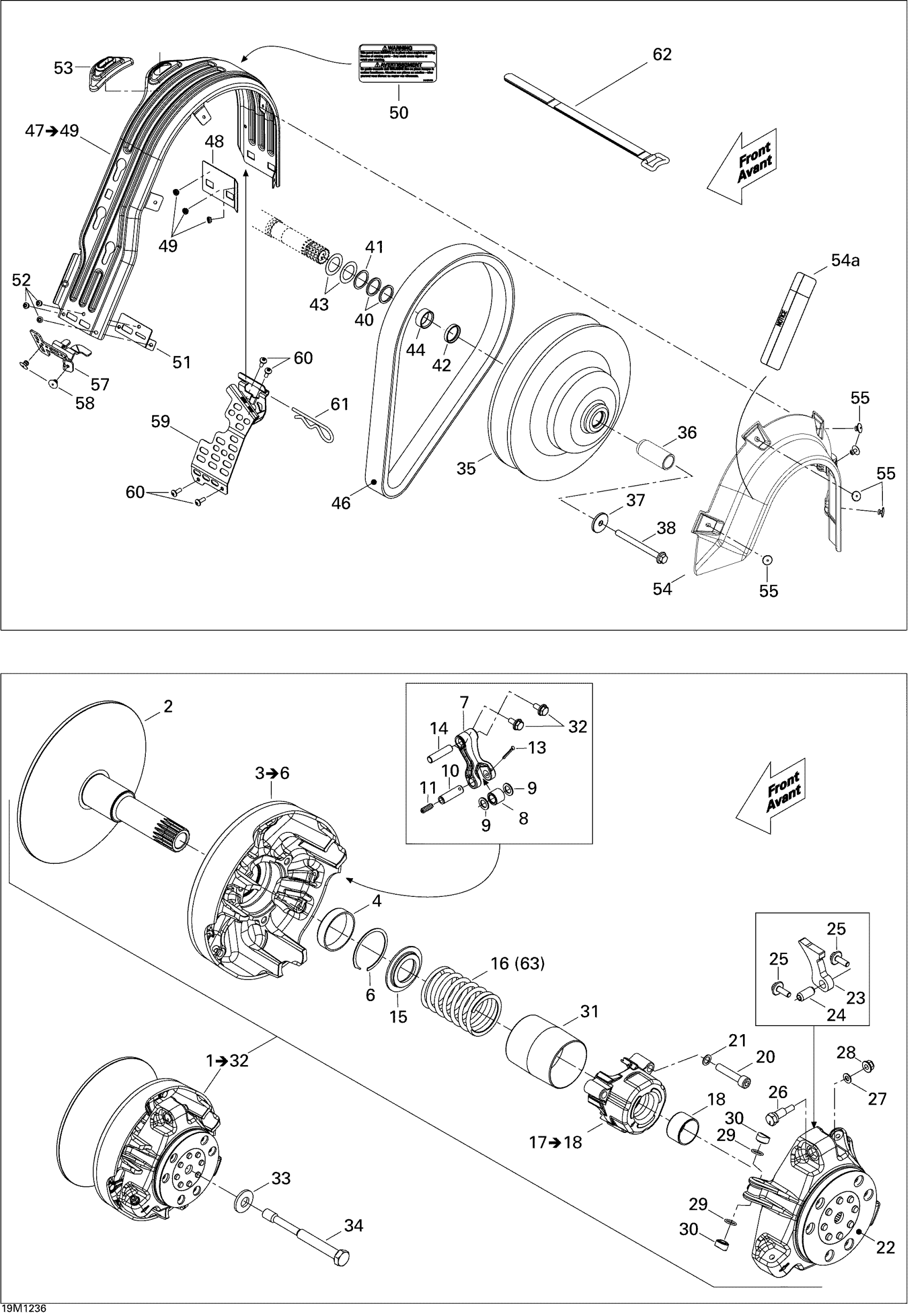

Ski-Doo MX Z X 600RS, 2012 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE ASS'Y - Call your local BRP dealership

417223012

Unavailable

3

Sliding Flange Ass'y

417222971

Unavailable

4

Bushing

417222758

$20.74

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Threaded Pin, M6 | High Altitude

417222595

$22.28

11

Screw Socket Set DIN.913 S.Grip

250000408

Unavailable

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Clutch Spring

414689800

$43.05

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

Unavailable

22

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223366

Unavailable

23

RAMP 443 - Call your local BRP dealership

417223281

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

Calibration Screw

417223501

$27.66

27

Washer

417005600

$3.86

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

O-Ring

732401030

$0.95

30

Slider Shoe This part replaces 420460045.

417223021

$6.09

31

Guard

417009205

$16.89

32

Serrated Hex. Flange Bolt M6

250000416

$4.12

33

Spring Washer 14 mm

250200006

Unavailable

34

Drive Pulley Bolt

417120000

$63.82

35

DRIVEN PULLEY (RAPID REACTION) - Call your local BRP dealership

417127291

Unavailable

36

Bushing

417127300

$63.99

37

Washer

503183100

$3.08

38

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

40

Spacer

417300252

$5.17

41

Spacer

417300265

$2.12

42

Spacer

504149100

$11.20

43

Shim

504112000

$6.05

44

Spacer

417300399

$16.12

46

Drive Belt

417300534

$239.97

47

BELT GUARD ASS'Y KIT - Call your local BRP dealership

860200362

Unavailable

48

PLATE - Call your local BRP dealership

417300372

Unavailable

49

Henrob Rivet

293150091

Unavailable

50

Safety Belt Guard Decal

516005509

Unavailable

51

Reinforcement

417300380

$5.17

52

Avex Rivet

390909200

Unavailable

53

Guide

417300381

$9.23

54

CVT AIR DUCT - Call your local BRP dealership

417300501

Unavailable

55

Pop Rivet 3/16"

293150103

Unavailable

57

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

Unavailable

58

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

59

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

60

Torx Screw M5 X 14

250000742

$1.20

61

Hair Pin

114045200

Unavailable

62

Velcro Strip

508000599

Unavailable

63

Racing Spring

417223610

Unavailable

54a

Decal English

516005503

Unavailable
