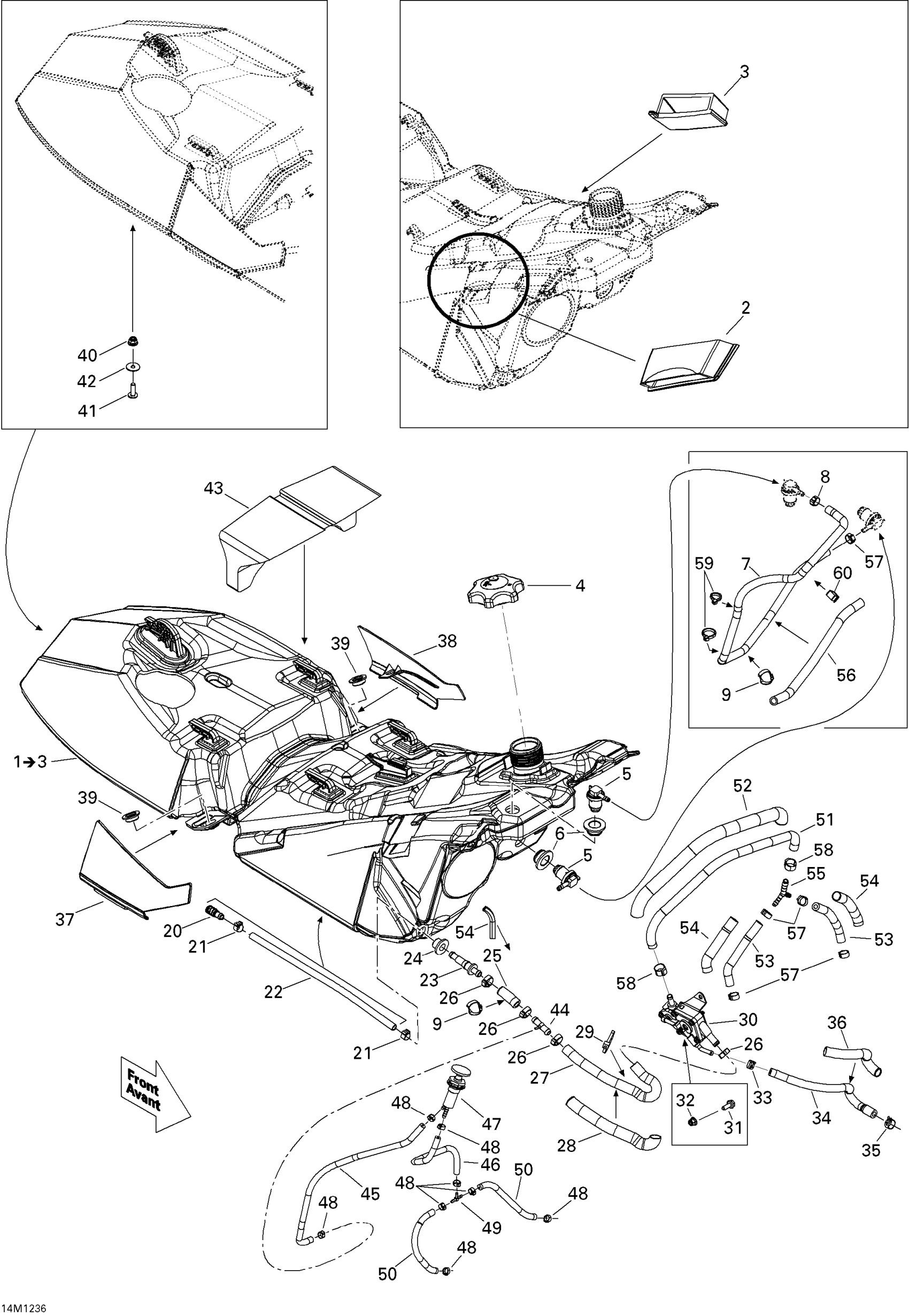

Ski-Doo MX Z X 600RS, 2012 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033697

Unavailable

2

RH Panel Clip

513033471

$6.15

3

LH Panel Clip

513033472

$5.52

4

Fuel Tank Cap

513033752

$56.12

5

Remote Vent

513033859

$18.43

6

Grommet

513033596

$18.43

7

Hose

513033565

$29.20

8

Oetiker Gear Clamp

293650025

$2.46

9

Tie-Rap 180 mm

414115200

$0.09

20

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

21

Norma Spring Clamp

513033010

$8.68

22

Polyurethane Hose 1000Mm Long

219704391

Unavailable

23

Male Connector

414872700

$1.86

24

Grommet

513033435

$3.73

25

HOSE 9.53MM ID - 40MM - Call your local BRP dealership

513033444

Unavailable

26

Crimp Clamp

293650053

$2.42

27

FORMED HOSE - Call your local BRP dealership

513033439

Unavailable

28

Tubing 16 Mm 1000Mm Long

219704408

$6.23

29

Tie-Rap 180 mm

414115200

$0.09

30

Fuel Pump

513033669

$82.28

31

Hex. Flange Screw M6 X 16

207661644

$0.61

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Spring Clamp

414415200

$0.83

34

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

35

Universal Spring Clamp

513033029

$5.11

36

Was 409901800 Tubing (13 mm)

219704400

$9.40

37

RH Cap

513033418

$12.62

38

LH Cap

513033419

$12.62

39

Shoulder Bushing

513033326

$12.62

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

41

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

42

Flat Washer

224060201

$1.15

43

FOAM - Call your local BRP dealership

513033528

Unavailable

44

T-Fitting

415119300

$3.11

45

HOSE - Call your local BRP dealership

709000665

Unavailable

46

HOSE - Call your local BRP dealership

709000665

Unavailable

47

Primer

513033441

$33.05

48

Oetiker Gear Clamp

293650043

$2.70

49

T-Fitting

414222400

$1.33

50

HOSE - Call your local BRP dealership

709000665

Unavailable

51

Hose 3000Mm Long

219704612

$79.97

52

Tubing 16 Mm 1000Mm Long

219704408

$6.23

53

Hose

513033565

$29.20

54

Was 409901800 Tubing (13 mm)

219704400

$9.40

55

Y Connector | CARB

513033672

$1.06

56

Was 409901800 Tubing (13 mm)

219704400

$9.40

57

Oetiker Gear Clamp

293650025

$2.46

58

Oetiker Clamp

293650125

$2.69

59

Tie Wrap 142 mm

293750002

$0.88

60

Clip

414227300

$1.45
