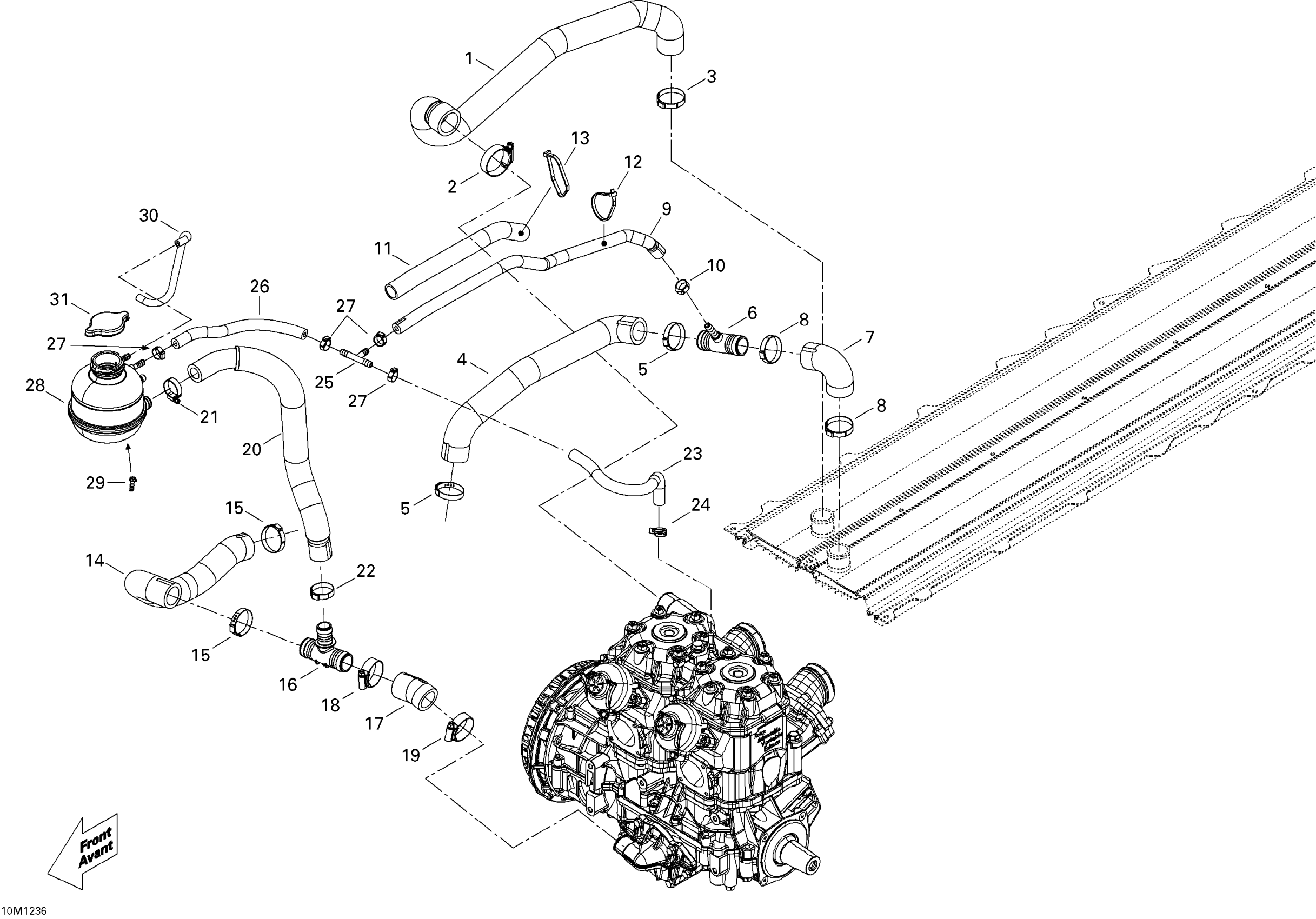

Ski-Doo MX Z X 600RS, 2012 Cooling System Diagram

#

Description
Price

1

ENGINE OUTLET HOSE - Call your local BRP dealership

509000431

Unavailable

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Oetiker Gear Clamp

509000181

$3.61

4

Radiator Hose

509000670

$34.58

5

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

6

T-Fitting

509000510

$11.52

7

Radiator Hose This part replaces 509000671.

509001066

$18.43

8

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

9

BREATHER HOSE - Call your local BRP dealership

509000503

Unavailable

10

Crimp Clamp, 15.3-706R

293650047

Unavailable

11

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

12

Tie-Rap 180 mm

414115200

$0.09

13

Tie-Rap 180 mm

414115200

$0.09

14

Radiator Hose

509000673

$22.28

15

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

16

T-Fitting

509000372

$7.87

17

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

18

Aba Gear Clamp, 26-38 MM

509000443

$5.68

19

Aba Gear Clamp, 26-38 MM

509000443

$5.68

20

FILLING HOSE - Call your local BRP dealership

509000551

Unavailable

21

Norma Gear Clamp

293650124

Unavailable

22

Crimp Clamp

293650099

Unavailable

23

BLEEDER HOSE - Call your local BRP dealership

509000518

Unavailable

24

Spring Clamp

293650210

Unavailable

25

T-Fitting | Europe

293710024

Unavailable

26

BLEEDER HOSE - Call your local BRP dealership

509000519

Unavailable

27

Oetiker Clamp

293650046

Unavailable

28

Coolant Tank

509000421

$86.89

29

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

30

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

31

Radiator Pressure Cap

509000180

Unavailable
