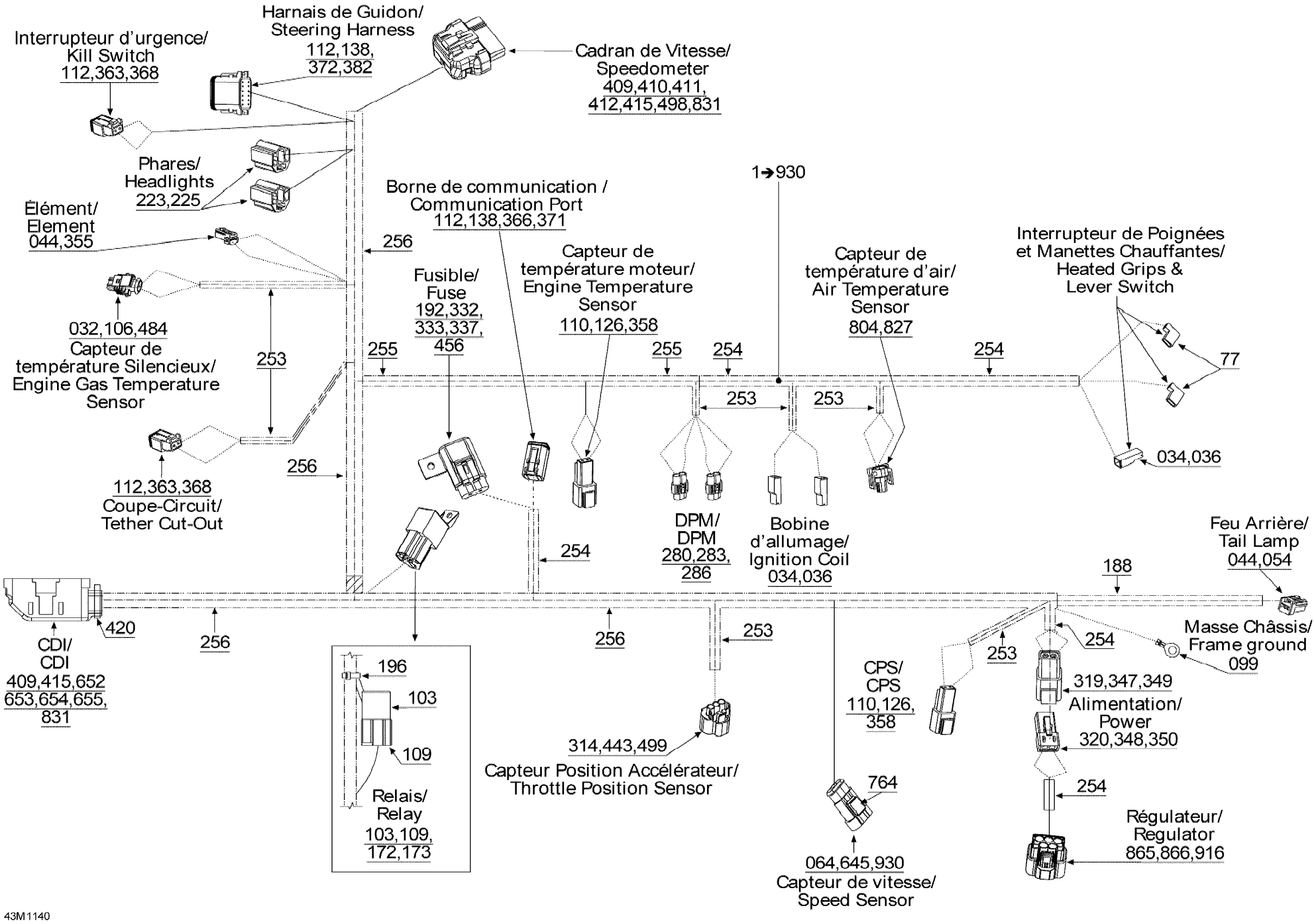

Ski-Doo MX Z X 600RS, 2011 Electrical Harness Diagram

#

Description
Price

1

MAIN HARNESS - Call your local BRP dealership | Includes 1 to TS

415129537

Unavailable

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

Unavailable

255

Was 409901800 Tubing (13 mm)

219704400

Unavailable

256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

AT

Wire Seal

710001163

Unavailable

AT

Female Terminal

710001164

Unavailable

AT

Female Terminal Housing

515176890

$11.14

BA

Female Terminal

409010100

$5.46

BA

Female Terminal Housing, 1 Circuit

409010400

$7.48

BC

Female Terminal

278000632

Unavailable

BC

Female Terminal Housing, 2 Circuits

515175670

Unavailable

BC

Female Lock, 2 Circuits

515175675

Unavailable

BM

Open Barrel

278000992

$1.79

CP

Male Terminal

278000631

$4.12

CP

Male Lock, 2 Circuits

409207500

$3.02

CP

Male Terminal Housing, 2 Circuits

515175665

$8.02

CV

Plug

515175812

Unavailable

CV

Female Housing, 24 Circuits

515175801

Unavailable

CV

Retainer Block

515175802

Unavailable

CV

Wire Seal

515175803

Unavailable

CV

Female Housing

710000399

Unavailable

CV

Female Terminal

710001131

Unavailable

DA

Plug

515175812

Unavailable

DA

Female Terminal

515175806

$0.81

DA

Tie-Rap 180 mm

414115200

$0.09

DA

Female Housing

515176221

$14.94

DA

Wire Seal

515176222

$14.97

DA

Female Terminal Housing, 36 Circuits

515176223

$12.97

DA

Terminal Support

515176224

$15.02

DA

Female Terminal

710001131

Unavailable

DI

Female Terminal

278000632

Unavailable

DI

Sealing Cap

293000052

Unavailable

DI

Male Housing, 6 Circuits

515175673

$13.05

DI

Male Wedge, 6 Circuits

515175678

Unavailable

DP1

Female Terminal

409012100

Unavailable

DP1

Seal

409012300

Unavailable

DP2

Female Terminal

409012100

Unavailable

DP2

Seal

409012300

Unavailable

EI

Male Terminal

278000631

$4.12

EI

Male Lock, 2 Circuits

409207500

$3.02

EI

Male Terminal Housing, 2 Circuits

515175665

$8.02

EL

Female Terminal

515175231

Unavailable

EL

Female Housing, 2 Circuits

515175658

Unavailable

F1

Fuse, 20 Amperes

409003900

$3.22

F1

Fuse Holder Cap

278001326

$6.03

F1

Fuse Holder

278001325

$8.57

F1

Female Terminal

710000113

Unavailable

F1

Cushion

278000805

$3.22

HG

Female Terminal

278000632

Unavailable

HG

Sealing Cap

293000052

Unavailable

HG

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

HG

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

IP

Female Terminal

409010100

$5.46

IP

Female Terminal Housing, 1 Circuit

409010400

$7.48

IP

Female Terminal

409010300

$4.12

IU

Female Terminal

278000632

Unavailable

IU

Female Terminal Housing, 2 Circuits

515175670

Unavailable

IU

Female Lock, 2 Circuits

515175675

Unavailable

NV

Housing

710000568

Unavailable

NV

Male Terminal

515176164

Unavailable

NV

Clip

710000992

$4.00

NV

Wire Seal

515176621

Unavailable

PA

Female Housing

515176908

$12.05

PA

Terminal

515176909

Unavailable

PB

Female Housing

515176908

$12.05

PB

Terminal

515176909

Unavailable

PW1

Male Terminal

515175568

$7.48

PW1

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

PW1

Male Lock, 2 Circuits

278001672

$3.02

PW2

Female Terminal

515175567

$6.03

PW2

Female Terminal Housing, 2 Circuits

278001673

$23.05

PW2

Female Lock, 2 Circuits

278001671

$3.22

R1

Relay | DS 650 X

710010053

Unavailable

R1

Female Housing, 5 Circuits

409209900

$8.98

R1

Female Terminal

561503100

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Tie Wrap 142 mm

293750002

Unavailable

RE

Connector

515176530

Unavailable

RE

Terminal

515176531

Unavailable

RE

Seal

515176594

Unavailable

SA

Female Terminal

515175231

Unavailable

SA

Female Housing, 3 Circuits

515175495

$15.35

TP

Female Terminal Housing, 3 Circuits

515176176

$15.35

TP

Female Terminal

710000335

$1.80

TP

Wire Seal

710000402

$4.42

TS

Female Terminal

278000998

$3.48

TS

Male Housing, 2 Circuits

278001005

$15.57

TS

Seal

415128501

Unavailable
