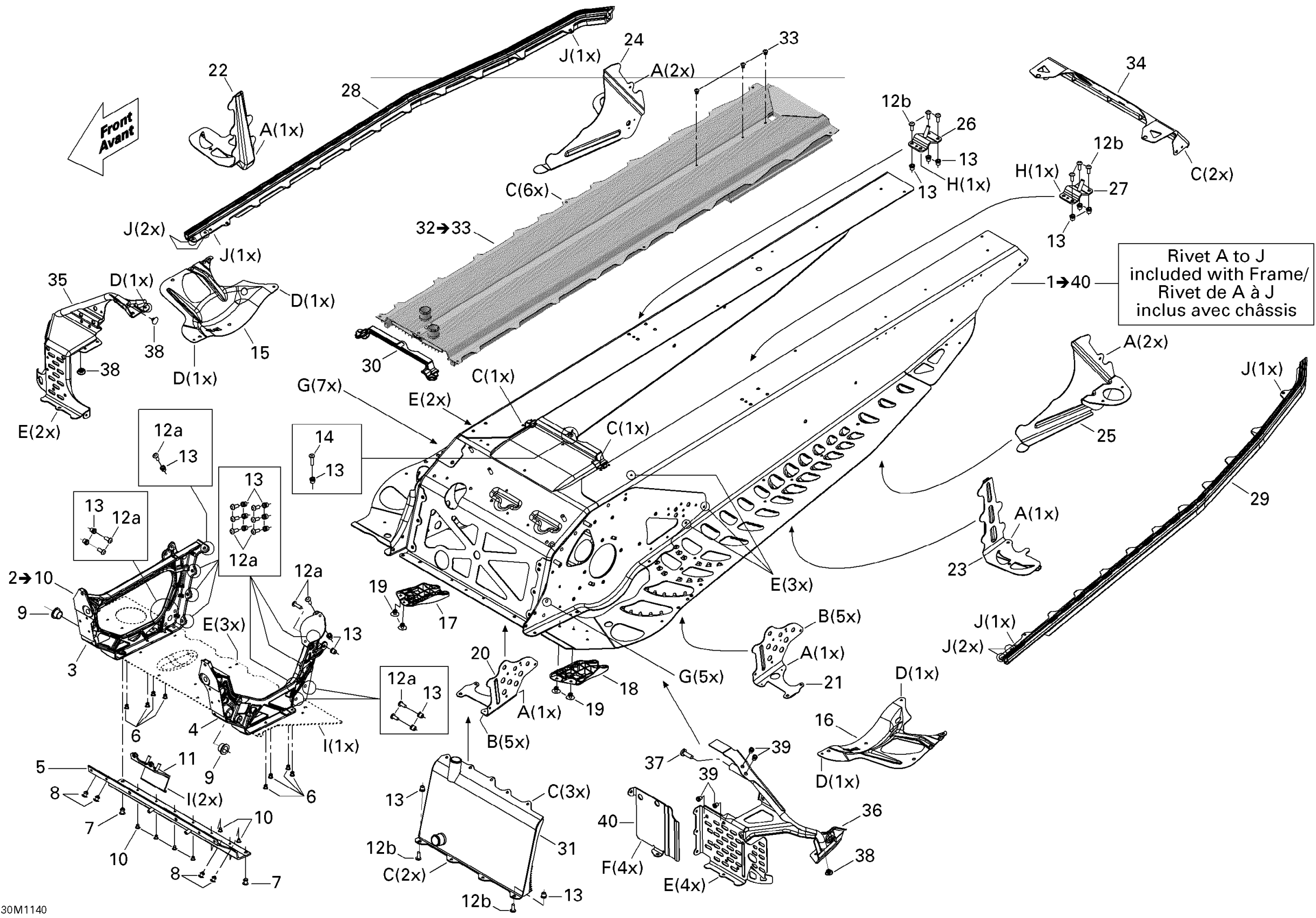

Ski-Doo MX Z X 600RS, 2011 Frame Diagram

#

Description
Price

1

FRAME ASS'Y - Call your local BRP dealership | Includes 10 to G

415129782

Unavailable

2

E Module | Includes 10n to 10at

518327567

Unavailable

3

RH Member

518326795

Unavailable

4

LH Member

518326796

$210.74

5

Front Member

518326198

$59.97

6

Stavex Rivet

293150144

Unavailable

7

Hemlock Rivet 6.5 mm

293150120

$7.23

8

Hemlock Rivet, 6.5 mm

293150119

$4.00

9

Leg Bushing

505072690

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

12a

Hex. Flange Screw M6 X 20

207662044

Unavailable

12b

Hex. Flange Screw M6 X 16

207661644

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Hex. Flange Screw M6 X 20

207662044

Unavailable

15

Foot Reinforcement RH

518326468

Unavailable

16

Foot Reinforcement LH

518326469

Unavailable

17

RH Deflector, Black Polypropylene

518325782

Unavailable

18

LH Deflector, Black Polypropylene

518325783

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

20

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

21

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

22

RH REINFORCEMENT - Call your local BRP dealership

518325747

Unavailable

23

LH REINFORCEMENT - Call your local BRP dealership

518325748

Unavailable

24

RH REAR SUPPORT - Call your local BRP dealership

518326766

Unavailable

25

LH REAR SUPPORT - Call your local BRP dealership

518326767

Unavailable

26

RH Rear Base

518325973

Unavailable

27

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

28

RH FOOT ROLLER - Call your local BRP dealership | MXZ XRS

518326282

Unavailable

29

LH Foot Roller | MXZ XRS

518326283

Unavailable

30

Seal

518326656

Unavailable

31

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

32

REAR RADIATOR - Call your local BRP dealership | Includes 1110 to 1110a

518326344

Unavailable

33

Avex Rivet

390909100

$0.29

34

Rear Cap

518327105

Unavailable

35

RH Stirup | Includes 10aa to 10ab

518328938

Unavailable

36

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

37

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

38

Full Moon Dart 5 mm

293730042

Unavailable

39

Insert M5 X 0.8

293450268

Unavailable

40

PLATE - Call your local BRP dealership

518326188

Unavailable

A

Avex Rivet

390909200

Unavailable

B

Avex Rivet

390909100

$0.29

C

Avex Rivet

390909200

Unavailable

D

Avex Rivet

390909100

$0.29

E

Stavex Rivet

293150144

Unavailable

F

Henrob Rivet

293150091

Unavailable

G

Henrob Rivet

293150146

Unavailable

H

Hemlock Rivet, 6.5 mm

293150119

$4.00

I

Hemlock Rivet, 6.4 mm

293150174

$6.43

J

Monobolt Rivet, 4.8 mm

293150191

Unavailable
